1696626-00 - Snapper Turbo Collection System for 52" Fab Mower Mounting Group (2991897) Parts Diagram

Turbo Collection System for 52" Fab Mower

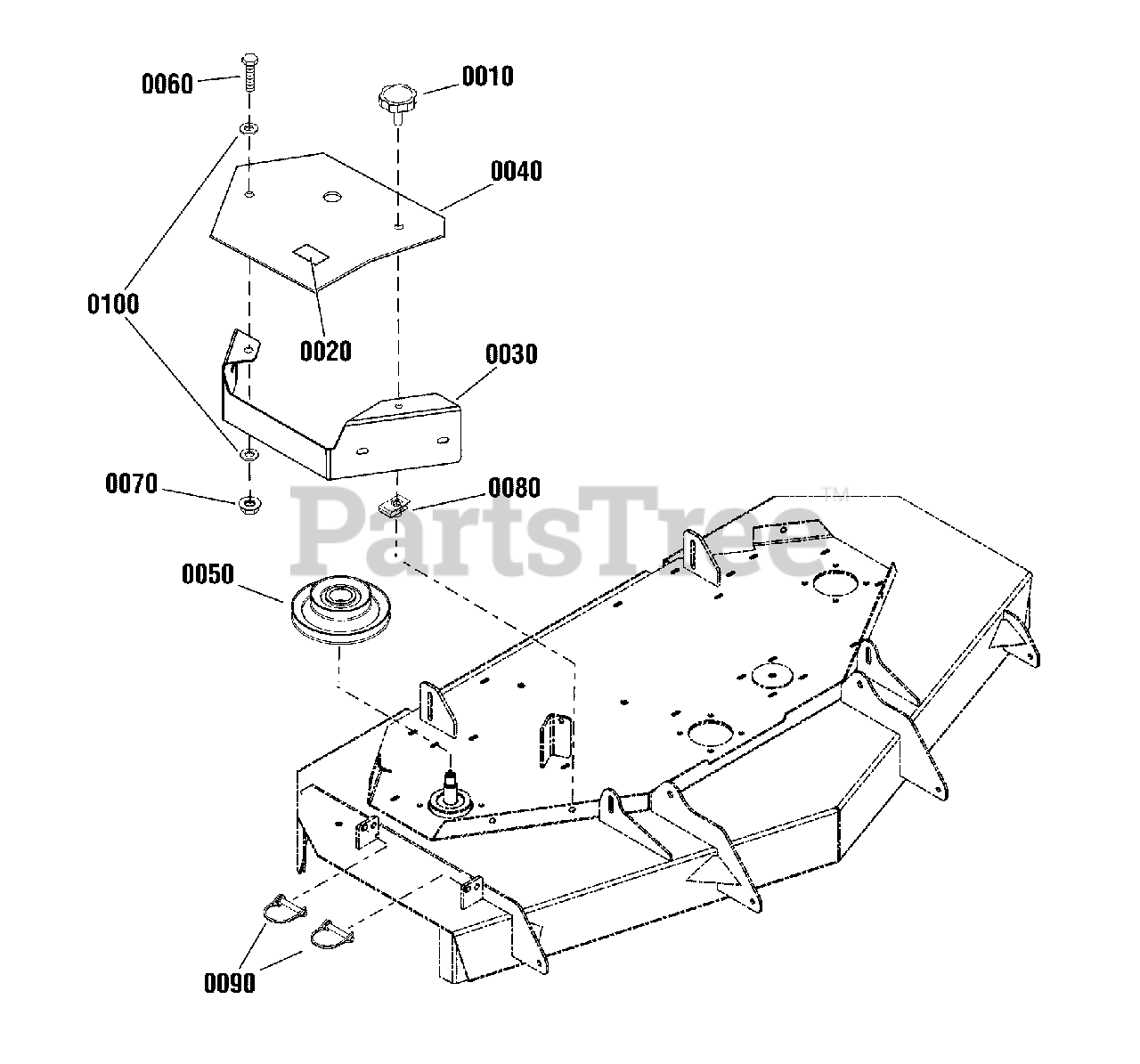

Mounting Group (2991897) Parts Diagram

  • Title
0010

Snapper Part# 5101731YP

KNOB, Rosette, 5/16-18 X 1

Note: each

Usually ships in 6 to 12 days

$

$7.83

0

0020

Snapper Part# 5103184YP

DECAL, Warning, Hand in Belt

Note: each

Usually ships in 6 to 12 days

$

$9.28

0

0030
Usually ships in 6 to 12 days

$

$43.59

0

0040

Snapper Part# 5413204AYP

PLATE, Top Guard
Usually ships in 6 to 12 days

$

$35.77

0

0050

Snapper Part# 5104476YP

PULLEY, Blower

Note: each

Usually ships in 6 to 12 days

$

$352.16

0

0060

Snapper Part# 5025011X6SM

BOLT, 5/16-18 X 3/4, G5

Note: each

Usually ships in 1 day

$

$2.74

0

0070

Snapper Part# 5025392SM

NUT, Hex, NyLock Flange, 5/16-18
(Superseded to 703115)

Note: each

Usually ships in 1 day

$

$2.40

0

0080

Snapper Part# 1935255SM

NUT, Speed, 5/16-18

Note: each

Usually ships in 1 day

$

$2.40

0

0090

Snapper Part# 5100847SM

SNAPPERPIN, 5/16 X 2

Note: each

Usually ships in 6 to 12 days

$

$12.30

0

0100

Snapper Part# 5025155SM

WASHER, 5/16
(Superseded to 703302)

Note: each

Usually ships in 1 day

$

$3.13

0
