19A70009OEM - MTD Two-Stage Snow Thrower Assembly (2009) Linkage & Controls Parts Diagram

Two-Stage Snow Thrower Assembly

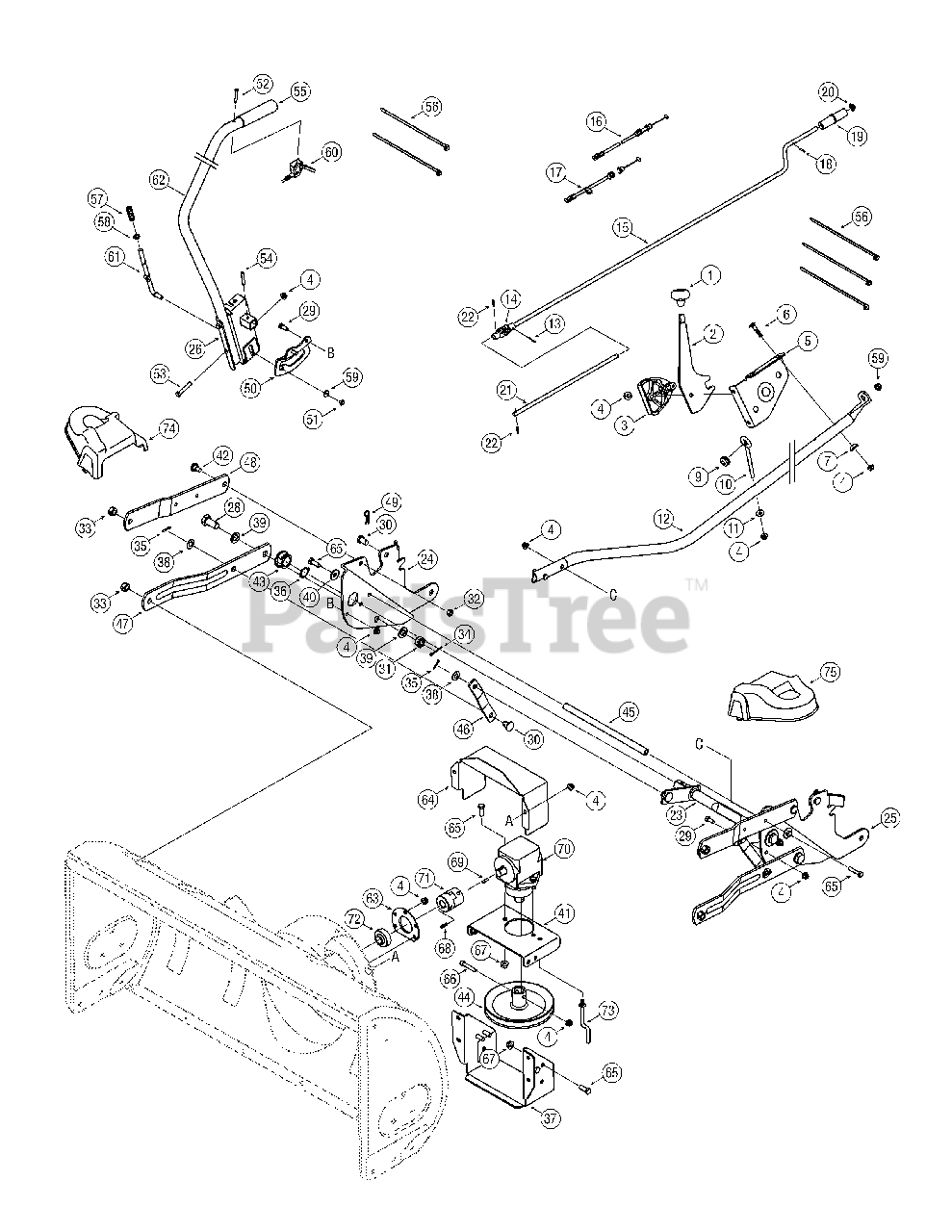

Linkage & Controls Parts Diagram

  • Title
Usually ships in 1 day

$

$7.29

0

2

MTD Part# 784-5604A-0637

Chute Tilt Handle
Usually ships in 1 day

$

$17.90

0

3

MTD Part# 731-1313C

Chute Tilt Cable Guide
Usually ships in 1 day

$

$8.39

0

4

MTD Part# 712-04063

Nylon Hex Lock Nut, 5/16-18
Usually ships in 1 day

$

$2.83

0

5

MTD Part# 603-0302-0637

Chute Tilt Bracket Assembly
(Superseded to 603-0302A-0637)
Usually ships in 5 to 10 days

$

$48.79

0

6

MTD Part# 710-0262

Carriage Bolt, 5/16-18 x 1.5
Usually ships in 1 day

$

$2.91

0

7

MTD Part# 936-0451

Saddle Washer, .32 x .93
Usually ships in 1 day

$

$3.00

0

9

MTD Part# 735-0234

Rubber Grommet , .44 x .94 x .5
Usually ships in 1 day

$

$3.60

0

10
Usually ships in 1 day

$

$5.71

0

11

MTD Part# 736-0242

Bell Washer, .340 x .872
Usually ships in 1 day

$

$3.00

0

12

MTD Part# 750-04467-0637

Support Chute Tube
Usually ships in 5 to 10 days

$

$90.05

0

13

MTD Part# 914-0507

Cotter Pin, 3/32 x .75
Usually ships in 1 day

$

$3.15

0

14

MTD Part# 984-5149

Joint Block Assembly
(Superseded to 684-04350)
Usually ships in 1 day

$

$20.42

0

15

MTD Part# 747-1201

Chute Crank Rod, .375 x 33
(Superseded to 747-1201A)
Usually ships in 5 to 10 days

$

$60.69

0

16

MTD Part# 746-1108

Chute Cable, 62"
(Superseded to 946-1108)
Usually ships in 5 to 10 days

$

$44.31

0

17

MTD Part# 746-1109

Chute Cable w/ Clip, 62"
Usually ships same day

Not available

$

$

18

MTD Part# 915-0138

Rolled Pin, 1/8 x .63
Usually ships in 1 day

$

$3.34

0

19

MTD Part# 720-0201A

Crank Knob
Usually ships in 1 day

$

$7.73

0

20

MTD Part# 926-0100

Push Cap, 3/8 ID
Usually ships same day

Not available

$

$

21

MTD Part# 747-04400

Rod, .375 x 11.375
(Superseded to 747-04400A)
Usually ships in 5 to 10 days

$

$15.52

0

22

MTD Part# 715-0129

Spirol Pin, .125 x .82
Usually ships in 5 to 10 days

$

$3.31

0

23
Usually ships in 5 to 10 days

$

$248.57

0

24

MTD Part# 783-05434-0637

RH Support Plate Assembly
Usually ships in 5 to 10 days

$

$84.44

0

25

MTD Part# 783-05435-0637

LH Support Plate Assembly
Usually ships in 5 to 10 days

$

$84.44

0

26

MTD Part# 683-04150-0637

Lift Bracket Assembly
Usually ships in 5 to 10 days

$

$58.55

0

28

MTD Part# 710-0964A

Hex Cap Screw, 5/8-18 x 1.31
Usually ships in 5 to 10 days

$

$8.03

0

29

MTD Part# 710-3008

Hex Cap Screw, 5/16-18 x .75
Usually ships in 1 day

$

$2.99

0

30

MTD Part# 911-0332

Clevis Pin, .5 x .78
Usually ships in 1 day

$

$11.88

0

31

MTD Part# 712-0386A

Slotted Hex Nut, 5/8-18
Usually ships in 5 to 10 days

$

$5.60

0

32

MTD Part# 912-3000

Hex Lock Nut, 3/8-16
Usually ships in 1 day

$

$3.09

0

33

MTD Part# 712-3022

Hex Lock Nut, 1/2-13
Usually ships in 1 day

$

$2.86

0

34

MTD Part# 914-0470

Cotter Pin, 1/8 x 1.25
Usually ships in 1 day

$

$3.09

0

35

MTD Part# 914-0474

Cotter Pin, .125 x .75
Usually ships same day

Not available

$

$

36

MTD Part# 916-0102

Snap Ring
Usually ships same day

Not available

$

$

37
Usually ships in 5 to 10 days

$

$89.30

0

38

MTD Part# 936-0272

Flat Washer, .51 x 1.0 x .060
Usually ships in 1 day

$

$3.50

0

39

MTD Part# 736-0366

Flat Washer, .64 x 1.12 x .125
Usually ships in 1 day

$

$3.07

0

40

MTD Part# 936-0452

Bell Washer, .396 x 1.14 x .095
Usually ships in 1 day

$

$3.24

0

41

MTD Part# 783-1014A-0637

Drive Mounting Bracket
Usually ships in 5 to 10 days

$

$65.58

0

42

MTD Part# 738-0234

Shoulder Screw, .5 x .29, 3/8-16
Usually ships in 1 day

$

$7.55

0

43

MTD Part# 941-0170

Flange Bearing w/ Flats
Usually ships in 1 day

$

$14.17

0

44

MTD Part# 756-1181A

Drive Pulley, 7"
Usually ships in 1 day

$

$79.71

0

45

MTD Part# 747-1192

Rod, 1/2 x 11.55
Usually ships in 5 to 10 days

$

$35.34

0

46

MTD Part# 783-0876

Link, 5.875

Variations

MTD Part# 783-0876-0637

LINK - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$28.55

0

Usually ships in 5 to 10 days

$

$28.55

0

47
Usually ships in 5 to 10 days

$

$66.13

0

48

MTD Part# 783-0878-0637

Link, 13.35
(Superseded to 783-0878B-0637)
Usually ships in 5 to 10 days

$

$39.97

0

49

MTD Part# 914-0145

Click Pin
Usually ships same day

Not available

$

$

50

MTD Part# 790-00110-0637

Snow Thrower Lift Bracket
Usually ships in 5 to 10 days

$

$28.02

0

51

MTD Part# 710-1268

Hex Index Washer Screw #10-16
Usually ships in 1 day

$

$3.09

0

52

MTD Part# 710-3143

Pan Phillips Screw, #10-24 x .75
Usually ships in 5 to 10 days

$

$8.21

0

53

MTD Part# 710-3180

Hex Cap Screw, 5/16-18 x 1.75
Usually ships in 1 day

$

$3.92

0

54

MTD Part# 915-0114

Heavy Duty Spirol Pin, 1/4 x 1.5
Usually ships in 1 day

$

$6.89

0

55

MTD Part# 720-0274

Handle Grip
Usually ships in 1 day

$

$8.00

0

56

MTD Part# 725-0157

Cable Tie
Usually ships in 1 day

$

$2.74

0

57

MTD Part# 932-0306A

Compression Spring
Usually ships in 1 day

$

$6.09

0

58

MTD Part# 936-0140

Flat Washer, .385 x .62 x .063
Usually ships same day

Not available

$

$

59

MTD Part# 936-0400

Flat Washer, .194 x .62 x .063
Usually ships in 5 to 10 days

$

$3.66

0

60

MTD Part# 746-1103A

Lift Cable, 42" w/ Trigger Control
(Superseded to 946-1103A)
Usually ships same day

Not available

$

$

61

MTD Part# 747-1203

Lift Index Rod
Usually ships in 1 day

$

$38.74

0

62

MTD Part# 750-1221-0637

Lift Handle Tube
Usually ships in 5 to 10 days

$

$211.29

0

63

MTD Part# 05931A

Bearing Housing, 1.85 ID
Usually ships in 5 to 10 days

$

$7.73

0

64
Usually ships in 5 to 10 days

$

$25.10

0

65

MTD Part# 710-0514

Hex Cap Screw, 3/8-16 x 1.0
Usually ships in 1 day

$

$3.01

0

66

MTD Part# 710-3251

Socket Head Cap Screw
Usually ships in 1 day

$

$4.37

0

67

MTD Part# 712-04065

Flange Lock Nut, 3/8-16
Usually ships in 1 day

$

$2.92

0

68

MTD Part# 914-0122

Square Key, 3/16 x .75
Usually ships in 5 to 10 days

$

$2.47

0

69

MTD Part# 914-0126

Hi-pro Key, 3/16 x .75
Usually ships in 1 day

$

$3.35

0

70

MTD Part# 917-1714A

Right Angle Drive
(Superseded to 917-1714B)
Usually ships in 1 day

$

$527.24

0

71
Usually ships in 5 to 10 days

$

$120.15

0

72

MTD Part# 941-0309

Flange Ball Bearing, .75 x 1.85
Usually ships in 1 day

$

$55.25

0

73

MTD Part# 747-1257

Belt Keeper Rod
Usually ships in 5 to 10 days

$

$15.34

0

74

MTD Part# 731-05980

Steering Linkage Cover RH
Usually ships same day

Not available

$

$

75

MTD Part# 731-05981

Steering Linkage Cover LH
Usually ships same day

Not available

$

$

MTD Part# 941-0475

Plastic Bushing

Note: Not Shown

Usually ships in 1 day

$

$2.96

0

MTD Part# 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

Note: Not Shown

Usually ships in 1 day

$

$3.00

0
