20433 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) Engine Assembly Parts Diagram

Walk-Behind Mower

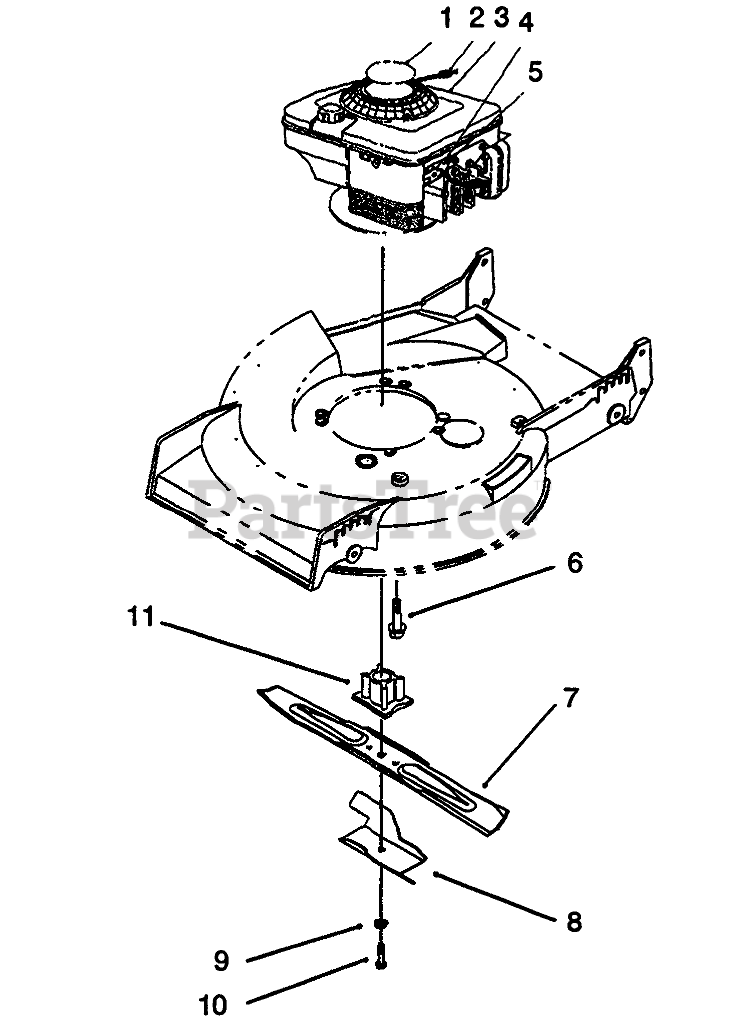

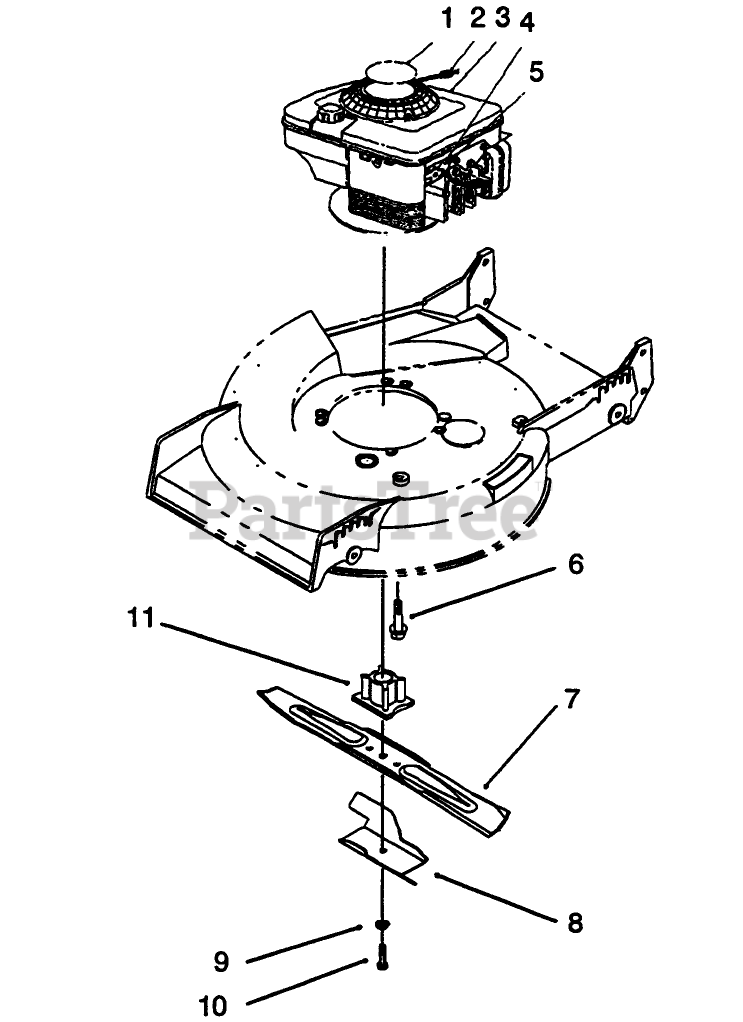

Engine Assembly Parts Diagram

  • Title

1

Toro 92-2294

DECAL-ENGINE F/W ENGINE

$16.99

$

Usually ships in 3-6 days

0

2

Toro 2210-316

STOP-ROPE

Note: Provided with Engine

$8.49

$

Usually ships in 3-6 days

0

3

Engine

$

$

Not available

4

Toro 2210-249

CLAMP-CASING

Note: Provided with Engine

$

$

Not available

5

Toro 2210-313

See Supercession: 86-7990
(Superseded to 86-7990)

Note: Provided with Engine

$3.99

$

Usually ships in 3-6 days

0

6

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 8

0

7

Toro 14-9419

See Supercession: 91-2256-03
(Superseded to 91-2256-03)

$34.99

$

In Stock, only 2 left!

0

8

Toro 92-1599

See Supercession: 92-1599-03
(Superseded to 92-1599-03)

$94.99

$

Usually ships in 3-6 days

0

9

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

10

Toro 26-0670

SCREW-BLADE

$

$

Not available

11

Toro 62-7540

BLADE RETAINER

$107.99

$

Usually ships in 3-6 days

0
