20766 BC - Toro 53cm Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Engine Assembly Parts Diagram

53cm Recycler Walk-Behind Mower

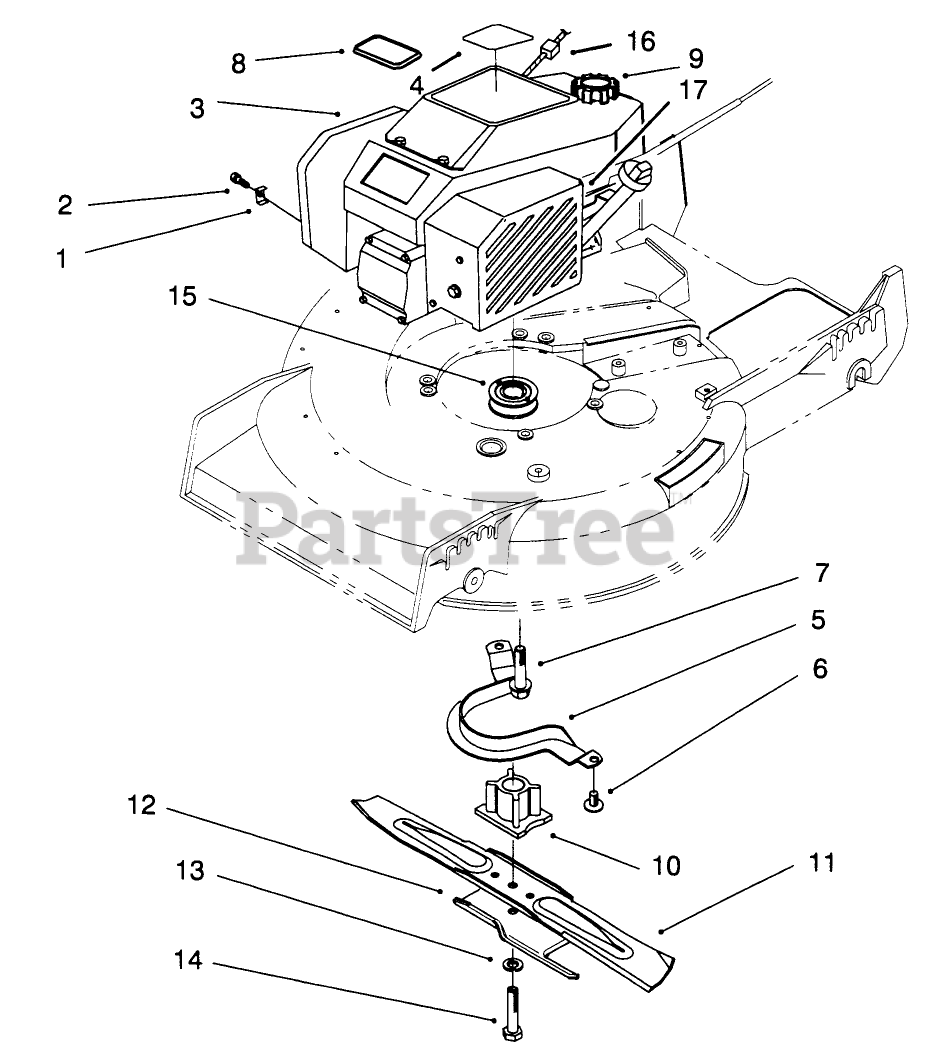

Engine Assembly Parts Diagram

  • Title

1

Toro 2210-249

CLAMP-CASING

$

$

Not available

2

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.99

$

Usually ships in 3-6 days

0

3

Toro 77-8952

DISCONTINUED

$

$

Not available

4

Toro 93-4355

DISCONTINUED

$

$

Not available

5

Toro 66-0570

See Supercession: 66-0570-03
(Superseded to 66-0570-03)

$15.99

$

In Stock, only 1 left!

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 11

0

7

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

8

Toro 92-2289

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

9

Toro 110352

DISCONTINUED

$

$

Not available

10

Toro 62-7540

BLADE RETAINER

$107.99

$

Usually ships in 3-6 days

0

11

Toro 14-9419

See Supercession: 91-2256-03
(Superseded to 91-2256-03)

$34.99

$

In Stock, only 2 left!

0

12

Toro 92-1599

See Supercession: 92-1599-03
(Superseded to 92-1599-03)

$94.99

$

Usually ships in 3-6 days

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

14

Toro 26-0670

SCREW-BLADE

$

$

Not available

15

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

16

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

17

Toro 77-9550

COVER - BRAKE F/W

$

$

Not available
