20903 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

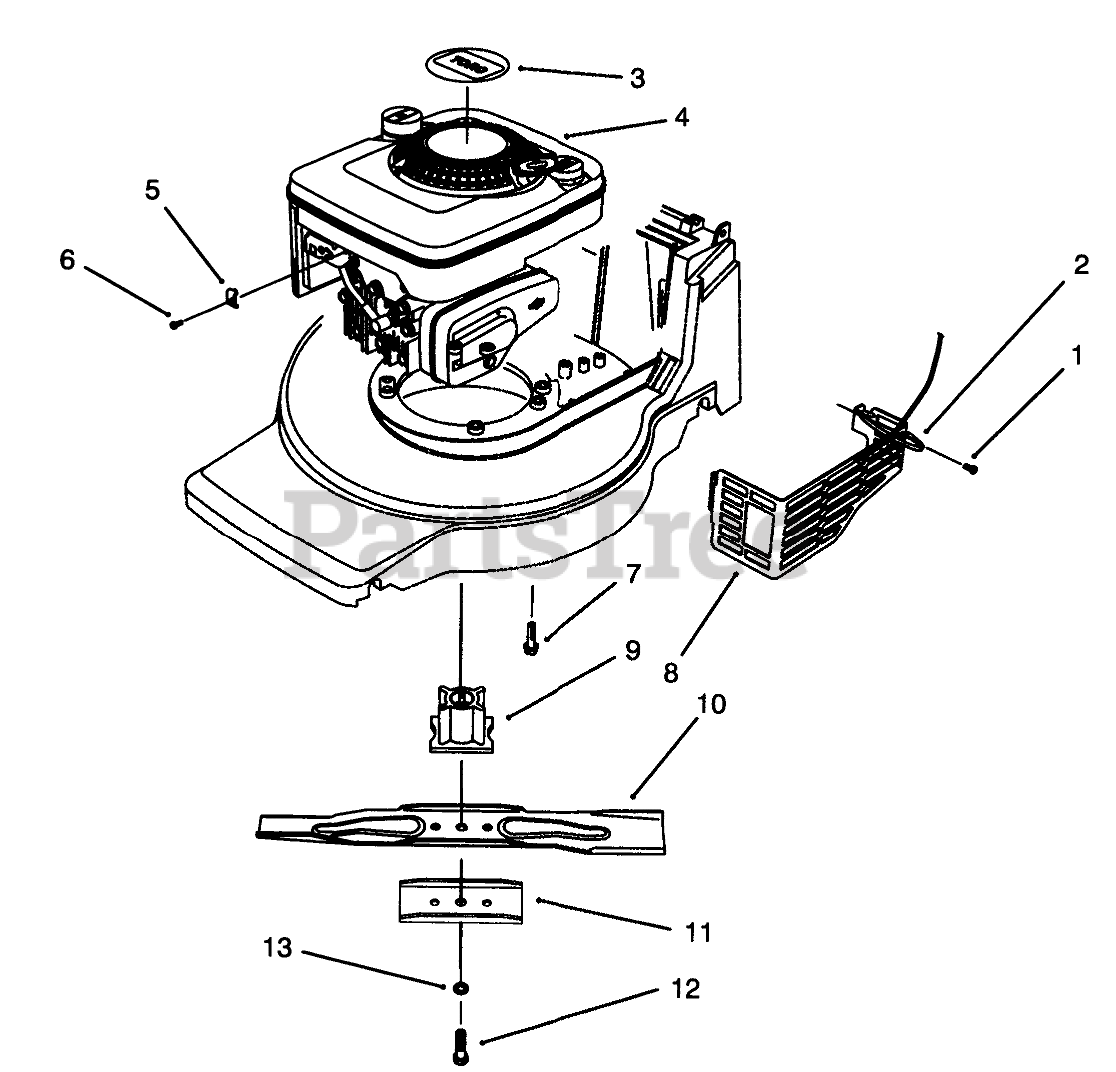

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

2

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

3

Toro 92-8655

DECAL - RECOIL

$

$

Not available

4

Engine-B & S Quantum

$

$

Not available

5

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

6

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

7

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 92-7852

SHIELD - MUFFLER

$

$

Not available

9

Toro 71-7940

BLADE RETAINER - 25 MM

$

$

Not available

10

Toro 92-9813

Blade
(Superseded to 92-9813-03)

$71.99

$

Usually ships in 3-6 days

0

11

Toro 92-9812

Stiffener Blade
(Superseded to 92-9812-03)

$21.99

$

Usually ships in 3-6 days

0

12

Toro 26-0672

BOLT-BLADE

$6.99

$

Usually ships in 3-6 days

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 4 left!

0
