2166 (13A-214G100) - Cub Cadet Garden Tractor Hydro Transmission 618-04110 Parts Diagram

Garden Tractor

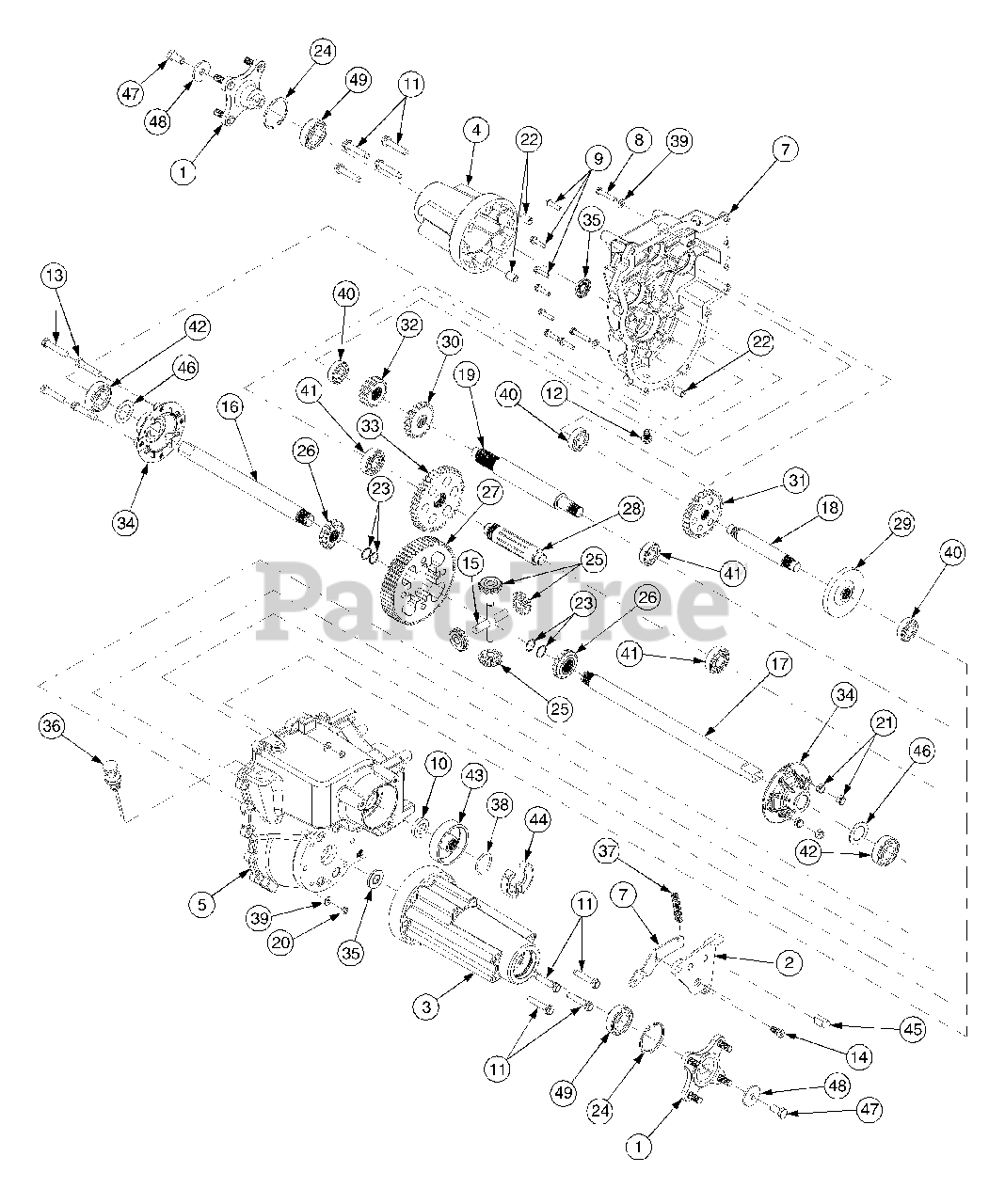

Hydro Transmission 618-04110 Parts Diagram

  • Title

1

Cub Cadet 618-04115

Hub Assembly, Wheel
(Superseded to 918-04317)

$123.99

$

In Stock, only 1 left!

0

2

Cub Cadet 618-3060

Plate Assembly, Brake
(Superseded to 918-3060)

$

$

Not available

3

Cub Cadet 619-0056

Axle Housing, RH

$

$

Not available

4

Cub Cadet 619-0057

Axle Housing, LH

$

$

Not available

5

Cub Cadet 719-04078

Transmission Housing, RH

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey

$70.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 719-04077

Transmission Housing, LH
(Superseded to 919-04077)

$

$

Not available

7

Cub Cadet 703-2191

Brake Arm

$

$

Not available

8

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 x 1.5

$5.99

$

In Stock, Qty 7

0

9

Cub Cadet 710-0788

Screw, Hex Wash Hd Tap, 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

10

Cub Cadet 721-3029

Seal, Shift Shaft
(Superseded to 921-3029)

$9.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-1008

Screw, TT, 3/8-16 x 1.875

$5.99

$

In Stock, Qty 8

0

12

Cub Cadet 710-1633

Screw, Plug, M14 x 1.5 x .827

$15.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 x 2.0 GR5

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3262

Screw, Cap, 3/8-16 x .750

$

$

Not available

15

Cub Cadet 711-1052A

Shaft, Cross, .500 x 3.005

$35.99

$

In Stock, only 3 left!

0

16

Cub Cadet 711-04164

Shaft, Axle, 1.00 x 12.07
(Superseded to 911-04164)

$

$

Not available

17

Cub Cadet 711-04211

Shaft, Axle, 1.00 x 15.73
(Superseded to 911-04211)

$

$

Not available

18

Cub Cadet 711-04210

Shaft, Drive

$

$

Not available

19

Cub Cadet 711-04209

Shaft, Intermediate

$

$

Not available

20

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.99

$

In Stock, only 4 left!

0

21

Cub Cadet 712-3020

Nut, Hex Insert Lock, 3/8-16 GR5
(Superseded to 912-3020)

$6.99

$

In Stock, Qty 9

0

22

Cub Cadet 715-3045

Dowel Bushing
(Superseded to 915-3045)

$10.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 716-04032

Ring, Retaining, .938

$8.99

$

In Stock, only 2 left!

0

24

Cub Cadet 716-0204

Ring, Retaining,

$7.49

$

In Stock, Qty 20+

0

25

Cub Cadet 717-1446

Gear, Miter, 10T
(Superseded to 917-1446B)

$17.99

$

In Stock, Qty 15

0

26

Cub Cadet 717-04102

Gear, Miter, 14T
(Superseded to 917-04102)

$24.99

$

In Stock, Qty 9

0

27

Cub Cadet 717-1568

Gear, Differential Spur, 60T
(Superseded to 917-1568)

$162.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 717-3346

Shaft, Output, 9T

$

$

Not available

29

Cub Cadet 717-3347

Gear, Bevel, 36T

$

$

Not available

30

Cub Cadet 717-04111

Gear, Spur, 18T

$

$

Not available

31

Cub Cadet 717-3388

Gear, Spur, 27T

$

$

Not available

32

Cub Cadet 717-3391

Gear, Spur, 16T

$

$

Not available

33

Cub Cadet 717-3392

Gear, Spur, 42T

$

$

Not available

34

Cub Cadet 719-0375A

Housing, Differential, RH
(Superseded to 919-0375A)

$53.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 721-04031

Seal, Oil, 1.0 x 1.499
(Superseded to 921-04031)

$11.99

$

In Stock, Qty 17

0

36

Cub Cadet 727-3085

Dipsick, Oil
(Superseded to 927-3085)

$

$

Not available

37

Cub Cadet 732-0152

Spring, Compression

$5.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 732-3077

Spring, Brake Shoe

$2.99

$

In Stock, only 1 left!

0

39

Cub Cadet 736-0463

Washer, Flat, .25 x .630 x .0515

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 741-0361

Bearing, Ball, 17 ID x 40 OD x 12
(Superseded to 941-0361)

$52.99

$

In Stock, only 2 left!

0

41

Cub Cadet 741-3057

Bearing, Ball, 6204
(Superseded to 941-3057)

$40.99

$

In Stock, Qty 9

0

42

Cub Cadet 741-3114

Bearing, Ball, 6205-1

$27.99

$

In Stock, Qty 20+

0

43

Cub Cadet 761-3019

Drum, Brake

$24.99

$

In Stock, only 1 left!

0

44

Cub Cadet 761-3020

Brake, Shoe
(Superseded to 961-3020)

$

$

Not available

45

Cub Cadet 761-3028

Brake, Actuator

$

$

Not available

46

Cub Cadet 736-0745

Washer, Flat, 1.010 x .56 x .060

$13.99

$

In Stock, Qty 15

0

47

Cub Cadet 710-3119

Screw, Hex Lock, 3/8-16 x .75 GR5

$7.49

$

In Stock, Qty 18

0

48

Cub Cadet 736-0227

Washer, Flat, .39 x 1.5 x 1.34

$6.99

$

In Stock, Qty 9

0

49

Cub Cadet 741-0681

Bearing, Ball

$

$

Not available
