2185 (136-288-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Implement Lift Hanger Parts Diagram

Garden Tractor

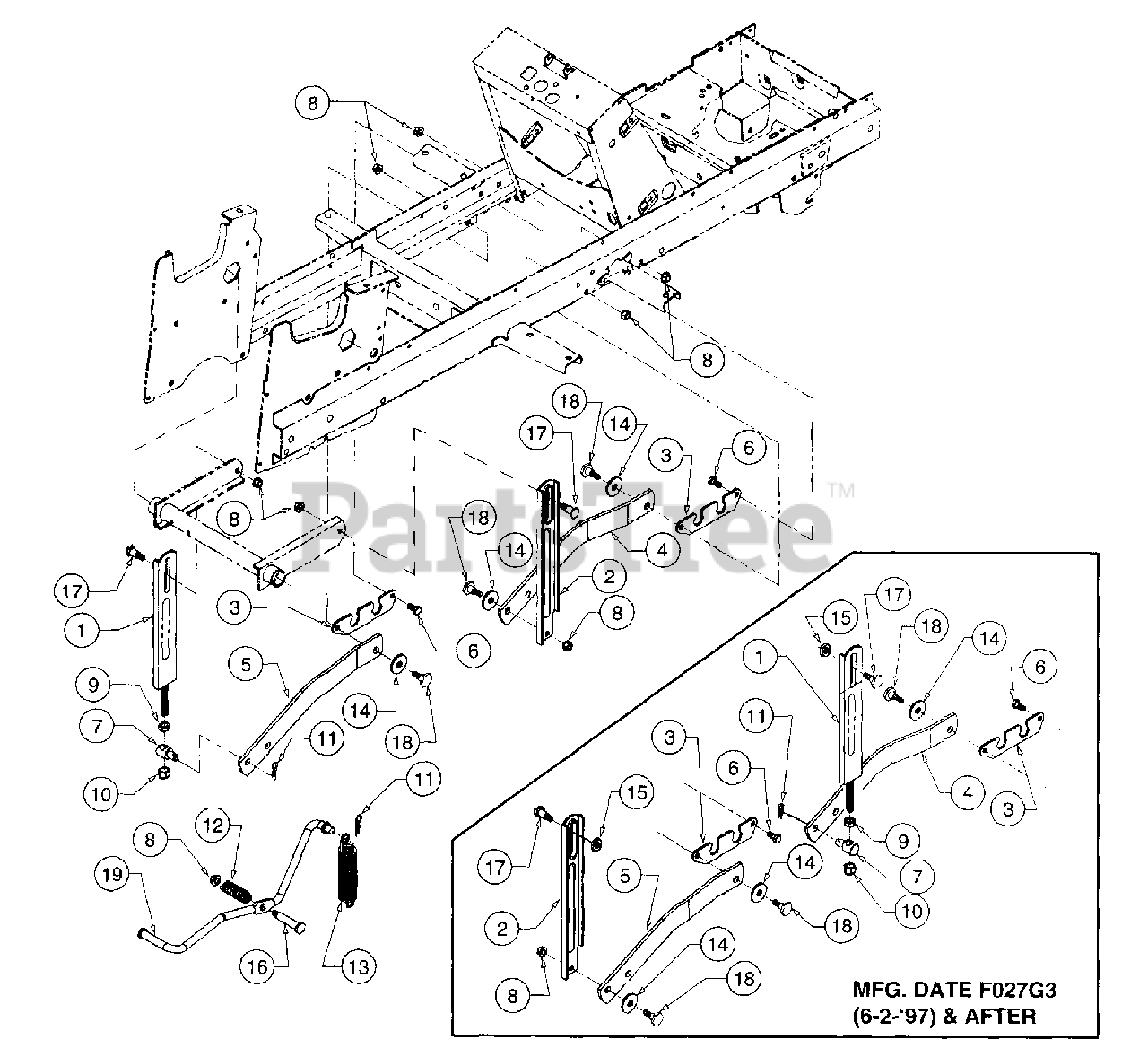

Implement Lift Hanger Parts Diagram

  • Title

1

Cub Cadet 603-0058

Bracket, LH Hanger Moved to RH side - Mfg.
(Superseded to 603-0058-0716)

Note: Date F027G3 (6-02-'97) & After

Variations

Cub Cadet 603-0058-0716

BRACKET ASSY - CUB YELLOW-99 (0716)

$75.99

$

Usually ships in 3-6 days

0

$75.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2234

Bracket, RH Hanger Moved to LH side - Mfg.

Note: Date F027G3 (6-02-'97) & After

Variations

Cub Cadet 703-2234-4021

BRACKET ASSY - CUB YELLOW 2 (4021)

$

$

Not available

$

$

3

Cub Cadet 703-2804

Plate, Bearing Mounting

$14.99

$

In Stock, Qty 6

0

4

Cub Cadet 703-2832

Link,RH Lift

Variations

Cub Cadet 703-2832-0716

LINK-LIFT R/H - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-2832-0637

Lift Link, RH - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-2833

Link, LH Lift

Variations

Cub Cadet 703-2833-0637

LINK-LIFT L/H - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2833-0716

LINK-LIFT L/H - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

Cub Cadet 710-3000

Screw, Hex Cap,3/8 - 16 x.75 GR5
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

7

Cub Cadet 711-3319

Ferrule, Adjustment
(Superseded to 911-3319)

$26.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0431

Nut,Hex Flange Lock,3/-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3048

Nut,Hex Jam, 1/2 - 13 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3083

Nut,Hex Insert Lock, 1/2 - 13

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0145

Pin,Internal Cotter

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 732-3094

Spring, Compression, .63 ID x 2.0
(Superseded to 932-3094)

$9.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-3120A

Spring, Extension, 1.0 OD x 6.42 Lg, 43 Coils, Light Duty 46" Deck

$29.99

$

In Stock, only 1 left!

0

Cub Cadet 732-3126

Spring, Extension, .91 OD x 7.33 Lg, 46 Coils, Heavy Duty 48" Deck
(Superseded to 932-3126)

$20.99

$

In Stock, Qty 10

0

14

Cub Cadet 736-3125

Washer, Flat,.50 x 1.5 x .15 Mfg.

Note: Date F017G3 & Before

$

$

Not available

Cub Cadet 736-0326

Washer, Flat,51 x 1.0 x .125 Mfg.

Note: Date F027G3 & After

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-3069

Washer, Flat,.531 x .875 x .15 Mfg.

Note: Date F027G3 & After

$3.49

$

In Stock, only 1 left!

0

16

Cub Cadet 738-0129

Bolt, Shoulder

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet 738-0430

Bolt, Shoulder

$10.99

$

In Stock, Qty 5

0

18

Cub Cadet 738-0507B

Bolt, Shoulder

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 747-3236

Rod, RH Lift Assist
(Superseded to 747-3236A)

$77.99

$

Usually ships in 3-6 days

0
