22-13KE02 (252-H) - Toro Yard Tractor (1989) ATTACHMENT LIFT AND MOWER BELT TENSIONER Parts Diagram

Yard Tractor

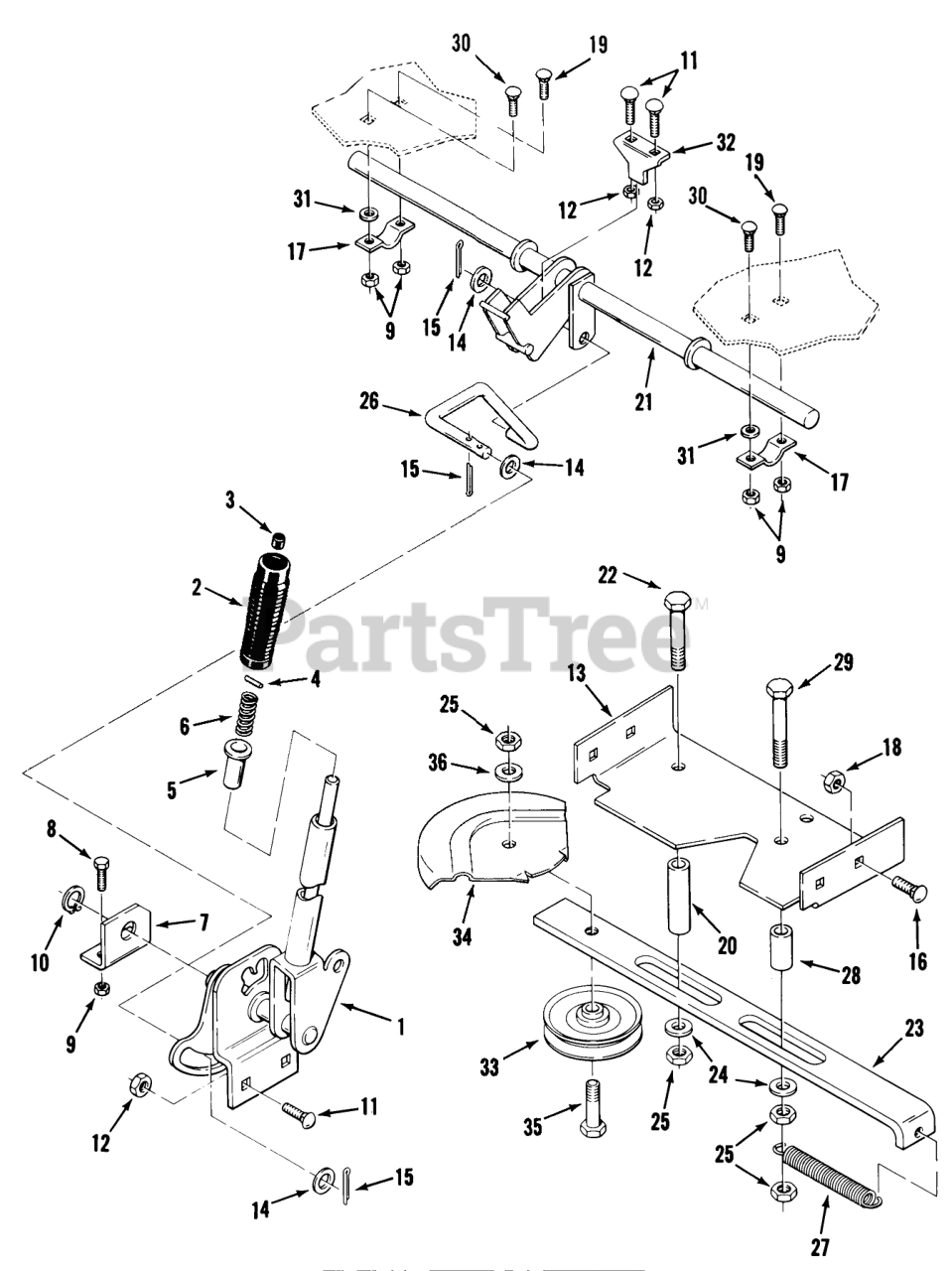

ATTACHMENT LIFT AND MOWER BELT TENSIONER Parts Diagram

  • Title

1

Toro 109170

Lift Lever

$

$

Not available

2

Toro 6542

HANDGRIP

$14.99

$

Usually ships in 3-6 days

0

3

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

4

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 4 left!

0

5

Toro 8130

RETAINER-SPRING

$19.99

$

Usually ships in 3-6 days

0

6

Toro 3624

SPRING-COMPRESSION

$4.99

$

In Stock, only 2 left!

0

7

Toro 109177

BRACKET-INNER R

$

$

Not available

8

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

9

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

10

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

11

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

12

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

13

Toro 114646

ASS'Y-FRAME BRACE R

$91.99

$

Usually ships in 3-6 days

0

14

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

15

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

17

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

18

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

19

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

20

Toro 114512

SPACER-2.0 LG R

$

$

Not available

21

Toro 110181

ASSY REAR LIFT R

$

$

Not available

22

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 14

0

23

Toro 114644

Bar

$

$

Not available

24

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

25

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

26

Toro 111766

ROD LIFT R

$

$

Not available

27

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, Qty 14

0

28

Toro 114512

SPACER-2.0 LG R

$

$

Not available

29

Toro 908042

Screw-Hex. Hd.
(Superseded to 323-14)

$3.99

$

In Stock, Qty 18

0

30

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 12

0

31

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

32

Toro 111089

BRACKET STOP

$

$

Not available

33

Toro 109823

PULLEY IDLER

$

$

Not available

34

Toro 114640

GUARD-IDLER PULLE R

$

$

Not available

35

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

36

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0
