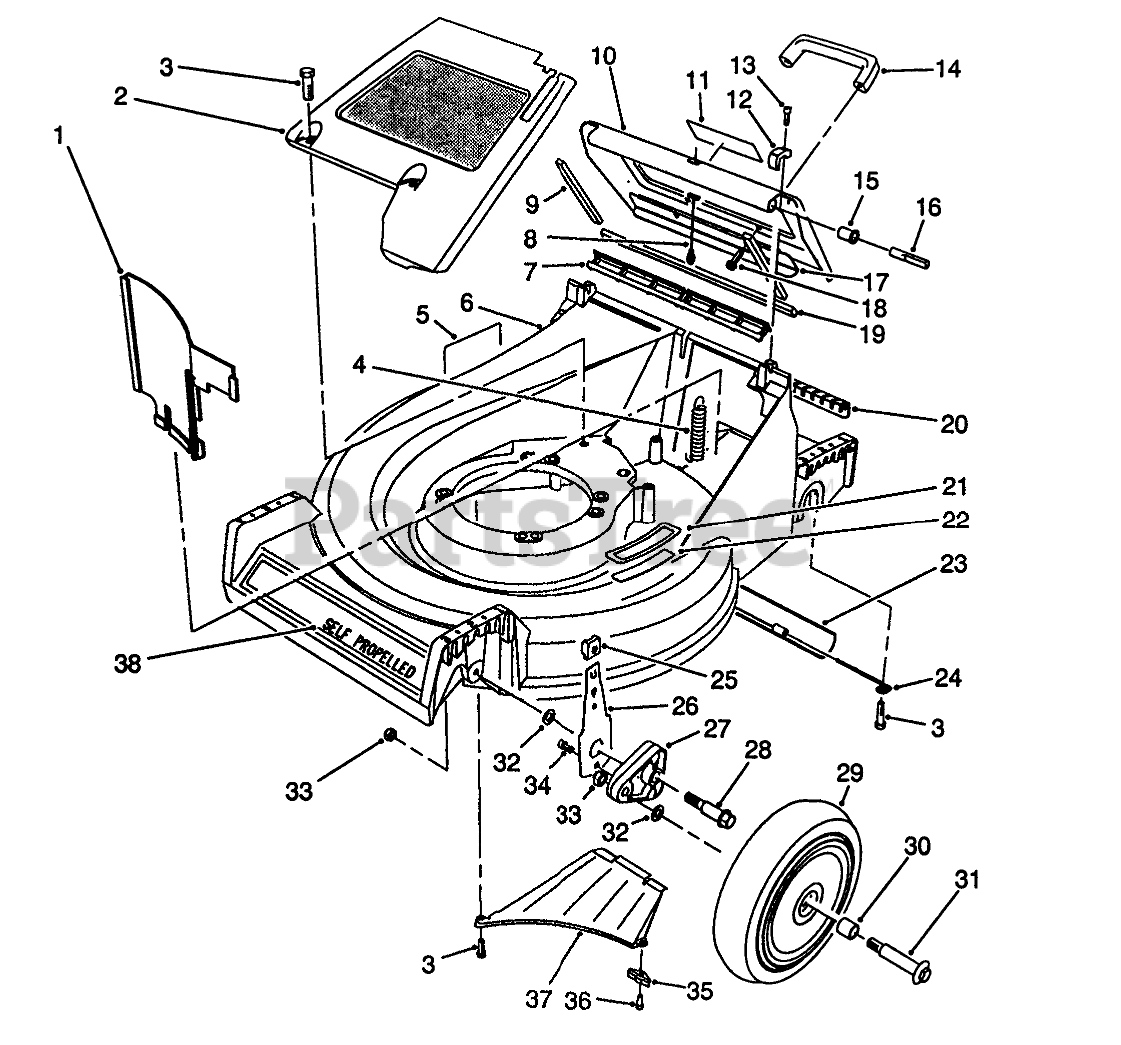

26624 C - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 66-0020

PANEL-VERTICAL
Usually ships same day

Not available

$

$

2

Toro Part# 65-5660

PaneI-Screen
(Superseded to 65-5660-03)
Usually ships in 5 to 8 days

$

$37.93

0

3

Toro Part# 32144-70

SCREW-HWHTF
Usually ships in 1 day

$

$1.81

0

4

Toro Part# 65-5360

EXTENSION-SPRING
Usually ships in 5 to 8 days

$

$18.81

0

5

Toro Part# 43-8480

DECAL-DANGER
Usually ships in 1 day

$

$5.18

0

Toro Part# 56-6270

DECAL-DANGER
Usually ships in 5 to 8 days

$

$6.59

0

6

Toro Part# 13-4689

Housing-21 " (Incl. Ref. #5, 21 & 22) (Model No. 26624)
Usually ships same day

Not available

$

$

Toro Part# 13-5869

Housing-21" (Incl. Ref. #5, 21 & 22) (Model No. 26624C)
Usually ships same day

Not available

$

$

7

Toro Part# 65-5160

DOOR SEAL
Usually ships same day

Not available

$

$

8

Toro Part# 65-5370

DOOR CABLE
Usually ships in 1 day

$

$12.79

0

9

Toro Part# 65-5480

DOOR SIDE SEAL
Usually ships same day

Not available

$

$

10

Toro Part# 13-2189

Door-Discharge (Incl. Ref. #9, 11, 17 & 19) (Model No. 26624)
Usually ships same day

Not available

$

$

Toro Part# 13-5889

Door-Discharge (Incl. Ref. #9, 11, 17 & 19) (Model No. 26624C)
Usually ships same day

Not available

$

$

11

Toro Part# 63-9050

DECAL - WARNING
Usually ships same day

Not available

$

$

Toro Part# 68-9570

Decal-Warning
(Superseded to 71-8370)
Usually ships same day

Not available

$

$

12

Toro Part# 65-5140

HINGE CLAMP
Usually ships same day

Not available

$

$

13

Toro Part# 65-5210

SCREW-HSH
Usually ships in 5 to 8 days

$

$3.47

0

14

Toro Part# 65-5100

HANDLE-DOOR
Usually ships in 5 to 8 days

$

$7.85

0

15

Toro Part# 65-5460

DOOR BUSHING
Usually ships in 5 to 8 days

$

$2.44

0

16

Toro Part# 65-5290

HINGE PIN
Usually ships same day

Not available

$

$

17

Toro Part# 66-0610

DOOR - BRACE
Usually ships same day

Not available

$

$

18

Toro Part# 46-8091

SCREW-HWH
Usually ships in 1 day

$

$1.11

0

19

Toro Part# 65-5490

DOOR END SEAL
Usually ships in 5 to 8 days

$

$25.68

0

20

Toro Part# 65-5150

ACCESS COVER
Usually ships in 5 to 8 days

$

$3.23

0

21
Usually ships same day

Not available

$

$

22

Toro Part# 46-7370

STEP PAD DECAL
Usually ships in 5 to 8 days

$

$19.15

0

Toro Part# 62-3950

DECAL - STEP PAD INT'L
Usually ships in 5 to 8 days

$

$2.69

0

23

Toro Part# 65-5350

TRAILING SHIELD
Usually ships in 5 to 8 days

$

$35.58

0

24

Toro Part# 66-0150

LH SHIELD HANGER
Usually ships same day

Not available

$

$

Toro Part# 66-0140

RH SHIELD HANGER
Usually ships same day

Not available

$

$

25
Usually ships in 1 day

$

$4.46

0

26

Toro Part# 66-0540

FRONT SPRING ARM ASM
Usually ships in 5 to 8 days

$

$13.56

0

27

Toro Part# 66-0580

ARM-PIVOT, FRONT
Usually ships in 1 day

$

$14.52

0

28

Toro Part# 66-0560

BOLT-SHOULDER
Usually ships in 1 day

$

$3.34

0

29

Toro Part# 11-9509

Wheel & Tire Assembly (Incl. Ref. #30)
(Superseded to 51-2751)
Usually ships in 1 day

$

$25.70

0

30
Usually ships in 1 day

$

$2.23

0

31

Toro Part# 27-6231

WHEEL BOLT
Usually ships in 1 day

$

$4.01

0

32
Usually ships in 1 day

$

$1.38

0

33

Toro Part# 52-3620

Nut
(Superseded to 32153-11)
Usually ships in 1 day

$

$3.53

0

34

Toro Part# 65-5220

SCREW-HSH, THREAD FORMING
Usually ships in 5 to 8 days

$

$2.86

0

35

Toro Part# 66-0640

Bracket-Discharge
Usually ships same day

Not available

$

$

36

Toro Part# 65-5221

SCREW-HWHTF
Usually ships in 5 to 8 days

$

$1.61

0

37

Toro Part# 65-5010

Ramp Discharge
(Superseded to 65-5010-03)
Usually ships same day

Not available

$

$

38

Toro Part# 66-0460

DECAL - DECK
Usually ships same day

Not available

$

$

Toro Part# 70-7590

DECAL - 53 CM
Usually ships same day

Not available

$

$
