26631 BC - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) ENGINE GTS 150 Parts Diagram

Walk-Behind Mower

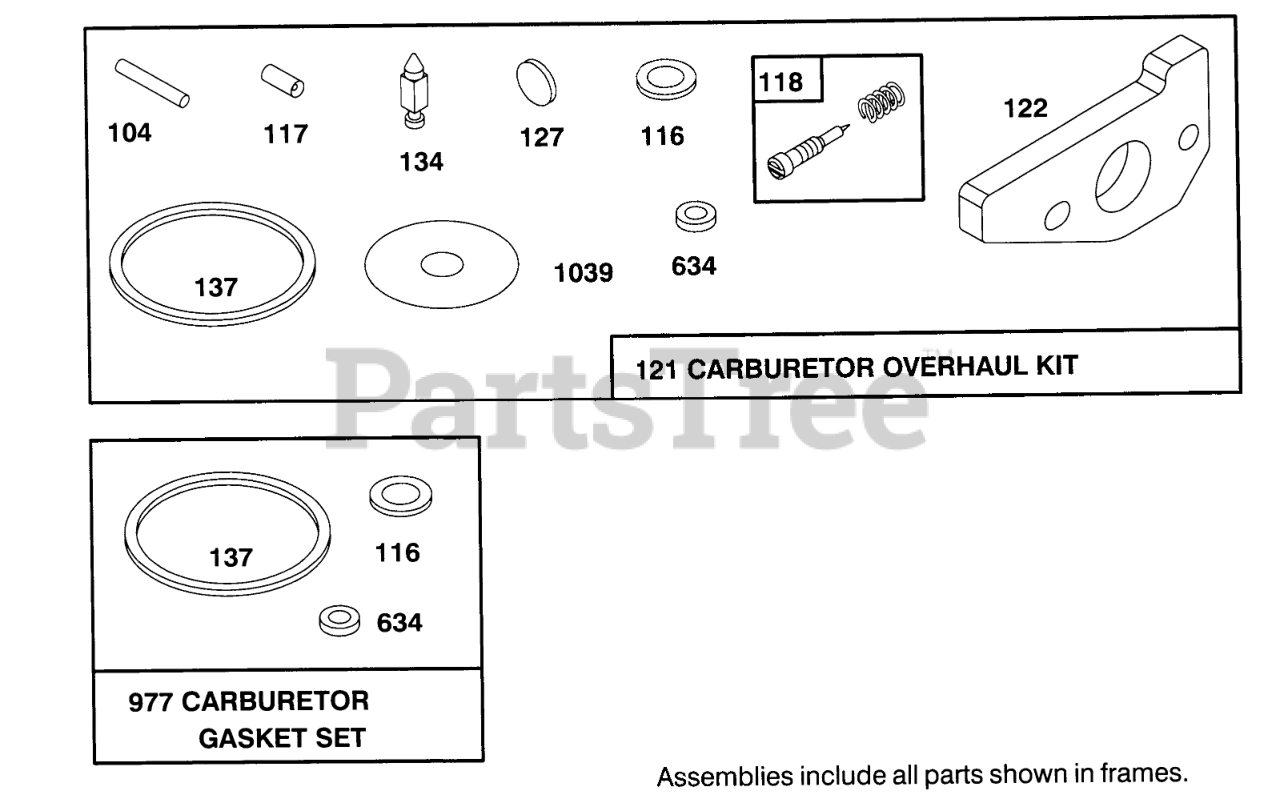

ENGINE GTS 150 Parts Diagram

  • Title

104

Toro 77-8180

FLOAT HINGE PIN

$

$

Not available

116

Toro 77-8210

SEALING GASKET

$6.49

$

In Stock, Qty 20+

0

117

Toro 77-8060

JET

$

$

Not available

118

Toro 77-8230

VALVE KIT - NEEDLE

$16.99

$

Usually ships in 3-6 days

0

121

Toro 77-8920

CARBURATOR OVERHAUL KIT

$51.99

$

Usually ships in 3-6 days

0

122

Toro 77-7820

ADAPTER ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

127

Toro 77-8100

PLUG

$2.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

Valve-Float (includes Seat)

$18.99

$

Usually ships in 3-6 days

0

137

Toro 77-8200

FLOAT BOWL GASKET

$7.49

$

In Stock, only 2 left!

0

634

Toro 77-8150

SEAL WASHER

$

$

Not available

977

Toro 77-8930

CARBURATOR GASKET SET

$10.99

$

In Stock, only 1 left!

0

1039

Toro 77-7250

FLOAT LIMITER

$

$

Not available

Toro 77-9000

HIGH ALTITUDE JET

Note: Not illustrated

$

$

Not available
