30111 - Toro ProLine Walk-Behind Mower, Gear Drive, 11hp (SN: 004000001 - 004999999) (1984) Handle Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 11hp

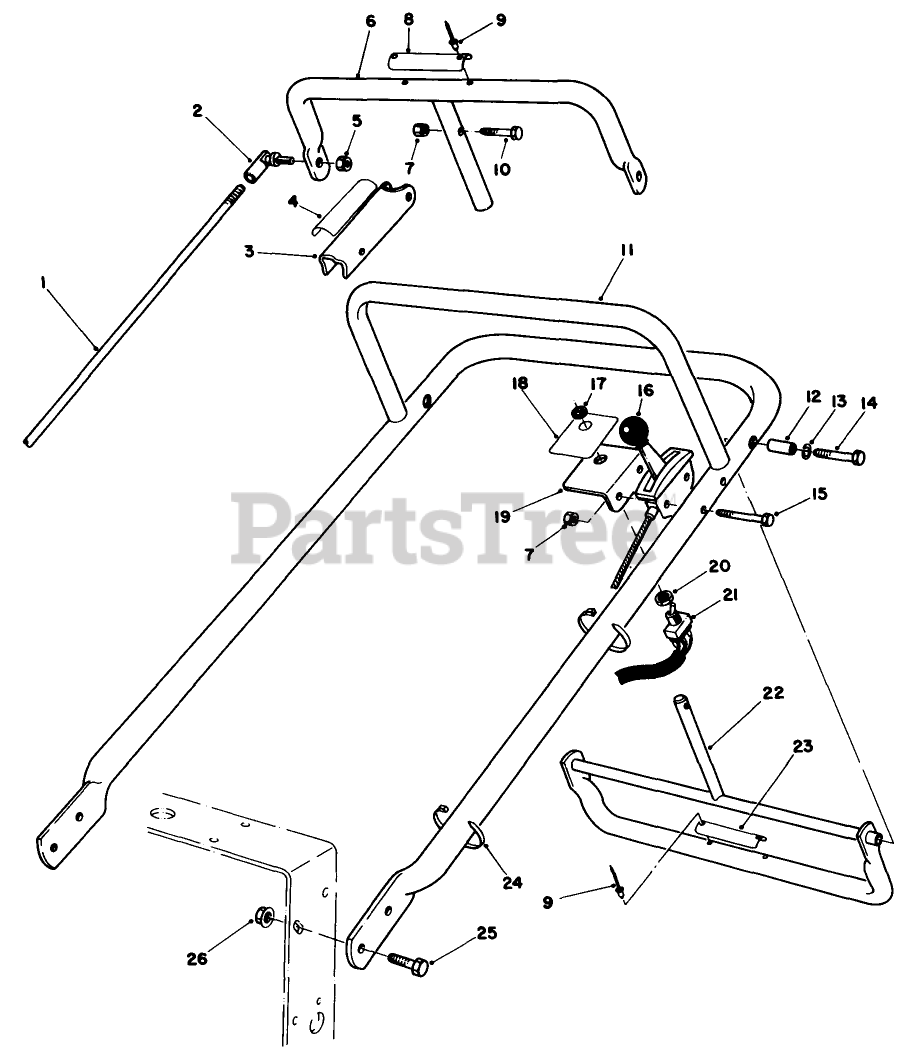

Handle Assembly Parts Diagram

  • Title

1

Toro 52-5420

See Supercession: 51-4590
(Superseded to 51-4590)

$

$

Not available

2

Toro 2411-32

JOINT-BALL RH

$32.99

$

Usually ships in 3-6 days

0

3

Toro 51-4850

See Supercession: 51-4850-03
(Superseded to 51-4850-03)

$42.99

$

In Stock, only 1 left!

0

4

Toro 52-2010

DECAL-LEVER, PARKING

$6.49

$

In Stock, only 1 left!

0

5

Toro 32964

Nut

$

$

Currently unavailable

6

Toro 51-4730

See Supercession: 51-4730-03
(Superseded to 51-4730-03)

$

$

Not available

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

8

Toro 52-2120

DISCONTINUED

$

$

Not available

9

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

10

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 6

0

11

Toro 51-4550

See Supercession: 51-4550-01
(Superseded to 51-4550-01)

$

$

Not available

12

Toro 51-4790

DISCONTINUED

$

$

Not available

13

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

14

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 9

0

15

Toro 32105-6

DISCONTINUED

$

$

Not available

16

Toro 51-4820

DISCONTINUED

$

$

Not available

17

Toro 218-497

DISCONTINUED PLEASE SEE NOTES

$

$

Not available

18

Toro 52-2130

DISCONTINUED

$

$

Not available

19

Toro 51-4840

DISCONTINUED

$

$

Not available

20

Toro 218-498

NUT-LOCK

$0.99

$

In Stock, only 1 left!

0

21

Toro 51-3260

DISCONTINUED

$

$

Not available

22

Toro 51-4760

See Supercession: 106-5477-03
(Superseded to 106-5477-03)

$222.99

$

Usually ships in 3-6 days

0

23

Toro 52-2110

DISCONTINUED

$

$

Not available

24

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

25

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0
