30111 - Toro ProLine Walk-Behind Mower, Gear Drive, 11hp (SN: 005000001 - 005999999) (1985) 52" Cutting Deck Model No. 30152 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 11hp

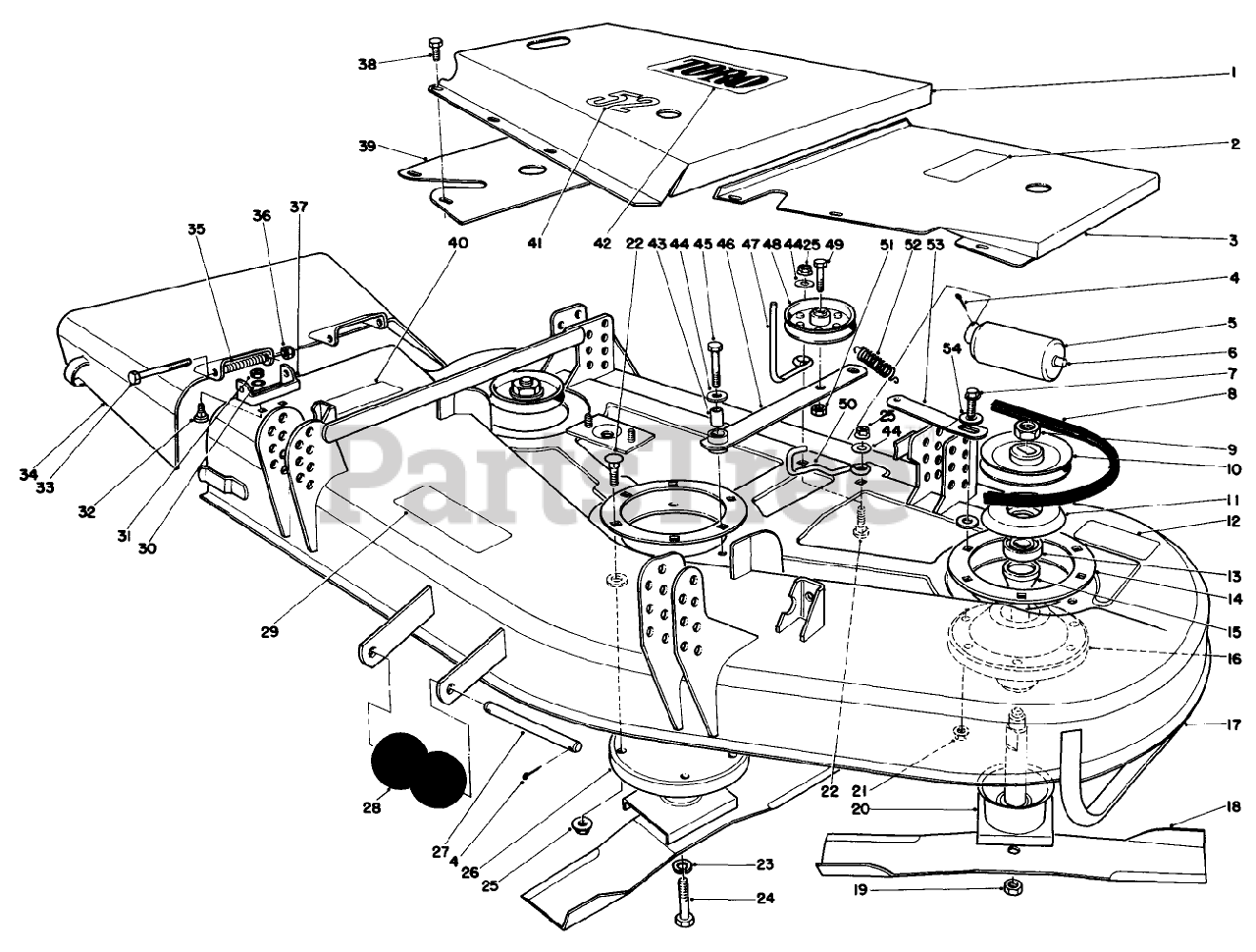

52" Cutting Deck Model No. 30152 Parts Diagram

  • Title

1

Toro 51-3930

CENTER COVER WA 52 *R

$385.99

$

Usually ships in 3-6 days

0

2

Toro 42-6860

DISCONTINUED

$

$

Not available

3

Toro 51-3910

See Supercession: 51-3910-01
(Superseded to 51-3910-01)

$

$

Not available

4

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 15

0

5

Toro 36-1740

ROLLER-DECK

$42.99

$

In Stock, only 2 left!

0

6

Toro 40-0340

SHAFT-ROLLER, REAR

$34.99

$

Usually ships in 3-6 days

0

7

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

8

Toro 27-1160

V-BELT

$59.99

$

In Stock, only 3 left!

0

9

Toro 32146-19

See Supercession: 3296-41
(Superseded to 3296-41)

$6.99

$

In Stock, only 3 left!

0

10

Toro 51-3520

DISCONTINUED

$

$

Not available

11

Toro 39-7690

DISCONTINUED

$

$

Not available

12

Toro 26-7970

CAUTION DECAL (BLADE)

$

$

Not available

13

Toro 40-6340

BEARING

$123.99

$

In Stock, only 2 left!

0

14

Toro 27-7680

See Supercession: 27-7680-03
(Superseded to 27-7680-03)

$91.99

$

Usually ships in 3-6 days

0

15

Toro 40-6320

DISCONTINUED

$32.61

$

In Stock, only 2 left!

0

16

Toro 51-3510

DISCONTINUED
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

17

Toro 51-3850

DISCONTINUED

$

$

Not available

18

Toro 40-3760

See Supercession: 40-3760-03
(Superseded to 40-3760-03)

$

$

Not available

19

Toro 32146-19

See Supercession: 3296-41
(Superseded to 3296-41)

$6.99

$

In Stock, only 3 left!

0

20

Toro 40-6310

DISCONTINUED

$

$

Not available

21

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

22

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

23

Toro 3253-23

WASHER-LOCK

$5.49

$

In Stock, only 3 left!

0

24

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 11

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 54-7780

SPINDLE HSG WA

$

$

Not available

27

Toro 40-6400

SHAFT-ROLLER

$44.99

$

In Stock, only 4 left!

0

28

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

29

Toro 26-7960

See Supercession: 68-7280
(Superseded to 68-7280)

$12.99

$

Usually ships in 3-6 days

0

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

31

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

32

Toro 3230-20

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

33

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

34

Toro 40-6200

See Supercession: 13-3949
(Superseded to 13-3949)

$

$

Not available

35

Toro 40-6230

SPRING

$43.99

$

Usually ships in 3-6 days

0

36

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

37

Toro 29-5590

See Supercession: 29-5590-03
(Superseded to 29-5590-03)

$

$

Not available

38

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

39

Toro 51-3890

See Supercession: 51-3890-01
(Superseded to 51-3890-01)

$

$

Not available

40

Toro 26-7980

DISCONTINUED

$

$

Not available

41

Toro 51-3960

DECAL

$28.99

$

Usually ships in 3-6 days

0

42

Toro 43-5120

See Supercession: 62-7400
(Superseded to 62-7400)

$27.99

$

Usually ships in 3-6 days

0

43

Toro 51-3640

SLEEVE

$18.99

$

In Stock, only 2 left!

0

44

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

46

Toro 51-3610

DISCONTINUED

$

$

Not available

47

Toro 52-4780

ROD-BELT

$15.99

$

In Stock, only 2 left!

0

48

Toro 52-4580

See Supercession: 99-5678
(Superseded to 99-5678)

$74.99

$

Usually ships in 3-6 days

0

49

Toro 3211-8

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

50

Toro 52-4770

DISCONTINUED

$

$

Not available

51

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

52

Toro 51-3650

SPRING-EXTENSION

$26.99

$

In Stock, only 3 left!

0

53

Toro 51-3870

See Supercession: 55-7650
(Superseded to 55-7650)

$25.99

$

In Stock, Qty 7

0

54

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0
