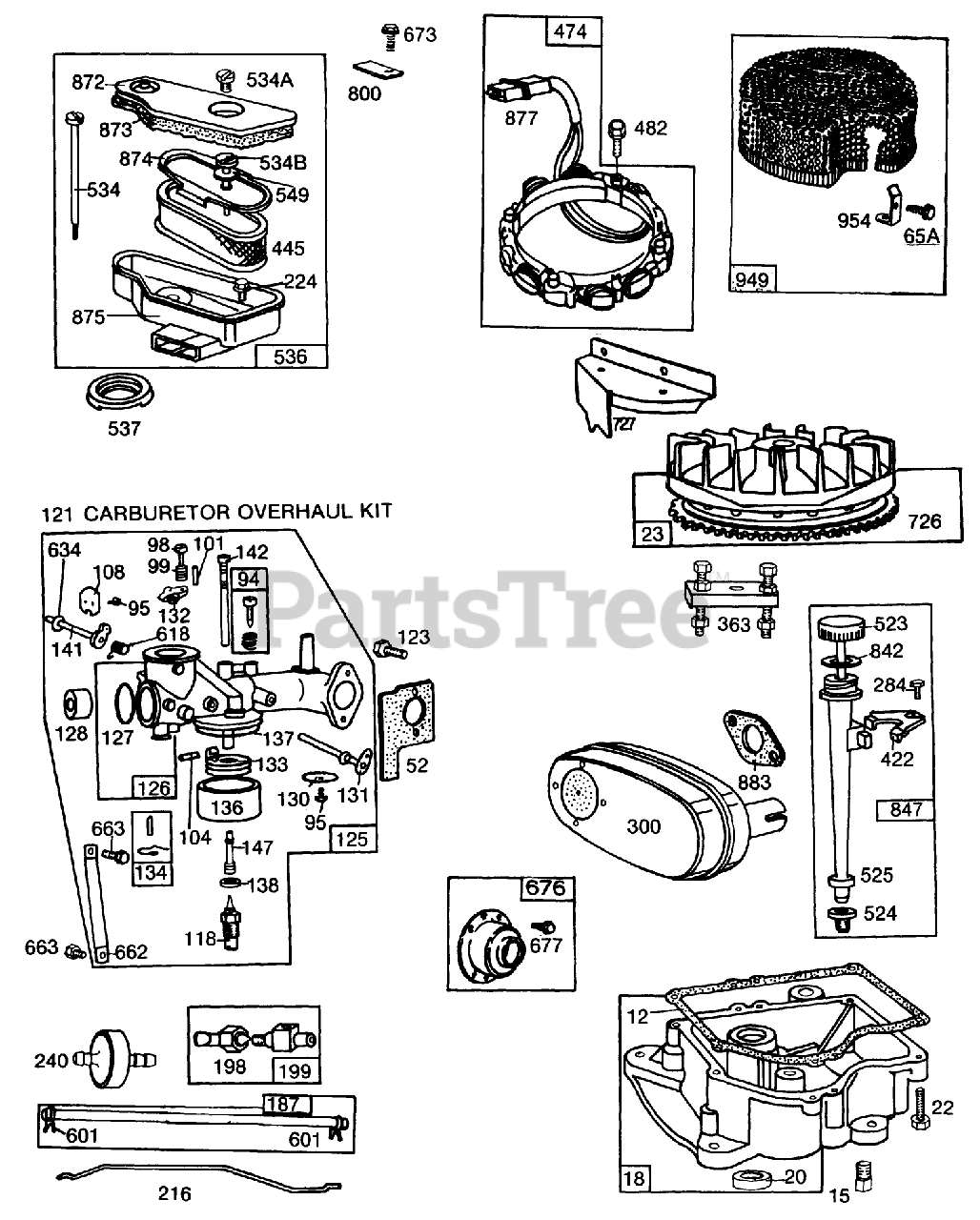

30111 - Toro ProLine Walk-Behind Mower, Gear Drive, 11hp (SN: 005000001 - 005999999) (1985) Briggs Stratton Model No. 253706-0180-01 (continued) Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 11hp

Briggs Stratton Model No. 253706-0180-01 (continued) Parts Diagram

  • Title

12

Toro 270808

Gasket-Crankcase Cover-1/64"thick

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

Toro 270915

Gasket-Cover .005"

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

Toro 270916

Gasket-Cover .009"

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

15

Toro 91084

Plug-Pipe

$

$

Currently unavailable

18

Toro 391784

Sump Oil

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

$

$

Currently unavailable

22

Toro 93585

Screw-Sem

$

$

Currently unavailable

23

Toro 391988

Flywheel and Ring Gear

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

65A

Toro 94018

Screw

$

$

Currently unavailable

94

Toro 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

95

Toro 93499

Screw

$

$

Currently unavailable

98

Toro 91920

Screw

$

$

Currently unavailable

99

Toro 26157

Spring

$

$

Currently unavailable

101

Toro 93043

Pin

$

$

Currently unavailable

104

Toro 230896

Pin-Float

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

108

Toro 222010

Valve

$

$

Currently unavailable

118

Toro 396568

Valve Needle

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

121

Toro 394698

Kit-Carburetor

$

$

Currently unavailable

123

Toro 93357

Screw

$

$

Currently unavailable

125

Toro 396501

Carburetor Assembly

$

$

Currently unavailable

126

Toro 396574

Body Assy.-Carburetor (Two 271013 Foam Washers Included in All Ref.126)

$

$

Currently unavailable

127

Toro 221997

Plug

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

128

Toro 211960

Venturi-Carburetor

$

$

Currently unavailable

130

Toro 222858

Valve-Throttle

$

$

Currently unavailable

131

Toro 391512

Shaft Lever-Throttle

$

$

Currently unavailable

132

Toro 211712

Stop-Thottle

$

$

Currently unavailable

133

Toro 299707

Float-Carburetor

$

$

Currently unavailable

134

Toro 299096

Valve-FuelInlet

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

136

Toro 221995

Bowl-Float

$

$

Currently unavailable

137

Toro 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

138

Toro 222014

Washer-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

141

Toro 390684

Shaft and Lever

$

$

Currently unavailable

142

Toro 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Currently unavailable

147

Toro 231323

Screw

Note: Included in Carburetor Overhaul Kit-Part No. 394698.

$

$

Not available

187

Toro 394045

Line-Fuel

$

$

Currently unavailable

198

Toro 293934

Valve-Shut Off

$

$

Currently unavailable

199

Toro 390303

Outlet-Fuel Tank

$

$

Currently unavailable

216

Toro 261610

Link-Choke

$

$

Currently unavailable

224

Toro 94018

Screw

$

$

Currently unavailable

240

Toro 298090

Filter

$

$

Currently unavailable

284

Toro 93804

Screw

$

$

Currently unavailable

300

Toro 392101

Muffler-Exhaust

$

$

Currently unavailable

363

Toro 19203

Puller-Flywheel

$

$

Currently unavailable

422

Toro 222502

Clamp-Oil Filler Tube

$

$

Currently unavailable

445

Toro 393725

Cartridge-Air Cleaner

$

$

Currently unavailable

474

Toro 393474

Alternator

$

$

Currently unavailable

482

Toro 93621

Screw

$

$

Currently unavailable

523

Toro 391841

Cap-Dipstick-Oil Filler

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

$

$

Currently unavailable

525

Toro 280134

Tube-Oil Filler

$

$

Currently unavailable

534

Toro 93911

Screw-Air Cleaner

$

$

Currently unavailable

534A

Toro 93913

Screw-Cover Mtg.

$

$

Currently unavailable

534B

Toro 93910

Screw-Air Cleaner

$

$

Currently unavailable

536

Toro 393749

Cleaner-Air

$

$

Currently unavailable

537

Toro 270853

Gasket-Air Cleaner

$

$

Currently unavailable

549

Toro 270978

Washer-Air Cleaner

$

$

Currently unavailable

601

Toro 93053

Clamp-Hose

$

$

Currently unavailable

618

Toro 261116

Spring Choke

$

$

Currently unavailable

634

Toro 270382

Washer

$

$

Currently unavailable

662

Toro 222311

Bracket-Carburetor

$

$

Currently unavailable

663

Toro 93572

Screw

$

$

Currently unavailable

673

Toro 93705

Screw

$

$

Currently unavailable

676

Toro 396903

Deflector-Exhaust

$

$

Currently unavailable

677

Toro 93705

Screw

$

$

Currently unavailable

726

Toro 392134

Gear-Ring (Includes Mounting Parts)

$

$

Currently unavailable

727

Toro 221940

Guard-Ring Gear

$

$

Currently unavailable

Toro 93712

Screw

Note: Used to mount Guard-Ring Gear Part No. 221940.

$

$

Currently unavailable

Toro 93713

Lockwasher

Note: Used to mount Guard-Ring Gear Part No. 221940.

$

$

Currently unavailable

800

Toro 222095

Retainer

$

$

Currently unavailable

842

Toro 270920

O-Ring

$

$

Currently unavailable

847

Toro 392067

Fill Group-Oil

$

$

Currently unavailable

872

Toro 396966

Cover Group-Air Cleaner (Includes Gasket)

$

$

Currently unavailable

873

Toro 271591

Gasket-Air Cleaner Cover

$

$

Currently unavailable

874

Toro 222898

Plate-Air Cleaner Cartridge

$

$

Currently unavailable

875

Toro 393726

Body-Air Cleaner

$

$

Currently unavailable

877

Toro 393456

Wire/Connector-Alternator

$

$

Currently unavailable

883

Toro 270917

Gasket Exhaust

$

$

Currently unavailable

949

Toro 397530

Guard-Debris

$

$

Currently unavailable

954

Toro 223379

Bracket-Guard

$

$

Currently unavailable
