30112 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 006000001 - 006999999) (1986) Engine and Clutch Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

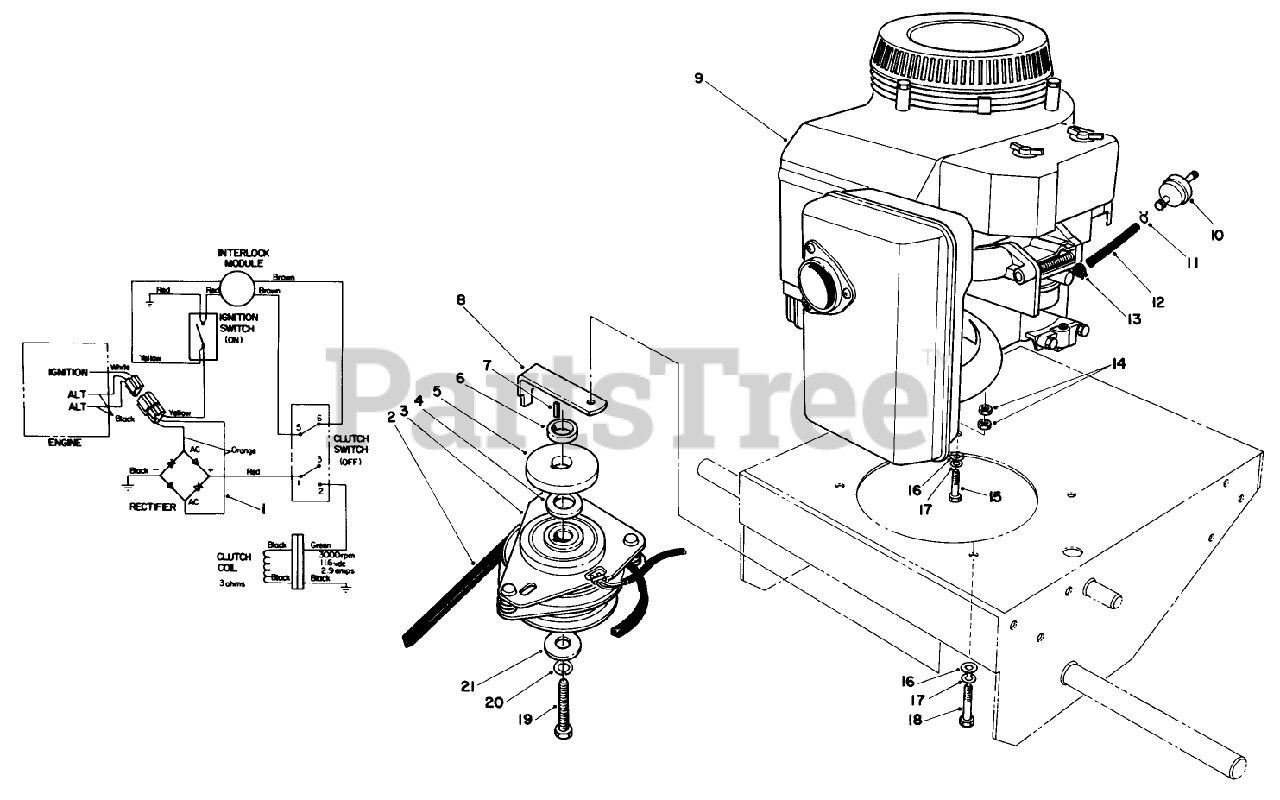

Engine and Clutch Assembly Parts Diagram

  • Title

1

Toro 57-6320

DISCONTINUED

$

$

Not available

2

Toro 26-9670

V-BELT

$26.99

$

In Stock, only 4 left!

0

3

Toro 54-3200

See Supercession: 105-2635
(Superseded to 105-2635)

$612.99

$

Usually ships in 3-6 days

0

4

Toro 51-3280

DISCONTINUED

$

$

Not available

5

Toro 51-4460

DISCONTINUED
(Superseded to 100-3251)

$

$

Not available

6

Toro 51-3290

DISCONTINUED X-REF

$

$

Not available

7

Toro 5-1336

KEY-SQUARE

$11.99

$

In Stock, only 3 left!

0

8

Toro 51-4540

See Supercession: 51-4540-03
(Superseded to 51-4540-03)

$24.99

$

In Stock, only 2 left!

0

9

Toro 12-2879

OBTAIN LOCALLY: KAW-FB460V-BSOB-01

$

$

Not available

10

Toro 42-5240

See Supercession: 56-6360
(Superseded to 56-6360)

$6.99

$

In Stock, Qty 10

0

11

Toro 2412-33

See Supercession: 2412-98
(Superseded to 2412-98)

$1.99

$

In Stock, Qty 20+

0

12

Toro 47-2982

See Supercession: 110-4894
(Superseded to 110-4894)

$10.99

$

Usually ships in 3-6 days

0

13

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

14

Toro 57-6390

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

15

Toro 57-6370

SCREW

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

18

Toro 57-6380

See Supercession: 33114-025
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0

19

Toro 57-6360

SCREW-CLUTCH

$4.99

$

Usually ships in 3-6 days

0

20

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

21

Toro 44-8160

DISCONTINUED

$

$

Not available
