30157 - Toro ProLine Walk-Behind Mower, Gear Drive, 12.5hp (SN: 049000001 - 049999999) (1994) CLUTCH ASSEMBLY NO. 54-3200 Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 12.5hp

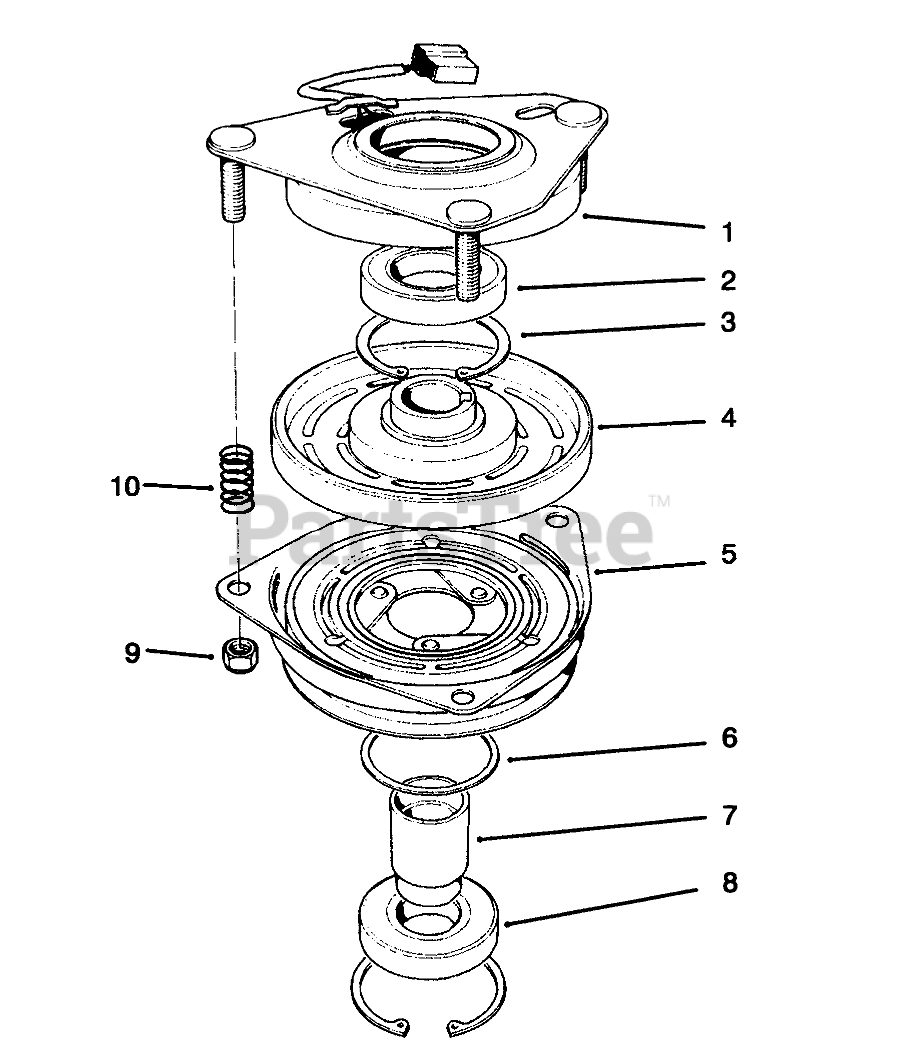

CLUTCH ASSEMBLY NO. 54-3200 Parts Diagram

  • Title
1

Toro Part# 54-0230

Field Assembly (Incl. Ref. #2 & 3)
Usually ships in 5 to 8 days

$

$380.89

0

2

Toro Part# 251-292

BEARING-FIELD
Usually ships in 5 to 8 days

$

$101.89

0

3

Toro Part# 44-8310

RING-RETAINING
Usually ships in 5 to 8 days

$

$20.90

0

4

Toro Part# 44-8360

Field Coil, Rotor & Bearing Assembly (Incl. Ref. #1)
Usually ships in 5 to 8 days

$

$501.81

0

5

Toro Part# 55-7410

Armature & Pulley Assembly (Incl. Ref. #3, 6, 7, & 8)
(Superseded to 105-2635)
Usually ships in 1 day

$

$494.15

0

6

Toro Part# 44-8330

SPACER-BEARING, PULLEY
Usually ships in 5 to 8 days

$

$13.46

0

7

Toro Part# 44-8340

COLLAR-BEARING
Usually ships in 5 to 8 days

$

$84.61

0

8

Toro Part# 251-291

BEARING-PULLEY
(Superseded to 251-312)
Usually ships in 5 to 8 days

$

$20.16

0

9
Usually ships in 1 day

$

$2.90

0

10
Usually ships in 5 to 8 days

$

$7.73

0
