30180 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 010000001 - 019999999) (1991) BATTERY ASSEMBLY Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

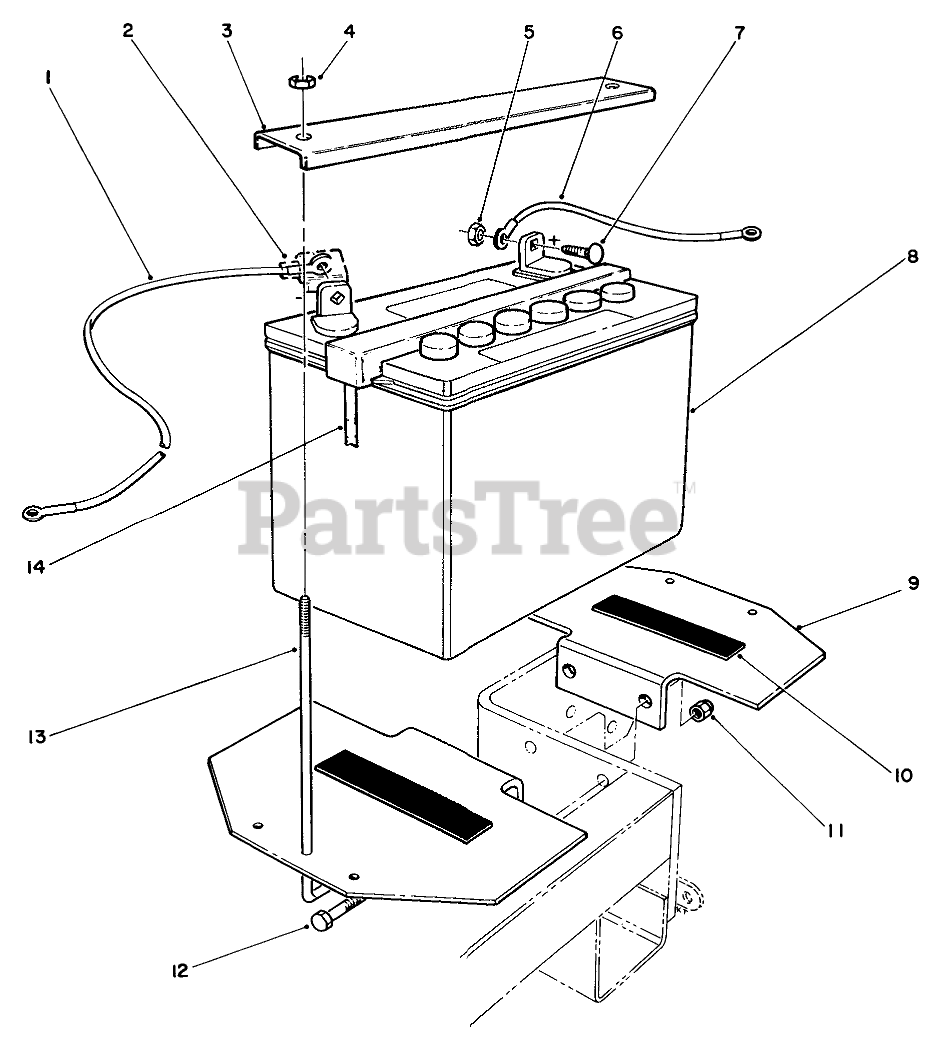

BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 54-3090

WIRE ASM

$36.99

$

Usually ships in 3-6 days

0

2

Toro 77-0980

BOOT-TERMINAL, BLACK

$

$

Not available

Toro 77-0981

BOOT-TERMINAL, RED

$16.99

$

Usually ships in 3-6 days

0

3

Toro 54-2950

BATTERY STRAP R/B

$

$

Not available

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

6

Toro 28-3890

WIRE ASM

$

$

Not available

7

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8

Toro 49-7030

Battery

$

$

Not available

9

Toro 55-8350

Holder-Battery
(Superseded to 92-2350-01)

$

$

Not available

10

Toro 51-4210

PAD-TANK, FUEL

$

$

Not available

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

14

Toro 68-3810

TUBE-VENT

$

$

Not available

Toro 68-5950

Wiring Harness

$

$

Currently unavailable
