30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 059000001 - 059999999) (1995) Engine Kohler Model No. Cv14 S-1429 (continued) Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

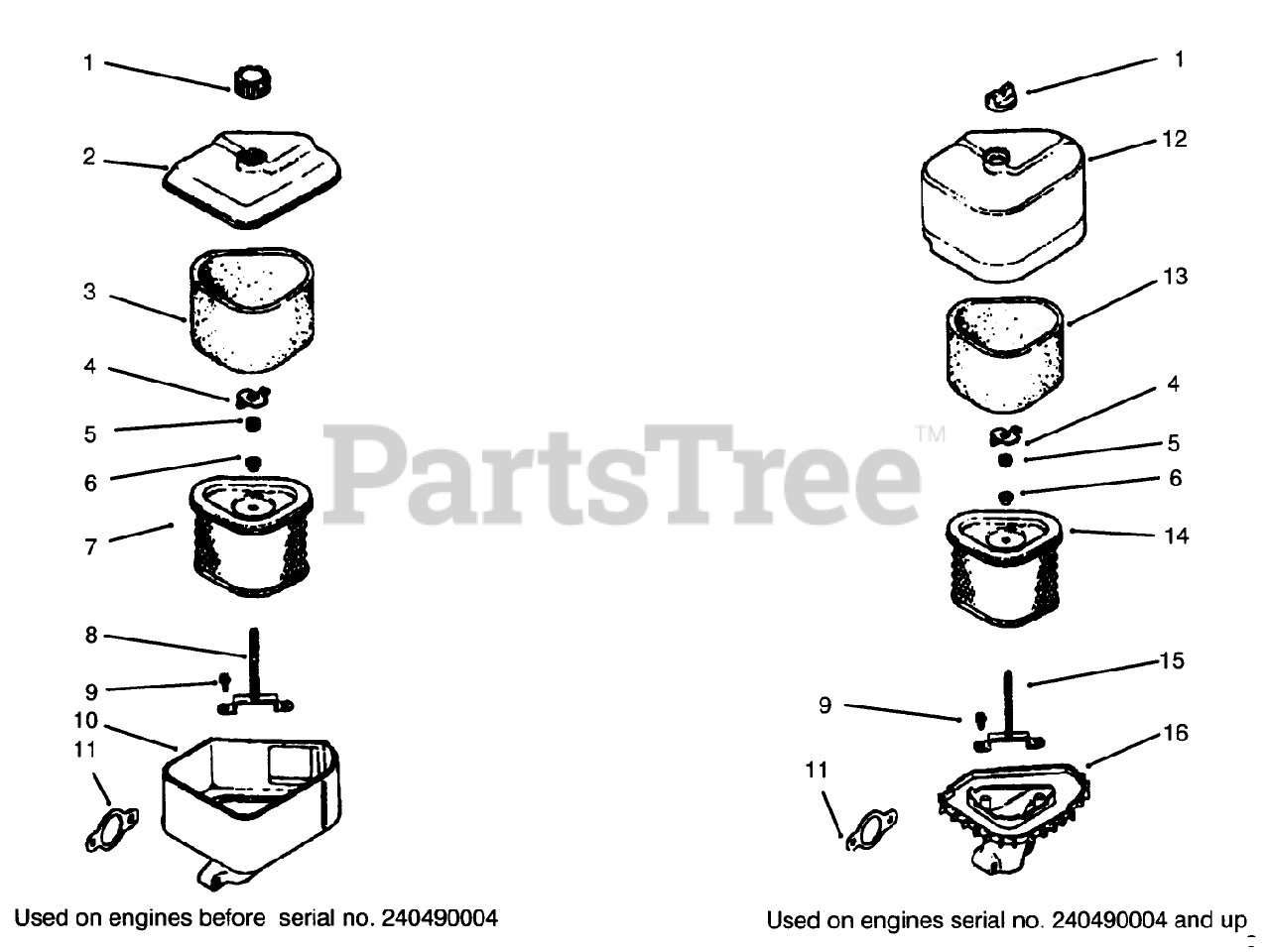

Engine Kohler Model No. Cv14 S-1429 (continued) Parts Diagram

  • Title

1

Toro 12 341 01

Knob-Air Cleaner Cover (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

2

12_096_06

Cover-Air Cleaner (Only On: 72042,72043,72062,72063)

$

$

Not available

3

12_083_08

Precleaner-Element (Only On: 72042,72043,72062,72063)

$

$

Not available

4

12_100_01

Nut-Wing

$

$

Not available

5

Toro X-25-63

Washer

$

$

Currently unavailable

6

Toro 12 313 04

Grommet

$

$

Currently unavailable

7

Toro 12 083 05

Element-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

8

Toro 12 072 03

Stud-Mounting Plate (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

9

Toro 12 086 01

Screw-Mounting Plate (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

10

Toro 12 094 01

Base-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

11

Toro 12 041 02

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

12

12_096_16

Cover-Air Cleaner

$

$

Not available

13

12_083_12

Precleaner-Element

$

$

Not available

14

12_083_10

Element-Air Cleaner

$

$

Not available

15

12_072_04

Stud-Mounting Plate

$

$

Not available

16

12_094_07

Base-Air Cleaner

$

$

Not available
