30186 - Toro ProLine Walk-Behind Mower, Hydro Drive, 14hp (SN: 059000001 - 059999999) (1995) Fuel System-Engine Kohler Model No. Cv14 S-1429 (continued) Parts Diagram

ProLine Walk-Behind Mower, Hydro Drive, 14hp

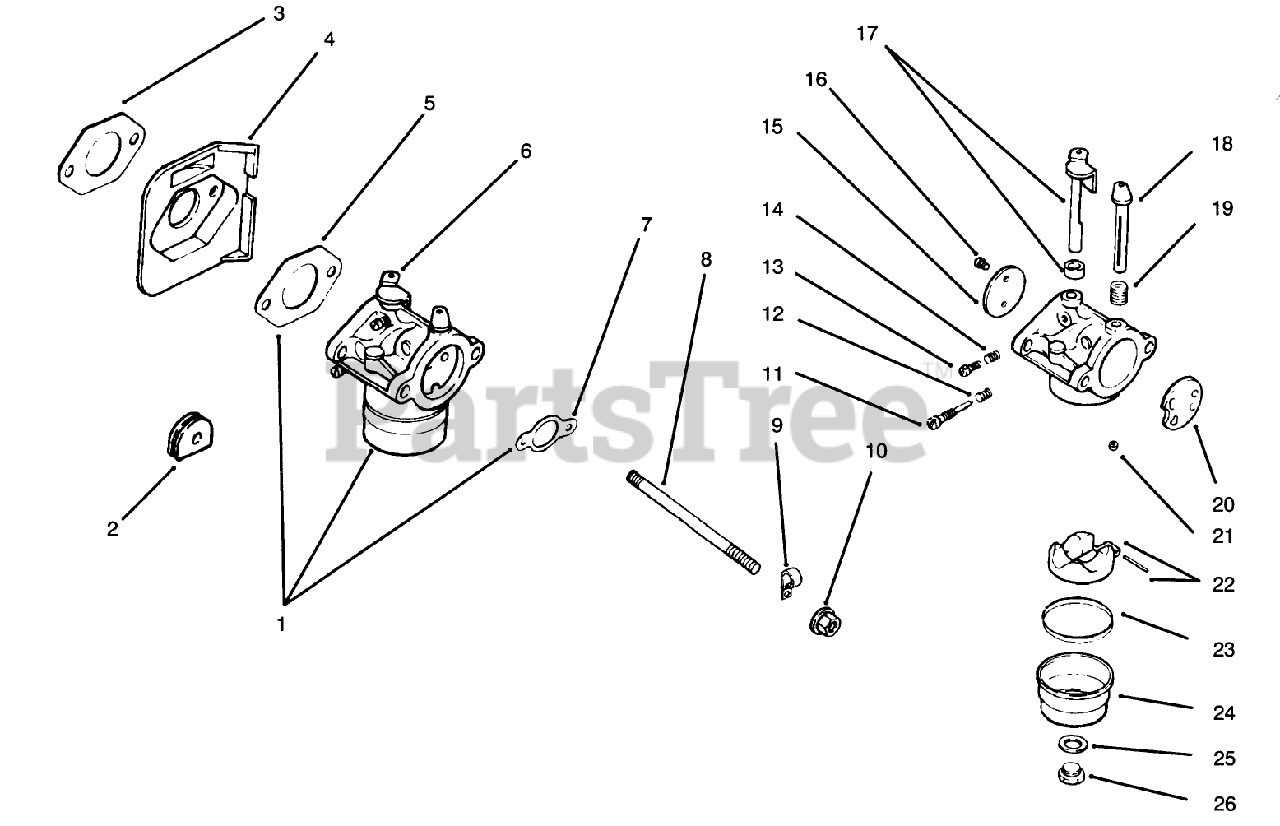

Fuel System-Engine Kohler Model No. Cv14 S-1429 (continued) Parts Diagram

  • Title

1

Toro 12_853_01

Kit-Carb INCL 4/6/21 -36 (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

2

Toro 12 313 01

Grommet (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

3

Toro 12 041 01

Gasket-Carburetor (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

4

Toro 12_265_01

Deflector-Heat (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

5

12_053_01

Carburetor Assembly (Incl Ref. #11-26)

$

$

Not available

6

Toro 12 041 01

Gasket-Carburetor (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

7

Toro 12 041 02

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

8

Toro M-0629122

Stud M6x1.0x110 (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

9

Toro 48_154_01

Clamp

$

$

Currently unavailable

10

Toro SM-0641060

Nut

$

$

Currently unavailable

11

Toro 12 368 01

Needle-Idle Fuel Adjust (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

12

Toro 12 089 09

Spring-Idle Fuel (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

13

12_086_04

Screw-Idle Speed Adjust (Only On: 72042,72043,72062,72063)

$

$

Not available

14

Toro 12 089 09

Spring-Idle Fuel (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

15

12_146_03

Plate-Throttle (Only On: 72042,72043,72062,72063)

$

$

Not available

16

Toro 25_086_27

Screw-Throttle Plate (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

17

Toro 12 144 09

Shaft-W/Lever Seal (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

18

Toro 12 144 08

Shaft-Choke (Only On: 72042. 72063, 72062, 72043)

$

$

Currently unavailable

19

Toro 12 089 10

Spring-Choke Return (Only On: 72042,72063, 72062, 72043)

$

$

Currently unavailable

20

Toro 12 146 02

Plate-Choke (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

21

Toro 12_337_01

Jet-Main

$

$

Currently unavailable

22

Toro 12_757_02

Kit-Float (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

23

12_041_05

Gasket-Bowl (Only On: 72042,72043,72062,72063)

$

$

Not available

24

Toro 12 104 01

Bowl-Fuel (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

25

Toro 12 041 06

Gasket-Bowl Screw (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

26

Toro 12 086 05

Screw-Fuel Bowl (Only On: 72042, 72063,72062, 72043)

$

$

Currently unavailable

Toro 12_757_01

Kit-Carburetor Repair (Only On: 72042,72043,72062,72063)

Note: Not Illustrated.

$

$

Currently unavailable

Toro 12_755_09

Kit-High Altitude (Only On: 72042,72043,72062,72063)

Note: Not Illustrated.

$

$

Currently unavailable
