31-12K802 (312-8) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

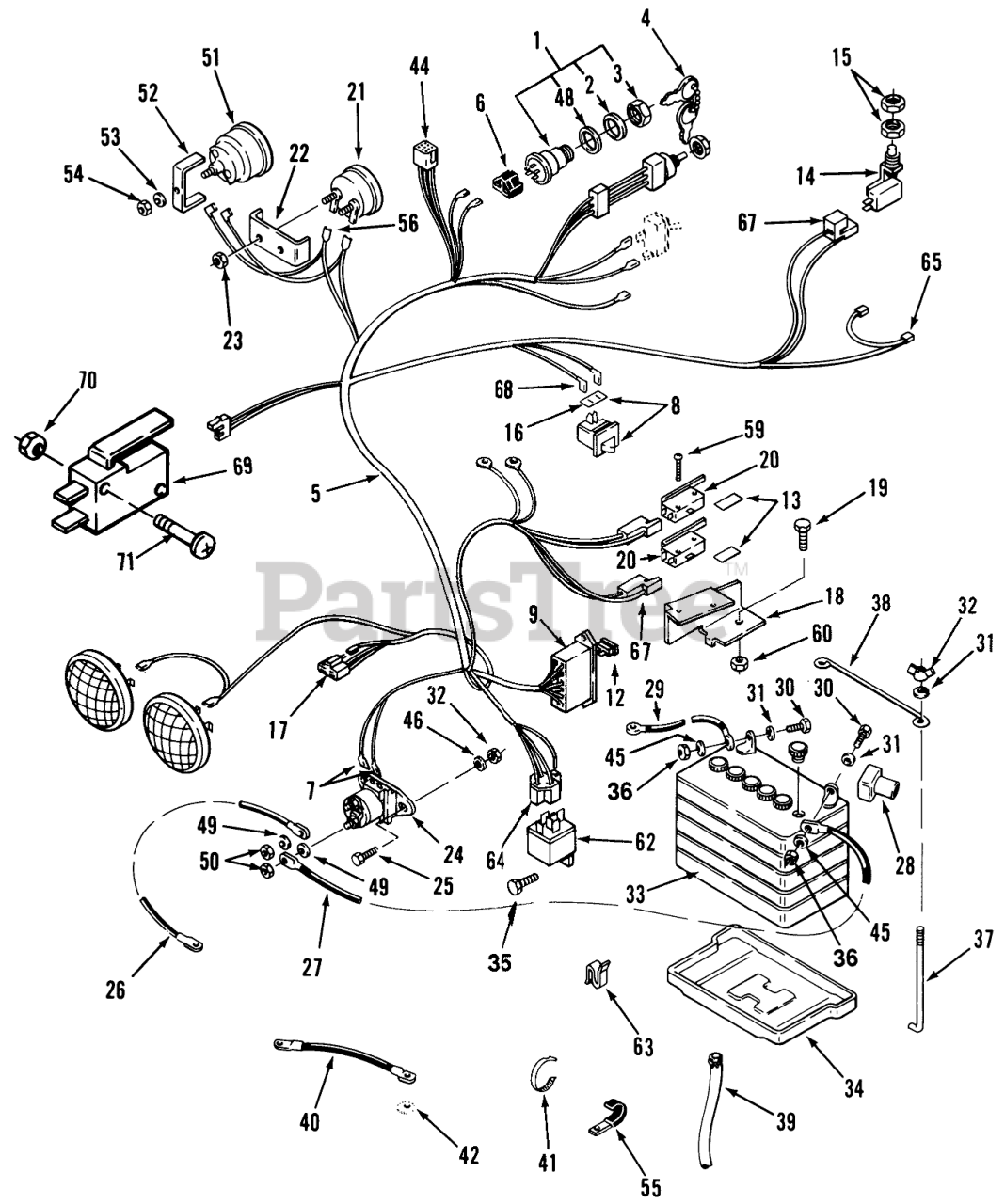

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 111215

Ignition Switch Ass-y
(Superseded to 103991)

$47.99

$

In Stock, only 3 left!

0

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$27.99

$

In Stock, Qty 11

0

2

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 4 left!

0

3

Toro 101884

NUT

$7.49

$

In Stock, only 2 left!

0

4

Toro 111220

Ignition Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

Toro 116738

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

5

Toro 78-6300

MAIN-HARNESS & DIA

$

$

Not available

Toro 78-6320

MAIN-HARNESS & DIA

$

$

Not available

Toro 78-6310

MAIN-HARNESS & DIA

$866.99

$

Usually ships in 3-6 days

0

Toro 78-7020

WIRING-HARNESS & DIA

$595.99

$

In Stock, only 1 left!

0

Toro 78-7330

WIRING-HARNESS & DIA

$

$

Not available

6

Toro 104926

CONNECTOR BODY ELECT

$3.99

$

In Stock, only 2 left!

0

7

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

8

Toro 103480

SWITCH INTERLOCK

$

$

Not available

Toro 115230

SWITCH - CLUTCH

$30.99

$

Usually ships in 3-6 days

0

9

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$21.99

$

In Stock, only 3 left!

0

12

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, only 2 left!

0

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

13

Toro 111642

BARRIER - SWITCH

$

$

Not available

14

Toro 114240

Seat Switch
(Superseded to 112418)

$51.99

$

In Stock, Qty 7

0

15

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

16

Toro 110502

SHIELD-DIRT SPST

$7.99

$

Usually ships in 3-6 days

0

17

Toro 112185

5-CONTACT CONN BODY

$7.99

$

Usually ships in 3-6 days

0

18

Toro 115411

BRACKET-SWITCH

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

20

Toro 111332

SWITCH

$11.99

$

In Stock, Qty 16

0

21

Toro 79-0060

VOLTMETER

$143.99

$

Usually ships in 3-6 days

0

22

Toro 78-0080

CLAMP-MOUNTING

$5.99

$

Usually ships in 3-6 days

0

23

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

24

Toro 110167

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, Qty 11

0

25

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

26

Toro 111069

ASSY WIRE

$

$

Not available

27

Toro 111074

CABLE-BLACK

$25.99

$

Usually ships in 3-6 days

0

28

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

29

Toro 111069

ASSY WIRE

$

$

Not available

30

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

31

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

32

Toro 116497

Nut
(Superseded to 32103-22)

$2.99

$

In Stock, only 2 left!

0

33

Toro 105842

Battery
(Superseded to 104-8162)

$

$

Not available

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

Toro 115877

Battery
(Superseded to 104-8162)

$

$

Not available

34

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

Toro 910794

BOLT

$

$

Not available

Toro 915114

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

37

Toro 113969

HOOK-BATTERY RETAIN

$14.99

$

In Stock, only 3 left!

0

38

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

39

Toro 114720

TUBE-21" BATTERY DRAIN

$6.99

$

Usually ships in 3-6 days

0

40

Toro 109910

WIRE GROUND

$4.99

$

Usually ships in 3-6 days

0

41

Toro 100571

PLASTIC TIE

$

$

Not available

42

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

44

Toro 102651

Terminal

$

$

Not available

45

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

48

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

49

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

50

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

51

Toro 78-0020

Hour Meter Complete (Includes Items 52-54) 312-8, 312-H, 416-8 & 416-H
(Superseded to 66-2950)

$

$

Not available

52

Toro 114017

BRKT-GAUGE MOUNTING

$

$

Not available

53

Toro 920120

Lockwasher
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

54

Toro 915962

Hex Nut
(Superseded to 32149-9)

$1.49

$

Usually ships in 3-6 days

0

55

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

59

Toro 910478

Screw
(Superseded to 9104784)

$1.49

$

Usually ships in 3-6 days

0

60

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

62

Toro 116397

RELAY

$33.99

$

In Stock, only 4 left!

0

63

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

64

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

65

Toro 6921

Sur-Plug

$

$

Currently unavailable

67

Toro 111498

CONNECTOR BODY

$4.99

$

In Stock, only 3 left!

0

68

Toro 518077

Terminal

$

$

Currently unavailable

69

Toro 111332

SWITCH

$11.99

$

In Stock, Qty 16

0

70

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

71

Toro 910948

Screw
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0
