31-12K802 (312-8) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) Gearcase And Ignition Controls Parts Diagram

Garden Tractor

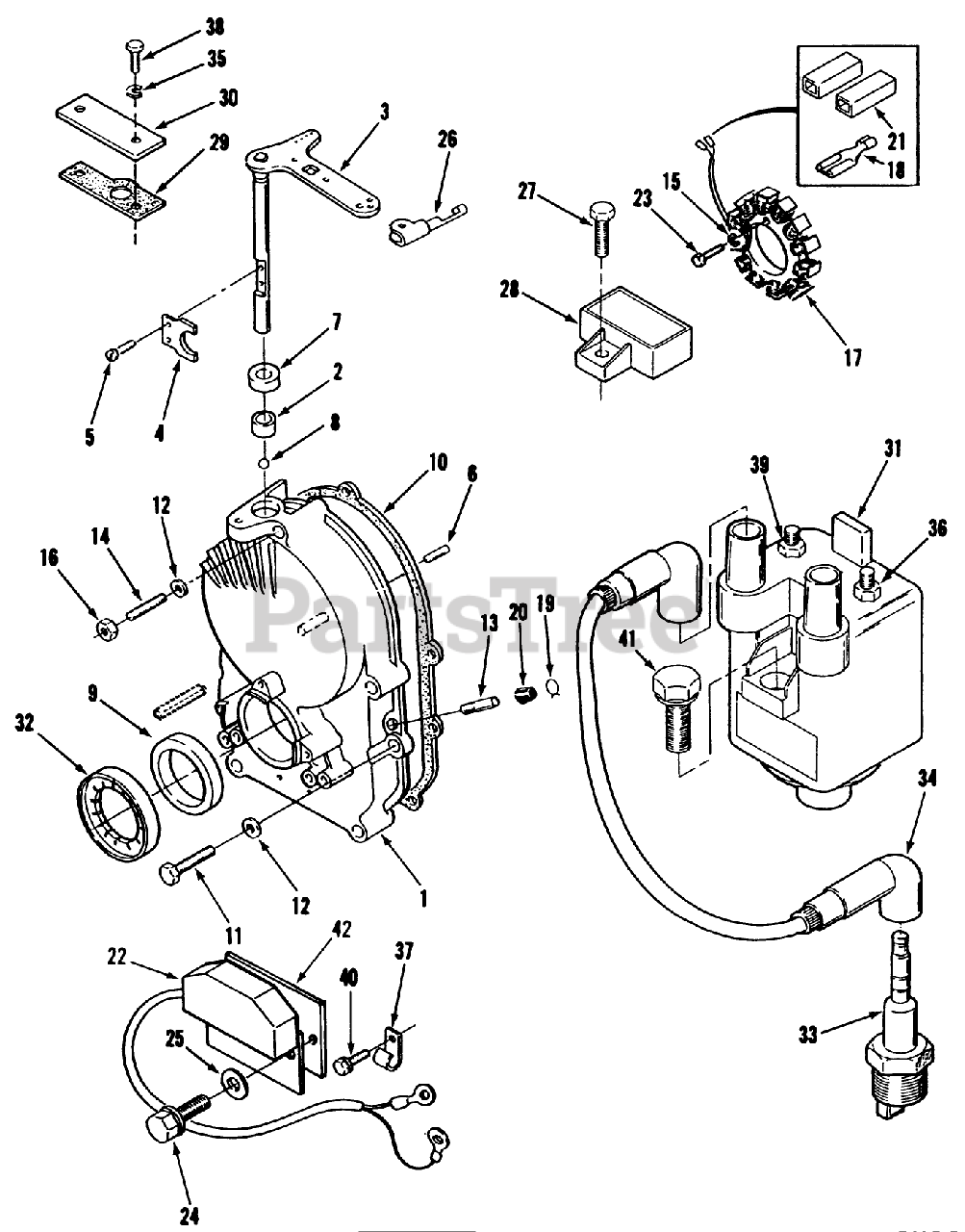

Gearcase And Ignition Controls Parts Diagram

  • Title

1

Toro NN10825

DISCONTINUED

$

$

Not available

2

Toro 57-9650

DISCONTINUED

$

$

Not available

3

Toro NN10826

SHAFT AND ARM

$232.99

$

Usually ships in 3-6 days

0

4

Toro 59-0420

DISCONTINUED

$

$

Not available

5

Toro 59-0950

SCREW-PAN HD

$

$

Not available

6

Toro NN10335

See Supercession: 59-0740
(Superseded to 59-0740)

$6.49

$

In Stock, only 1 left!

0

7

Toro 57-9570

DISCONTINUED

$

$

Not available

8

Toro 57-9630

BALL

$

$

Not available

9

Toro 57-9580

SEAL

$

$

Not available

10

Toro NN10895

DISCONTINUED
(Superseded to 71-6360)

$

$

Not available

11

Toro NN10374

See Supercession: NN10545
(Superseded to NN10545)

$

$

Not available

12

Toro 57-9750

WASHER

$

$

Not available

13

Toro 59-0360

TUBE-PORT, VACUUM

$

$

Not available

14

Toro NN10352

See Supercession: 59-0790
(Superseded to 59-0790)

$

$

Not available

15

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro NN10426

See Supercession: 59-1130
(Superseded to 59-1130)

$

$

Not available

17

Toro 57-9440

See Supercession: 92-0967
(Superseded to 92-0967)

$897.99

$

Usually ships in 3-6 days

0

18

Toro NN10290

See Supercession: 59-0590
(Superseded to 59-0590)

$

$

Not available

19

Toro 57-9550

DISCONTINUED

$

$

Not available

20

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

21

Toro NN10280

See Supercession: 82-1000
(Superseded to 82-1000)

$

$

Not available

22

Toro NN10444

See Supercession: 71-6380
(Superseded to 71-6380)

$485.99

$

Usually ships in 3-6 days

0

23

Toro NN10389

See Supercession: 71-6390
(Superseded to 71-6390)

$

$

Not available

24

Toro NN10394

See Supercession: 71-6400
(Superseded to 71-6400)

$

$

Not available

25

Toro NN10424

See Supercession: 82-1660
(Superseded to 82-1660)

$

$

Not available

26

Toro 57-9730

CLIP

$

$

Not available

27

Toro NN10414

See Supercession: 59-1080
(Superseded to 59-1080)

$

$

Not available

28

Toro NN10794

See Supercession: 117-2742
(Superseded to 117-2742)

$288.99

$

In Stock, only 2 left!

0

29

Toro NN10243

See Supercession: 57-9260
(Superseded to 57-9260)

$

$

Not available

30

Toro NN10515

See Supercession: 71-5990
(Superseded to 71-5990)

$

$

Not available

31

Toro NN10245

See Supercession: 71-6000
(Superseded to 71-6000)

$

$

Not available

32

Toro NN10247

See Supercession: 71-6010
(Superseded to 71-6010)

$244.99

$

Usually ships in 3-6 days

0

33

Toro 57-9340

SPARK PLUG

$4.49

$

In Stock, Qty 6

0

34

Toro 57-9350

CABLE KIT

$210.99

$

Usually ships in 3-6 days

0

35

Toro NN10663

DISCONTINUED

$

$

Not available

36

Toro NN10248

See Supercession: 71-6430
(Superseded to 71-6430)

$

$

Not available

37

Toro NN10348

See Supercession: 71-6220
(Superseded to 71-6220)

$

$

Not available

38

Toro NN10368

See Supercession: 82-1360
(Superseded to 82-1360)

$

$

Not available

39

Toro NN10249

See Supercession: 71-6440
(Superseded to 71-6440)

$

$

Not available

40

Toro NN10396

See Supercession: 71-6450
(Superseded to 71-6450)

$3.99

$

Usually ships in 3-6 days

0

41

Toro NN10408

See Supercession: 71-6460
(Superseded to 71-6460)

$

$

Not available

42

Toro NN10516

See Supercession: 71-6410
(Superseded to 71-6410)

$14.99

$

Usually ships in 3-6 days

0
