312 D (1600047) - AGCO Lawn Tractor, 12hp Fuel System Group (1505I03) Parts Diagram

Lawn Tractor, 12hp

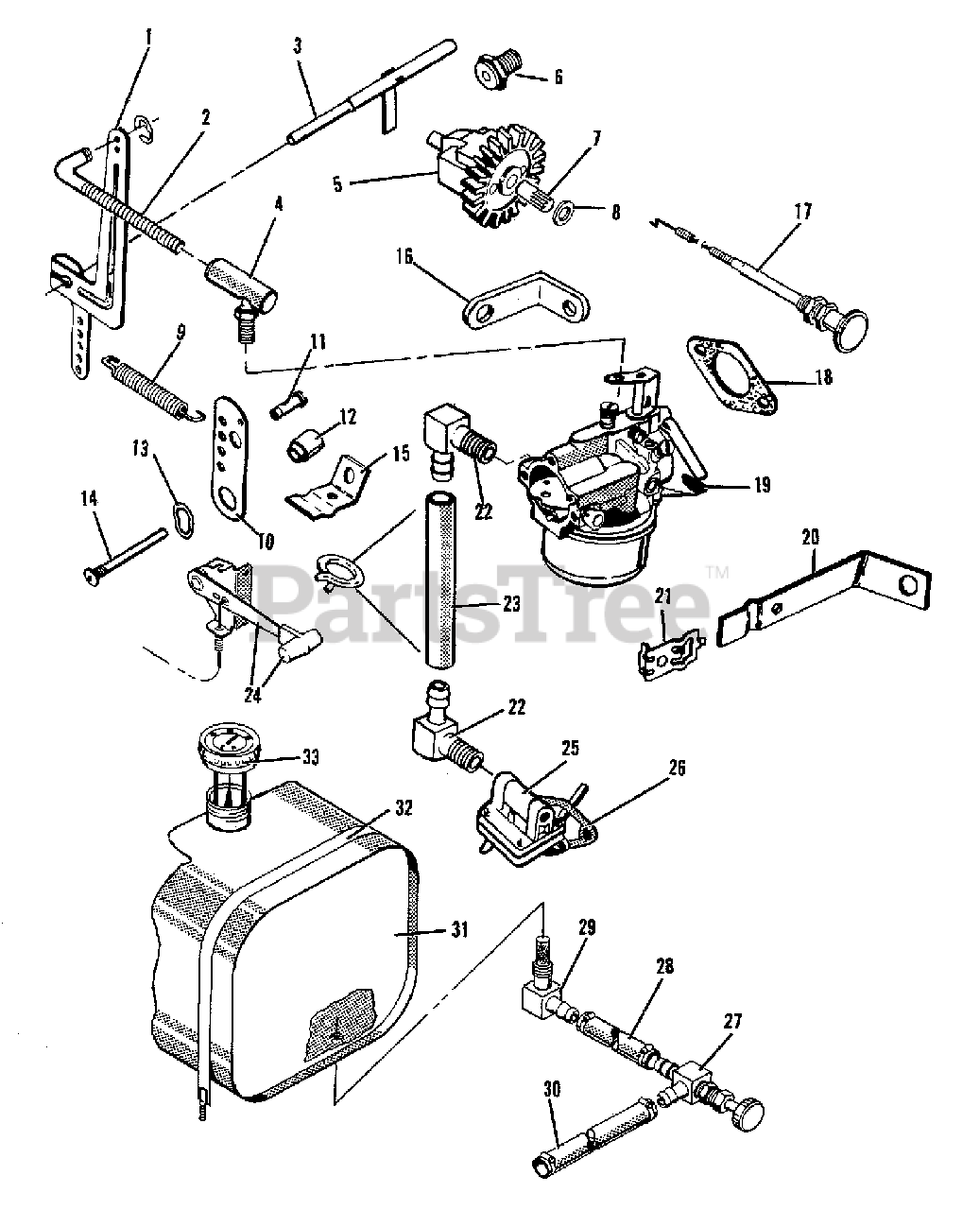

Fuel System Group (1505I03) Parts Diagram

  • Title

1

Simplicity 2066348

LEVER, Governor

$

$

Not available

1

Simplicity 2821961

SCREW, 1/4 NC x 1-1/4

$

$

Not available

1

Simplicity 910880

NUT, 1/4 NC

$

$

Not available

2

Simplicity 2066336

ROD, Throttle

$

$

Not available

2

Simplicity 2066337

RETAINER, Rod

$

$

Not available

3

Simplicity 2066335

SHAFT ASSEMBLY, Governor Cross

$

$

Not available

4

Simplicity 2066443

JOINT ASSEMBLY, Ball

$

$

Not available

4

Simplicity 2817365

LOCKWASHER, #10

$

$

Not available

4

Simplicity 922273

WASHER

$

$

Not available

4

Simplicity 2817415

NUT, #10 NF

$

$

Not available

5

Simplicity 2066406

GEAR ASSEMBLY, Governor

$

$

Not available

6

Simplicity 2066347

BUSHING

$

$

Not available

7

Simplicity 2066331

SHAFT, Governor

$

$

Not available

8

WASHER, Thrust

$

$

Not available

9

Simplicity 2066349

SPRING, Governor

$

$

Not available

10

Simplicity 2066326

BRACKET, Speed Control

$

$

Not available

11

Simplicity 2066306

PIN, Wire Swivel

$

$

Not available

11

Simplicity 2821958

SCREW, 1/4 NC x 1/4

$

$

Not available

11

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 5025169FS)

$3.99

$

In Stock, Qty 18

0

12

Simplicity 2066325

SPACER

$

$

Not available

13

WASHER, Tension

$

$

Not available

14

Simplicity 2066307

PIN, Governor Stop

$

$

Not available

15

Simplicity 2066376

BRACKET, Throttle

$

$

Not available

15

Simplicity 920241

SCREW, #10 NC x 3/8

$

$

Not available

15

Simplicity 1909055SM

LOCKWASHER, #10 Inter Tooth

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 2066324

BRACKET, Adjustment Screw

$

$

Not available

17

Simplicity 1602792SM

CHOKE ASSEMBLY, Carburetor Air

$68.99

$

Usually ships in 2-12 days

0

18

Simplicity 2066428

GASKET, Carburetor (Included in Engine Gasket Set)

$

$

Not available

19

Simplicity 2066322

CARBURETOR ASSEMBLY (10 & 12 H.P.)

$

$

Not available

19

Simplicity 2066523

CARBURETOR ASSEMBLY, (14 H.P.)

$

$

Not available

19

Simplicity 2066308

REPAIR KIT, Carburetor

$

$

Not available

20

Simplicity 2066359

BRACKET, Choke

$

$

Not available

21

Simplicity 2066438

CLIP, Choke Cable

$

$

Not available

22

Simplicity 2066435

ELBOW, Hose

$

$

Not available

23

Simplicity 2066300

HOSE, Fuel (Pump to Carburetor)

$

$

Not available

23

Simplicity 921910

CLAMP, Hose, 7/16 to 25/32

$

$

Not available

24

Simplicity 1602791SM

LEVER ASSEMBLY, Throttle Control

$74.99

$

Usually ships in 2-12 days

0

24

Simplicity 1610275

KNOB, Handle

$

$

Not available

25

Simplicity 2066363

PUMP ASSEMBLY, Fuel

$

$

Not available

26

Simplicity 2066423

GASKET, Fuel Pump (Included In Engine Gasket Set)

$

$

Not available

27

Simplicity 1605179

VALVE ASSEMBLY, Fuel Shutoff

$

$

Not available

28

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

28

Simplicity 921910

CLAMP, Hose, 7/16 to 25/32

$

$

Not available

29

Simplicity 1602726

ELBOW, Fuel

$

$

Not available

30

Simplicity 1602728

HOSE, Fuel

$

$

Not available

30

Simplicity 921910

CLAMP, Hose, 7/16 to 25/32

$

$

Not available

31

Simplicity 1601951

TANK ASSEMBLY, Fuel

$

$

Not available

32

Simplicity 1604270

STRAP ASSEMBLY, Fuel Tank

$

$

Not available

33

Simplicity 1602724SM

CAP ASSEMBLY, Fuel (Guage Included)

$48.99

$

In Stock, only 1 left!

0
