31AE993I401 - Yard-Man Snow Thrower (1999) Transmission Parts Diagram

Snow Thrower

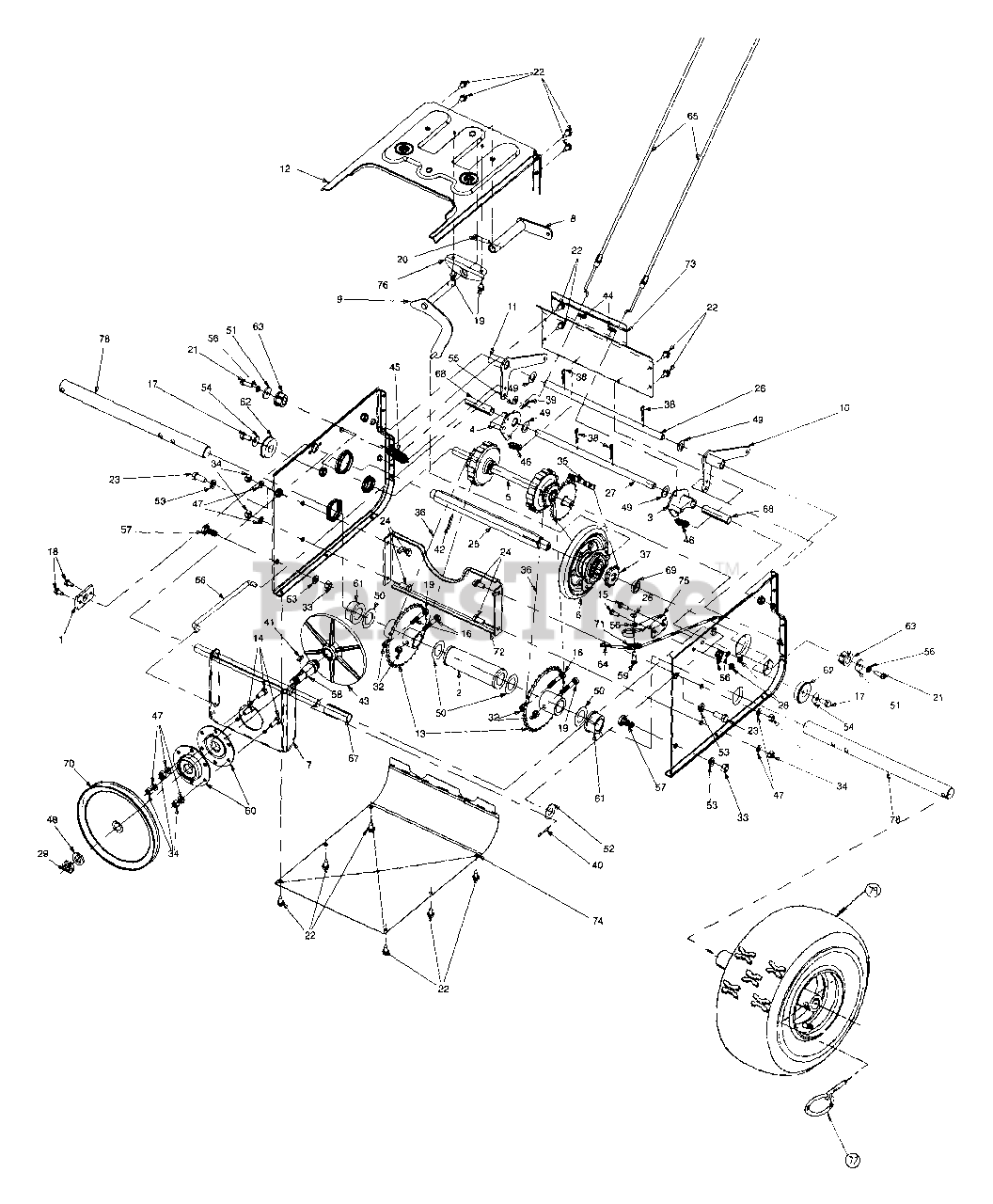

Transmission Parts Diagram

  • Title

1

MTD 05523

Pivot Axle Brkt..63 Hole - Zinc

$

$

Not available

2

MTD 618-0278

Bush Asm slev 900 Strbl
(Superseded to 918-0278)

$

$

Not available

3

MTD 618-0279

Dogg Asm Dr Lh 900 Strbl
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

4

MTD 618-0280

Dogg Asm;dr Rh 900 Strbl
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

5

MTD 618-0282

Shf Asm Dr 900 Strbl
(Superseded to 918-0282E)

$520.99

$

Usually ships in 3-6 days

0

6

MTD 618-0296

Whl Asm Brg 6.0 Od Friction
(Superseded to 918-0296B)

$192.99

$

Usually ships in 3-6 days

0

MTD 718-0494

Friction Wheel For 618-0296 Wheel Assembly
(Superseded to 918-0296B)

Note: Not Shown

$192.99

$

Usually ships in 3-6 days

0

7

MTD 684-0115

Brkt Asm Supt Friction Dr
(Superseded to 684-0115-0637)

Variations

MTD 684-0115-0637

SUPPORT ASSY-FRICT - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 684-0116

Arm Asm Shift

Variations

MTD 684-0116-0637

No Longer Available ARM ASM-S - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 684-0117

Shft Asm Rod 900 S/t

$85.99

$

Usually ships in 3-6 days

0

10

MTD 684-0118

Brkt Asm Actr Auger
(Superseded to 684-0118B-0637)

$

$

Not available

11

MTD 684-0119

Brkt Asm Actr Dr
(Superseded to 684-0119B-0637)

Variations

MTD 684-0119-0637

BRACKET AUGER ACTUATOR - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 684-0120

Frm Asm Trans 900 S/t

Variations

MTD 684-0120-0498

FRAME ASSY-TRANSMI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0120-0638

No Longer Available FRAME ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0120-0650

No Longer Available FRAME ASM - RED METALLIC (0650)

$

$

Not available

MTD 684-0120-0662

Frame Assembly - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0120-0665

No Longer Available FRAME ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0120-0716

No Longer Available FRAME ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

13

MTD 684-0122

Spkt Asm 32t

$238.99

$

Usually ships in 3-6 days

0

14

MTD 710-0116

Hex Scr 5/16-18 X .75
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 19

0

15

MTD 710-0195

Hhcs 1/4-28 .625 Gr5 std
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

16

MTD 710-0380

Hex Scr 5/16-18 X 1.75
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

17

MTD 710-0538

Hhcs 5/16-18 .625 Gr5 Lock

$4.49

$

In Stock, Qty 9

0

18

MTD 710-0599

Scr tt 1/4-20 .5 Hxindwsh

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0116

Hex Scr 5/16-18 2.00 Lg
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 19

0

20

MTD 710-0809

Scr Hexwash 1/4-20 X 1.25

$6.49

$

In Stock, Qty 20+

0

21

MTD 710-0875

Scr Tt Cl 1/4-20 .75 Hxindwsh

$3.99

$

In Stock, only 2 left!

0

22

MTD 710-0896

Scr Ab 1/4-14 .625 Hxindwsh

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-3001

Hhcs 3/8-16 .880 Gr5 Std

$6.99

$

In Stock, Qty 11

0

24

MTD 710-3008

Scr Cap 5/16-18 X .75 Gr 5

$3.99

$

In Stock, Qty 20+

0

25

MTD 711-1191

Shf Dr .875 Hex 900

$

$

Not available

26

MTD 711-1193

Shf Sctr

$

$

Not available

27

MTD 711-1194

Shf Actr Dr

$

$

Not available

28

MTD 712-0138

Hex Nut 1/4-28

$6.49

$

Usually ships in 3-6 days

0

29

MTD 712-0221

Hex Ins Jam L-nut 5/8-18

$

$

Not available

32

MTD 712-0429

Hex Ins L-nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

33

MTD 712-0798

Hex Nut 3/8-16

$3.99

$

Usually ships in 3-6 days

0

34

MTD 712-3010

Nut Hex 5/16-18 Gd 5

$4.49

$

In Stock, Qty 20+

0

35

MTD 713-0284

#41 Chain 1/2 Pitch X 36 L

$22.99

$

Usually ships in 3-6 days

0

36

MTD 713-0286

#420 Chain 1/2 Pitch X 40 L

$61.99

$

Usually ships in 3-6 days

0

37

MTD 713-0413

Spkt 10t #41 X .500

$11.99

$

Usually ships in 3-6 days

0

38

MTD 714-0101

Internal Cot-pin 1/2 Dia

$4.49

$

In Stock, only 4 left!

0

39

MTD 714-0104

Intern Cot-pin 5/16 Dia

$3.99

$

In Stock, Qty 20+

0

40

MTD 714-0115

Cotter Pin 1/8 Dia X 1

$3.99

$

In Stock, only 1 left!

0

41

MTD 714-0388

#61 Hi-pro-key 3/16 X 5/8
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

42

MTD 715-0249

Spring Pin Roll 5/32
(Superseded to 915-0249)

$6.49

$

In Stock, only 4 left!

0

43

MTD 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

44

MTD 726-0345

Plug 5/8 Snap-in

$

$

Currently unavailable

45

MTD 732-0121

Idler Extension Spring
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

46

MTD 732-0209

Extension Spring
(Superseded to 932-0209)

$7.49

$

In Stock, Qty 12

0

47

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-0158

Lock Washer 5/8

$4.49

$

In Stock, only 2 left!

0

49

MTD 736-0160

Wash Fl .531 Id X .930 Od X .05

$3.99

$

In Stock, only 2 left!

0

50

MTD 736-0163

Wash Fl 1.03 Id X 1.62 Od

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-0176

Wash Flt 1/4 Id X .930 Od X .12

$3.99

$

In Stock, Qty 20+

0

52

MTD 736-0187

Wash Flt .640 Id X 1.24 Od X .06

$4.49

$

In Stock, Qty 20+

0

53

MTD 736-0217

Lock Washer 3/8 Heavy

$3.99

$

In Stock, Qty 13

0

54

MTD 736-0242

Bell Wash .345 Id X .88 Od

$3.99

$

In Stock, Qty 20+

0

55

MTD 736-0275

Fl-wash Sae .34 X .68 .062

$6.49

$

Usually ships in 3-6 days

0

56

MTD 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

57

MTD 738-0143

Shld Scr .498 Dia X .340

$3.99

$

In Stock, Qty 20+

0

58

MTD 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

59

MTD 738-0924

Scr Shldr .340 D. 1/4 Ab
(Superseded to 738-0924A)

$6.49

$

In Stock, Qty 6

0

60

MTD 741-0163A

Asm Brg Hsg

$45.99

$

Usually ships in 3-6 days

0

61

MTD 741-0192

Flange Brg Pm W/fits 1.0
(Superseded to 941-0170)

$17.99

$

In Stock, only 2 left!

0

62

MTD 741-0563

Ball Bearing W/snap Ring
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

63

MTD 741-0597

Brg Hex Flange X .564 Id
(Superseded to 941-0597)

$11.99

$

In Stock, Qty 12

0

64

MTD 746-0951

Cb Idlr Auger
(Superseded to 946-0951A)

$41.99

$

In Stock, only 4 left!

0

65

MTD 746-0949

Cbl Strg 900 Strbl
(Superseded to 746-0949A)

$48.99

$

In Stock, only 1 left!

0

66

MTD 747-0973

Rod Clu Dr

$45.99

$

Usually ships in 3-6 days

0

67

MTD 750-1097

Spcr Spit .64 X .77 X 2.1

$

$

Not available

68

MTD 750-0903

Split Spacer 1/2 X 5/8 X 2.44
(Superseded to 750-0903B)

$9.99

$

Usually ships in 3-6 days

0

69

MTD 750-0997

Spcr .675 Id X 1.00 Od X .23
(Superseded to 950-0997)

$6.49

$

In Stock, only 4 left!

0

70

MTD 756-0344

1/2 V-pulley .62 Id X 7.5

$75.99

$

Usually ships in 3-6 days

0

71

MTD 756-0625

Cable Guide Roller

$8.99

$

In Stock, Qty 20+

0

72

MTD 784-0377

Brkt Supt Frm
(Superseded to 784-0377-0637)

Variations

MTD 784-0377-0637

SUPPORT-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 784-0379

Cvr Frm Upr

Variations

MTD 784-0379-0498

UPPER FRAME COVER - OLD CUB YELLOW (0498)

$14.99

$

Usually ships in 3-6 days

0

MTD 784-0379-0638

COVER:UPPER FRAME: - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-0379-0716

UPPER FRAME COVER - CUB YELLOW-99 (0716)

$14.99

$

Usually ships in 3-6 days

0

MTD 784-0379-0650

COVER:UPPER FRAME: - RED METALLIC (0650)

$

$

Not available

MTD 784-0379-0662

No Longer Available COVER-UPPE - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0379-0665

No Longer Available COVER-UPPE - YARDMAN GREEN (0665)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

74

MTD 784-0380

Cvr Frm Lwr

Variations

MTD 784-0380-0498

LOWER FRAME COVER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0380-0637

COVER-LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

MTD 784-0380-0638

COVER-LOWER FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0380-0650

COVER-LOWER FRAME - RED METALLIC (0650)

$

$

Not available

MTD 784-0380-0662

COVER-LOWER FRAME - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0380-0665

COVER-LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-0380-0716

LOWER FRAME COVER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

75

MTD 784-0384

Brkt Gde Auger Cbl
(Superseded to 784-0384-0637)

Variations

MTD 784-0384-0637

GUIDE-AUGER CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

76

MTD 784-5590

Shift Bracket Frame

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

77

MTD 714-0151A

Klik Pin Assy Danuse

$38.99

$

Usually ships in 3-6 days

0

78

MTD 738-0975

Axle 1.0 Od X 14.1 Lg

$169.99

$

In Stock, only 1 left!

0

79

MTD 734-1593

Cmp Whl Assy 16 X 6.5 Snohog
(Superseded to 734-1593A)

Variations

MTD 734-1593-0911

WHEEL-COMPL 16 X 6 - Carlisle Gray (0911)

$

$

Not available

MTD 734-1593-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

MTD 734-1593-0941

WHEEL-COMPL 16 X 6 - Carlisle Yellow (0941)

$

$

Not available

$225.99

$

Usually ships in 3-6 days

0
