33-08B504 (108-5) - Toro Rear-Engine Riding Mower (1988) SEAT AND SUSPENSION Parts Diagram

Rear-Engine Riding Mower

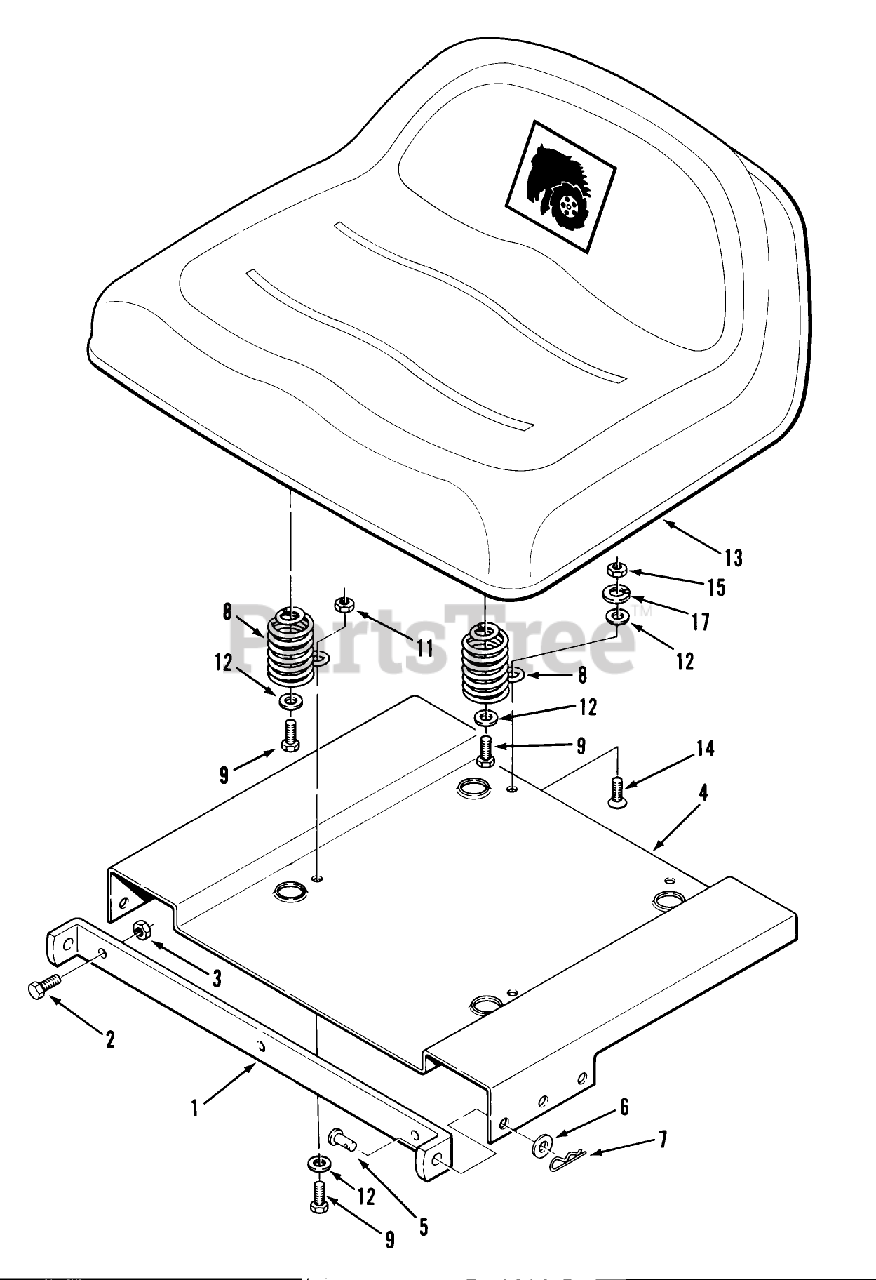

SEAT AND SUSPENSION Parts Diagram

  • Title
1

Toro Part# 114281

BRACKET-SEAT MOUN R
Usually ships same day

Not available

$

$

2

Toro Part# 908017

Bolt
(Superseded to 322-3)
Usually ships in 1 day

$

$0.77

0

3

Toro Part# 915662

Nut
(Superseded to 3296-29)
Usually ships in 1 day

$

$2.00

0

4

Toro Part# 114282

Seat Pivot Plate
Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$2.91

0

6

Toro Part# 108571

WASHER-SPRING
Usually ships in 1 day

$

$8.29

0

7

Toro Part# 933504

Hairpin
(Superseded to 9335044)
Usually ships in 1 day

$

$1.12

0

8

Toro Part# 111090

SPRING SEAT
Usually ships same day

Not available

$

$

9

Toro Part# 908017

Bolt
(Superseded to 322-3)
Usually ships in 1 day

$

$0.77

0

11

Toro Part# 915662

Nut
(Superseded to 3296-29)
Usually ships in 1 day

$

$2.00

0

12

Toro Part# 920008

WASHER 5/16 SAE
Usually ships in 1 day

$

$0.40

0

13

Toro Part# 108912

Seat
(Superseded to 78-7600)
Usually ships in 5 to 8 days

$

$359.34

0

Toro Part# 105999

Seat 310-8
(Superseded to 78-7600)
Usually ships in 5 to 8 days

$

$359.34

0

14

Toro Part# 908835

Screw 5/16-18 X 3/4
Usually ships same day

Currently unavailable

$

$

15

Toro Part# 915112

Nut
(Superseded to 3217-6)
Usually ships in 1 day

$

$1.11

0

17

Toro Part# 920082

Lockwasher
(Superseded to 3253-4)
Usually ships in 1 day

$

$0.73

0
