38052 (521) - Toro 21" Snow Thrower (SN: 049000001 - 049999999) (1994) Engine Tecumseh Model Hssk50-67259m Parts Diagram

21" Snow Thrower

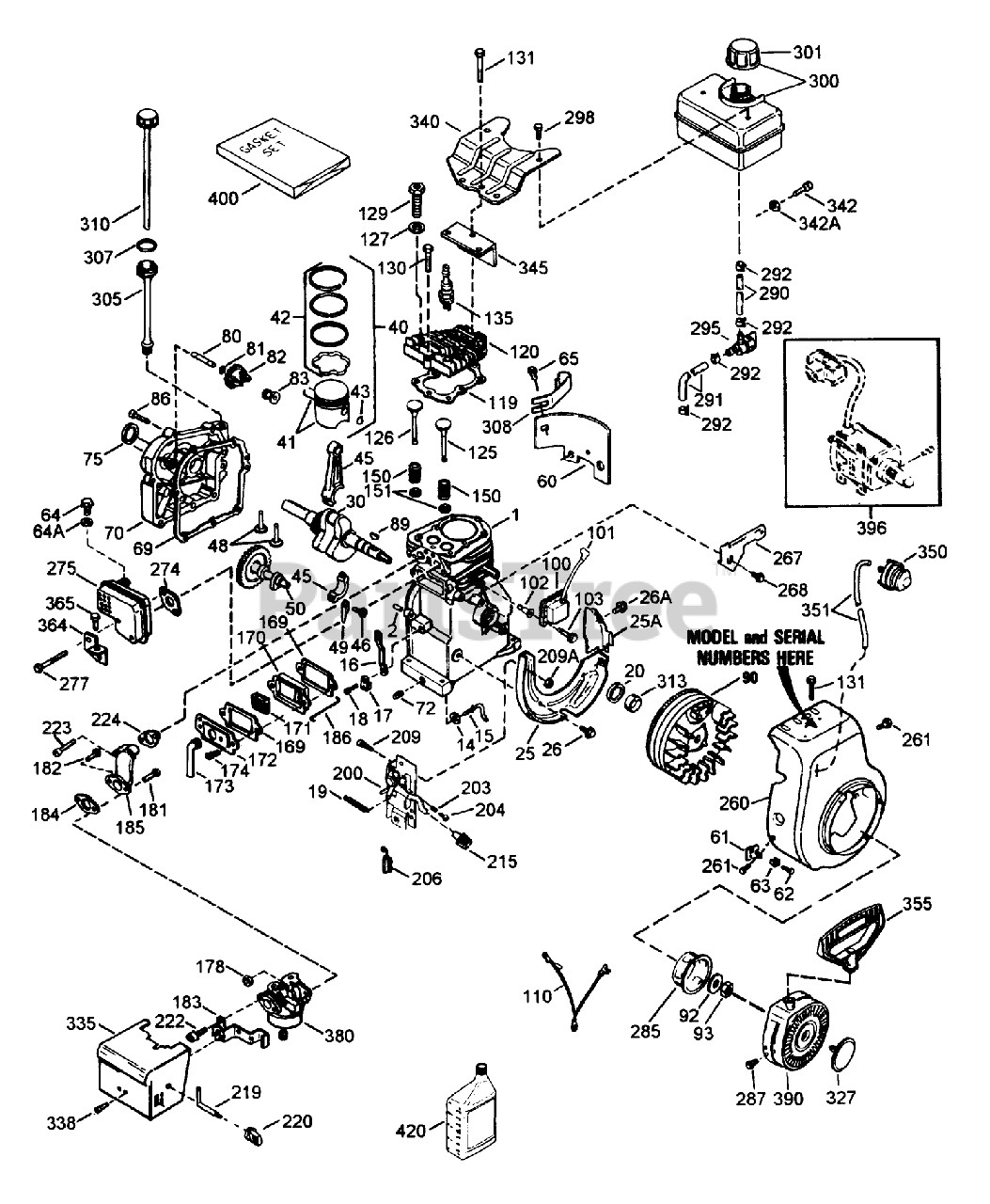

Engine Tecumseh Model Hssk50-67259m Parts Diagram

  • Title

1

Toro 33674B

Cylinder Assembly (Incl. Ref. #3, 7 45)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

14

Toro 28277

Washer-Flat

$

$

Currently unavailable

15

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

16

Toro 31510

Lever-Governor

$

$

Currently unavailable

17

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

18

Toro 650548

Screw

$

$

Currently unavailable

19

Toro 31426

Spring-Extension

$

$

Currently unavailable

20

Toro 32600

Seal-Oil

$

$

Currently unavailable

25

Toro 33342

Baffle-Blower Housing
(Superseded to 704713)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement Speed Control Assembly Includes screw and nuts. Baffle has threaded holes

$

$

Not available

25A

Toro 650139

Screw

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement Speed Control Assembly Includes screw and nuts. Baffle has threaded holes

$

$

Currently unavailable

26

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

26A

Seat and Suspension ASM

$

$

Not available

30

Toro 34740

Crankshaft ASM

$

$

Currently unavailable

40

Toro 34535

Piston, Pin Ring Assy., (Incl. Ref. #15 16) (Std.)

$

$

Currently unavailable

Toro 34536

Piston, Pin Ring Assy., (Incl. Ref. #15 16) (.010 Oversize)

$

$

Currently unavailable

Toro 34537

Piston, Pin Ring Assy., (Incl. Ref. #15 16) (.020 Oversize)

$

$

Currently unavailable

41

Toro 33562B

Piston Pin Assy. (Incl. Ref. #16) (Std.)

$

$

Currently unavailable

Toro 33563B

Piston Pin Assy., (Incl. Ref. #16) (.010 Oversize)

$

$

Currently unavailable

Toro 33564B

Piston Pin Assy. (Incl. Ref. #16) (.020 Oversize)

$

$

Currently unavailable

42

Toro 33567

Ring Set-Piston Std.

$

$

Currently unavailable

Toro 33568

Ring Set-Piston .010 oversize

$

$

Currently unavailable

Toro 33569

Ring Set-Piston .020 oversize

$

$

Currently unavailable

43

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

45

Toro 32875

Rod Assembly, Connecting (Incl. Nos. 17 18)

$

$

Currently unavailable

46

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

48

Toro 27241

Lifter-Valve

$

$

Currently unavailable

49

Toro 32654

Dipper-Oil

$

$

Currently unavailable

50

Toro 33158

Camshaft

$

$

Currently unavailable

60

Toro 29745

Extension-Blower

$

$

Currently unavailable

61

Toro 34126

Bracket

$

$

Currently unavailable

62

Toro 650760

Screw (8-32 x 3/8)

$

$

Currently unavailable

63

Toro 28545

Grommet

$

$

Currently unavailable

64

Toro 30063

Screw

$

$

Currently unavailable

64A

Toro 8345

Washer

$

$

Currently unavailable

65

Toro 650128

Screw

$

$

Currently unavailable

69

Toro 27677A

Gasket-Cover, Cylinder

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

70

Toro 34674C

Cover-Cylinder (Incl. Ref. #75 80)

$

$

Currently unavailable

72

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

75

Toro 27897

Seal-Oil

$

$

Currently unavailable

80

Toro 30574A

Shaft-Governor

$

$

Currently unavailable

81

Toro 30590A

Washer-Flat

$

$

Currently unavailable

82

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

83

Toro 30588A

Spool-Governor

$

$

Currently unavailable

86

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

89

Toro 610961

Key-Flywheel

$

$

Currently unavailable

90

Toro 611081

CLAMP

$

$

Not available

92

Toro 650815

Washer-Belleville

$

$

Currently unavailable

93

Toro 650863

Nut-Flywheel

$

$

Currently unavailable

100

Toro 34443A

Solid State

$

$

Currently unavailable

101

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

102

Toro 650872

Stud

$

$

Currently unavailable

103

Toro 650814

Screw

$

$

Currently unavailable

110

Toro 35557

Wire-Ground

$

$

Currently unavailable

119

Toro 36443

Gasket-Head, Cylinder

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

120

Toro 36441

Head-Cylinder (Incl. Ref. #131)

$

$

Currently unavailable

125

Toro 29313C

Valve, Exhaust (Std.)(Incl. No. 40)

$

$

Currently unavailable

Toro 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Currently unavailable

126

Toro 32644A

Valve-Intake Standard (Incl. Ref. #151)

$

$

Currently unavailable

Toro 32645A

Valve-Intake 1/32" oversize (Incl. Ref. #151)

$

$

Currently unavailable

127

Toro 650691

Washer-Flat

$

$

Currently unavailable

129

Toro 650818

Screw ( 5/16-18 x 1-1/2)

$

$

Currently unavailable

130

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

131

Toro 650694A

Screw (5/16-18 X 2)

$

$

Currently unavailable

135

Toro 35395

Spark Plug-Resistor (R J19 L M)

$

$

Currently unavailable

150

Toro 31672

Spring-Valve

$

$

Currently unavailable

151

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

169

Toro 27234A

Gasket-Cover, Valve

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

170

Toro 27666

Body-Breather
(Superseded to 704563)

$179.99

$

Usually ships in 3-6 days

0

171

Toro 31410

Element-Breather

$

$

Currently unavailable

172

Toro 34146

Cover-Breather

$

$

Currently unavailable

173

Toro 35350

Tube-Breather

$

$

Currently unavailable

174

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

178

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

181

Toro 650870

Screw (1/4-28 x 1-11/16)

$

$

Currently unavailable

182

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

183

Toro 34583

Bracket-Choke

$

$

Currently unavailable

184

Toro 26756

Gasket

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

185

Toro 33691

Pipe-Intake

$

$

Currently unavailable

186

Toro 32698

Link-Governor to Throttle

$

$

Currently unavailable

200

Toro 33858A

Control Assembly, Speed (Incl. Ref. #155 thru 158 160)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement Speed Control Assembly Includes screw and nuts. Baffle has threaded holes

$

$

Currently unavailable

203

Toro 31342

Spring-Compression

$

$

Currently unavailable

204

Toro 650549

Screw

$

$

Currently unavailable

206

Toro 610973

Terminal

$

$

Currently unavailable

209

Toro 650139

Screw

$

$

Currently unavailable

209A

Toro 30322

Nut-Lock

$

$

Currently unavailable

215

Toro 35440

Knob-Control

$

$

Currently unavailable

219

Toro 34582

Rod-Choke

$

$

Currently unavailable

220

Toro 35438

Knob-Control
(Superseded to 742440)

$

$

Not available

222

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

223

Toro 650664

Screw (1/4-20 x 1-19/32)

$

$

Currently unavailable

224

Toro 33673A

Gasket-Intake

Note: Indicated Parts included in Gasket Set Ref. Num 400

$

$

Currently unavailable

260

Toro 35656A

Housing-Blower

$

$

Currently unavailable

261

Toro 29212

Screw

$

$

Currently unavailable

267

Toro 34212

Bracket-Hold Down

$

$

Currently unavailable

268

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

272

Toro 650735

Screw (10-24 x 3/8)

$

$

Currently unavailable

274

Toro 33670A

Gasket-Exhaust

Note: Indicated Part included in Gasket Set ref. Num 400

$

$

Currently unavailable

275

Toro 35771

MANUAL

$

$

Not available

277

Toro 650327

Screw-Fil. Hd.

$

$

Currently unavailable

285

Toro 34694

Cup-Starter

$

$

Currently unavailable

287

Toro 650926

Screw (8-32 x 21/64)

$

$

Currently unavailable

290

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

291

Toro 30705

Line-Fuel

$

$

Currently unavailable

292

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

295

Toro 35857

Valve-Shut Off, Fuel

$

$

Currently unavailable

298

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

300

Toro 35584

Tank Assembly-Fuel (Incl. Ref. #250 253)
(Superseded to 704775)

$

$

Not available

301

Toro 35355

Cap-Fuel

$

$

Currently unavailable

305

Toro 35554

Tube-Fill, Oil

$

$

Currently unavailable

307

Toro 35499

O-Ring

$

$

Currently unavailable

308

Toro 35539

Clip-Tube, Fill

$

$

Currently unavailable

310

Toro 35556

Dipstick

$

$

Currently unavailable

313

Toro 34080

Spacer

$

$

Currently unavailable

327

Toro 35392

Plug Starter

$

$

Currently unavailable

335

Toro 35072

Cover-Carburetor

$

$

Currently unavailable

338

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

340

Toro 36247

Plate-Fuel Tank

$

$

Currently unavailable

342

Toro 30063

Screw

$

$

Currently unavailable

342A

Toro 650675

Washer

$

$

Currently unavailable

345

Toro 33344

Baffle-Heat

$

$

Currently unavailable

350

Toro 570682

Primer-Asm

$

$

Currently unavailable

351

Toro 32180C

Line-Primer

$

$

Currently unavailable

355

Toro 590574

Handle-Starter, Mitten Grip

$

$

Currently unavailable

364

Toro 33333

Bracket-Cover, Carburetor
(Superseded to 740348)

$

$

Not available

365

Toro 650735

Screw (10-24 x 3/8)

$

$

Currently unavailable

380

Toro 632107A

Carburetor (Incl. Ref. #96)

$

$

Currently unavailable

390

Toro 590646

Rewind Starter

$

$

Currently unavailable

396

Toro 33290D

Motor-Electric Starter

$

$

Currently unavailable

400

Toro 36444

Gasket Set (Incl. Parts Marked *)(26756 (1), 27234A (2), 27272A (1), 27677A (1) 29673 (1), 36443 (1), 33670A (1), 33673A (1)

$

$

Currently unavailable

420

Toro 730226

Oil-Engine (SAE 5W30)

$

$

Currently unavailable
