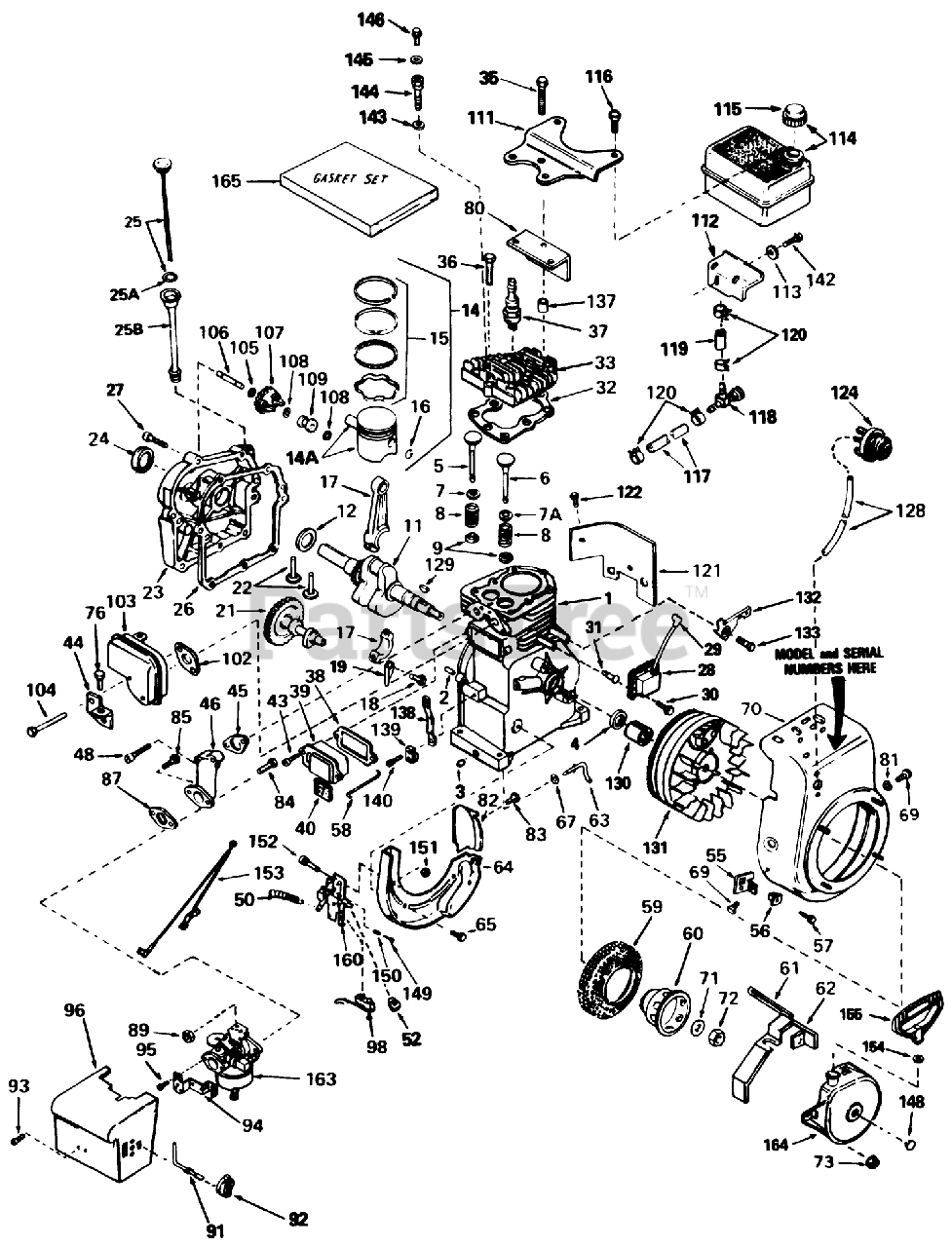

38056 (521) - Toro 21" Snow Thrower (SN: 006000001 - 006999999) (1986) Engine Tecumseh Model Hs50-67259f Parts Diagram

21" Snow Thrower

Engine Tecumseh Model Hs50-67259f Parts Diagram

  • Title

1

Toro 33674A

Cylinder Assembly (Incl. Ref. #2, 3 4)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 32644A

Valve-Intake Standard (Incl. Ref. #151)

$

$

Currently unavailable

5

Toro 32645A

Valve-Intake 1/32" oversize (Incl. Ref. #151)

$

$

Currently unavailable

6

Toro 29313C

Valve, Exhaust (Std.)(Incl. No. 40)

$

$

Currently unavailable

6

Toro 29315C

Valve, Intake (1/32" oversize)(Incl. No. 40)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

7A

Toro 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

8

Toro 31672

Spring-Valve

$

$

Currently unavailable

9

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 34740

Crankshaft ASM

$

$

Currently unavailable

12

Toro 32323

Washer-Thrust

$

$

Currently unavailable

14

Toro 34535

Piston, Pin Ring Assy., (Incl. Ref. #15 16) (Std.)

$

$

Currently unavailable

14

Toro 34536

Piston, Pin Ring Assy., (Incl. Ref. #15 16) (.010 Oversize)

$

$

Currently unavailable

14

Toro 34537

Piston, Pin Ring Assy., (Incl. Ref. #15 16) (.020 Oversize)

$

$

Currently unavailable

14A

Toro 33562B

Piston Pin Assy. (Incl. Ref. #16) (Std.)

$

$

Currently unavailable

14A

Toro 33563B

Piston Pin Assy., (Incl. Ref. #16) (.010 Oversize)

$

$

Currently unavailable

14A

Toro 33564B

Piston Pin Assy. (Incl. Ref. #16) (.020 Oversize)

$

$

Currently unavailable

15

Toro 33567

Ring Set-Piston Std.

$

$

Currently unavailable

15

Toro 33568

Ring Set-Piston .010 oversize

$

$

Currently unavailable

15

Toro 33569

Ring Set-Piston .020 oversize

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 32875

Rod Assembly, Connecting (Incl. Nos. 17 18)

$

$

Currently unavailable

18

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

19

Toro 32654

Dipper-Oil

$

$

Currently unavailable

21

Toro 33158

Camshaft

$

$

Currently unavailable

22

Toro 27241

Lifter-Valve

$

$

Currently unavailable

23

Toro 34674A

Cover-Cylinder (Incl. Ref. #59 72)

$

$

Currently unavailable

24

Toro 27897

Seal-Oil

$

$

Currently unavailable

25

Toro 34676

Dipstick

$

$

Currently unavailable

25A

Toro 33590

O-Ring
(Superseded to 700165)

$3.99

$

Usually ships in 3-6 days

0

25B

Toro 33893A

Tube Fill

$

$

Currently unavailable

26

Toro 27677

Gasket-Cylinder Cover

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

27

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

28

Toro 34443A

Solid State

$

$

Currently unavailable

29

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

30

Toro 650814

Screw

$

$

Currently unavailable

31

Toro 650872

Stud

$

$

Currently unavailable

32

Toro 33554

Oil Fill Tube

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

33

Toro 33016

Head Cylinder

$

$

Currently unavailable

35

Toro 650694A

Screw (5/16-18 X 2)

$

$

Currently unavailable

36

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

37

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

37

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

38

Toro 31619

Gasket Breather

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

39

Toro 31337

Breather Assembly (Incl. Nos. 52 84)

$

$

Currently unavailable

40

Toro 31410

Element-Breather

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

44

Toro 33333

Bracket-Cover, Carburetor
(Superseded to 740348)

$

$

Not available

45

Toro 33673

Gasket-Intake

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

46

Toro 33691

Pipe-Intake

$

$

Currently unavailable

48

Toro 650664

Screw (1/4-20 x 1-19/32)

$

$

Currently unavailable

50

Toro 31426

Spring-Extension

$

$

Currently unavailable

52

Toro 32410

Knob-Control

$

$

Currently unavailable

55

Toro 34126

Bracket

$

$

Currently unavailable

56

Toro 28545

Grommet

$

$

Currently unavailable

57

Toro 650643

Screw

$

$

Currently unavailable

58

Toro 32698

Link-Governor to Throttle

$

$

Currently unavailable

59

Toro 35185

Screen-Starter

$

$

Currently unavailable

60

Toro 34694

Cup-Starter

$

$

Currently unavailable

61

Toro 32576

Seal, Snowguard

$

$

Currently unavailable

62

Toro 34127

Guard-Starter

$

$

Currently unavailable

63

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

64

Toro 3342

Baffle-Blower Housing

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

67

Toro 28277

Washer-Flat

$

$

Currently unavailable

69

Toro 29212

Screw

$

$

Currently unavailable

70

Toro 34813A

Housing-Blower

$

$

Currently unavailable

71

Toro 650815

Washer-Belleville

$

$

Currently unavailable

72

Toro 650863

Nut-Flywheel

$

$

Currently unavailable

73

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

76

Toro 650735

Screw (10-24 x 3/8)

$

$

Currently unavailable

80

Toro 33344

Baffle-Heat

$

$

Currently unavailable

81

Toro 650168

Washer

$

$

Currently unavailable

82

Toro 33341

Baffle-Extension

$

$

Currently unavailable

83

Toro 650701

Screw-Hex Washer Hd.

$

$

Currently unavailable

84

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

85

Toro 650870

Screw (1/4-28 x 1-11/16)

$

$

Currently unavailable

87

Toro 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

91

Toro 34582

Rod-Choke

$

$

Currently unavailable

92

Toro 34585

Knob-Control

$

$

Currently unavailable

93

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

94

Toro 34583

Bracket-Choke

$

$

Currently unavailable

95

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

96

Toro 35072

Cover-Carburetor

$

$

Currently unavailable

98

Toro 610973

Terminal

$

$

Currently unavailable

102

Toro 33670

Gasket-Exhaust

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$

$

Currently unavailable

103

Toro 33697A

Muffler

$

$

Currently unavailable

104

Toro 650327

Screw-Fil. Hd.

$

$

Currently unavailable

105

Toro 30590A

Washer-Flat

$

$

Currently unavailable

106

Toro 30574

Shaft-Governor

$

$

Currently unavailable

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

111

Toro 28371

Bracket, Fuel Tank-Upper

$

$

Currently unavailable

112

Toro 34182

Bracket-Fuel Tank

$

$

Currently unavailable

113

Toro 650675

Washer

$

$

Currently unavailable

114

Toro 34711

481-1261 SENATOR TI

$3.23

$

Usually ships in 3-6 days

0

115

Toro 34210

Cap, Fuel

$

$

Currently unavailable

116

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

117

Toro 30705

Line-Fuel

$

$

Currently unavailable

118

Toro 32961

Valve-Shut Off

$

$

Currently unavailable

119

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

120

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

121

Toro 29745

Extension-Blower

$

$

Currently unavailable

122

Toro 650128

Screw

$

$

Currently unavailable

124

Toro 34814

Primer Assy.

$

$

Currently unavailable

128

Toro 32180C

Line-Primer

$

$

Currently unavailable

129

Toro 610961

Key-Flywheel

$

$

Currently unavailable

130

Toro 34080

Spacer

$

$

Currently unavailable

131

Toro 611081

CLAMP

$

$

Not available

132

Toro 34212

Bracket-Hold Down

$

$

Currently unavailable

133

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

137

Toro 28212

pacer

$

$

Currently unavailable

138

Toro 31510

Lever-Governor

$

$

Currently unavailable

139

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

140

Toro 650548

Screw

$

$

Currently unavailable

142

Toro 650805

Screw Assembly

$

$

Currently unavailable

143

Toro 650691

Washer-Flat

$

$

Currently unavailable

144

Toro 650818

Screw ( 5/16-18 x 1-1/2)

$

$

Currently unavailable

145

Toro 8345

Washer

$

$

Currently unavailable

146

Toro 30688

Screw

$

$

Currently unavailable

148

Toro 35161

Plug-Starter

$

$

Currently unavailable

149

Toro 650549

Screw

$

$

Currently unavailable

150

Toro 31342

Spring-Compression

$

$

Currently unavailable

151

Toro 30322

Nut-Lock

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

152

Toro 650139

Screw

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

153

Toro 35253

Ground Wire

$

$

Currently unavailable

154

Toro 27261

Washer

$

$

Currently unavailable

155

Toro 590574

Handle-Starter, Mitten Grip

$

$

Currently unavailable

160

Toro 33858A

Control Assembly, Speed (Incl. Ref. #155 thru 158 160)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

163

Toro 632107

Carburetor (Incl. Ref. #87)

$

$

Currently unavailable

164

Toro 590604

Starter-Rewind

$

$

Currently unavailable

165

Toro 33683

Gasket Set

$

$

Currently unavailable
