38095 (1132) - Toro 32" Snow Thrower (SN: 001000001 - 001999999) (1981) ENGINE MODEL NO. 252416 TYPE 0190-01 (MODEL 38095) Parts Diagram

32" Snow Thrower

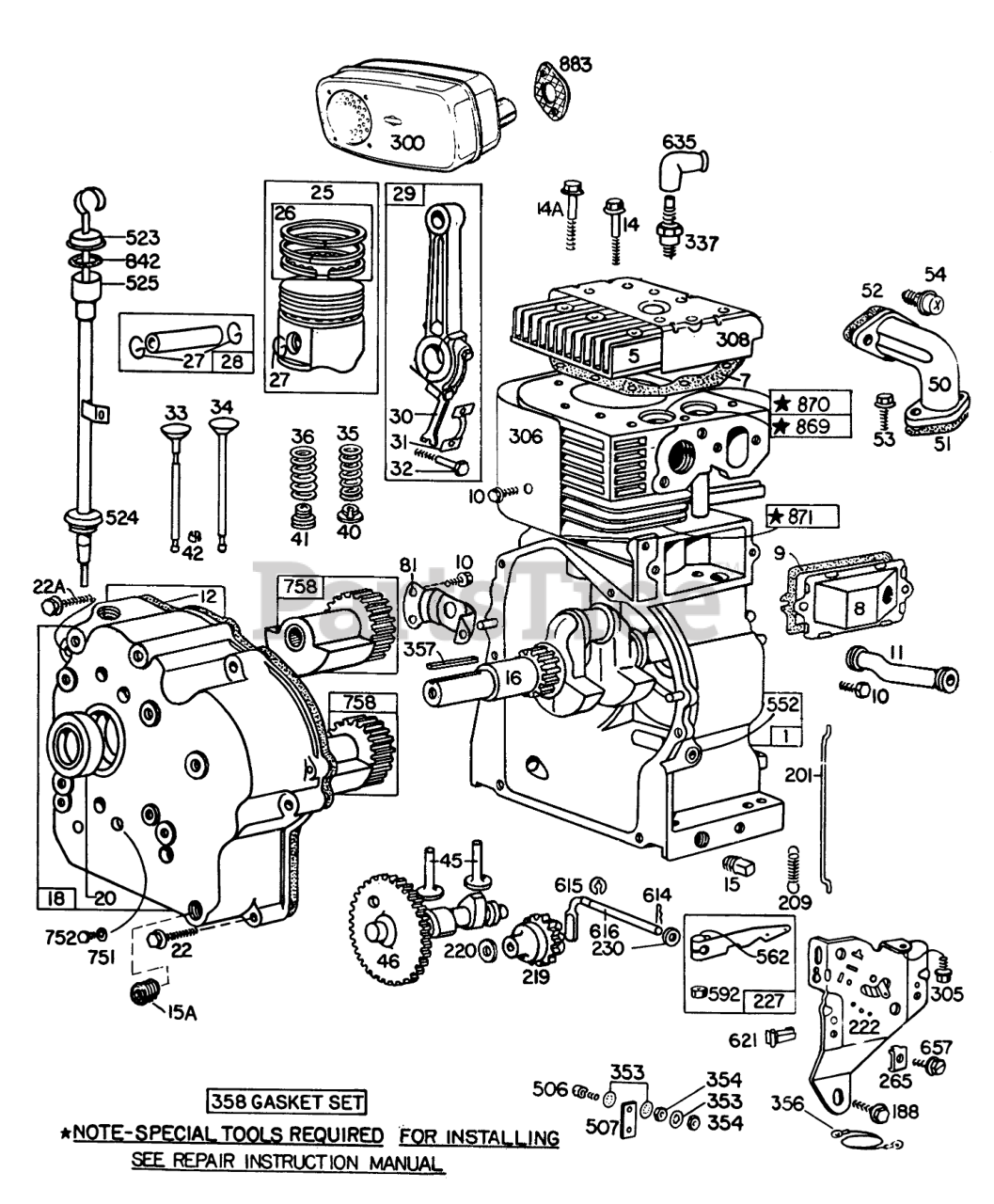

ENGINE MODEL NO. 252416 TYPE 0190-01 (MODEL 38095) Parts Diagram

  • Title

1

Toro 393413

Cylinder Assembly

$

$

Currently unavailable

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 212305

Head Cylinder
(Superseded to 212917)

$89.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 271075

Gasket-Cylinder Hd.
(Superseded to 271866S)

$9.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 391575

Breather Assembly
(Superseded to 495736)

$42.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 393421.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280112

Tube-Breather

$11.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 270856

Gasket-Crankcase Cover-1/64"Thick
(Superseded to 692281)

Note: Included in Gasket Set-Part No. 393421.

$7.49

$

In Stock, only 1 left!

0

Briggs & Stratton 270857

Gasket-Crankcase Cover-.005" thick
(Superseded to 272219)

Note: Included in Gasket Set-Part No. 393421.

$

$

Not available

Briggs & Stratton 270858

Gasket-Crankcase Cover-.009" Thick
(Superseded to 272220)

Note: Included in Gasket Set-Part No. 393421.

$14.99

$

In Stock, Qty 6

0

14

Briggs & Stratton 93723

Screw-Cylinder Head
(Superseded to 690904)

$11.99

$

In Stock, Qty 6

0

14A

Briggs & Stratton 93211

Screw-Cylinder Head
(Superseded to 592244)

$3.49

$

In Stock, Qty 13

0

15

Briggs & Stratton 91084

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

15A

Briggs & Stratton 93418

Plug
(Superseded to 691680)

$5.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 261336

Crankshaft
(Superseded to 491644)

$242.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 391747

Cover Assy.-Crankcase
(Superseded to 496985)

$255.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, Qty 7

0

Briggs & Stratton 90366

Lockwasher
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

22A

Briggs & Stratton 93764

Screw-Crankcase
(Superseded to 694966)

$5.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 391988

Flywheel and Ring Gear
(Superseded to 692048)

$193.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 391285

Assembly-Standard
(Superseded to 499956)

$

$

Not available

Briggs & Stratton 391287

Piston Assy.-.010" O.S.

$

$

Not available

Briggs & Stratton 391288

Piston Assy.-.020" O.S.
(Superseded to 499958)

$158.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391289

Piston Assy.-.030" O.S.

$

$

Not available

26

Briggs & Stratton 391780

Ring Set (Std.)
(Superseded to 499996)

$53.99

$

In Stock, only 3 left!

0

Briggs & Stratton 391781

Ring Set (.010 O.S.)

$

$

Not available

Briggs & Stratton 391782

Ring Set (.020 O.S.)
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391783

Ring Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston (Std.)

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391286

Pin-Piston (.005" OS.)

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 391816

Rod Assembly-Connecting
(Superseded to 490348)

$50.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 222329

Dipper-Conn. Rod
(Superseded to 690405)

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222299

Lock-Screw

$

$

Not available

32

Briggs & Stratton 92909

Screw-Conn. Rod
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 261185

Valve-Exhaust
(Superseded to 691796)

$43.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 261462

Valve-Intake
(Superseded to 690429)

$29.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 93630

Retainer-Rotocoil
(Superseded to 494553)

$7.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 261183

Tappet Valve
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212296

Gear-Cam
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 212301

Elbow-Intake

$64.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 270267

Gasket-Barab. Mtg
(Superseded to 692214)

Note: Included in Gasket Set-Part No. 393421.

$4.99

$

In Stock, Qty 11

0

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

Note: Included in Gasket Set-Part No. 393421.

$5.49

$

In Stock, Qty 5

0

53

Briggs & Stratton 93415

Screw
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, Qty 7

0

55

Briggs & Stratton 393576

Housing-Rewind

$85.99

$

In Stock, only 2 left!

0

56

Briggs & Stratton 295871

Pulley-Rewind Starter (Includes 63" Rope)

$14.99

$

In Stock, only 3 left!

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$14.99

$

In Stock, Qty 12

0

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 4 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, only 4 left!

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 393117

Clutch Assy.-Rewind Starter
(Superseded to 399671)

$34.99

$

In Stock, Qty 15

0

67

Briggs & Stratton 261453

Housing
(Superseded to 394897)

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 66718

Washer-Thrust
(Superseded to 690271)

$8.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, only 1 left!

0

73

Briggs & Stratton 221796

Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, only 1 left!

0

81

Briggs & Stratton 222407

Retainer-Counterweight
(Superseded to 691172)

$9.99

$

In Stock, only 1 left!

0

100

Briggs & Stratton 61967

Stop-Throttle
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 270268

Gasket-Carburetor Body
(Superseded to 692215)

Note: Included in Carburetor Overhaul Kit-Part No. 391071

$5.49

$

In Stock, Qty 5

0

103

Briggs & Stratton 298514

Float-Carburetor
(Superseded to 692265)

$11.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 391071

$3.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 299096

Valve-FuelInlet
(Superseded to 394681)

$7.99

$

In Stock, Qty 16

0

107

Briggs & Stratton 391829

Body Assy-Lower Carb.

$109.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 391836

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 391884

Shaft/Lever-Choke

$9.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 62899

Washer-Choke Lever
(Superseded to 691186)

$4.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 8

0

112

Briggs & Stratton 23123

Screw-Choke Lever
(Superseded to 691587)

$6.49

$

In Stock, only 4 left!

0

113

Briggs & Stratton 390950

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 391071

$24.99

$

In Stock, only 3 left!

0

114

Briggs & Stratton 68667

Gasket-Nozzle
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-Part No. 391071

$6.49

$

In Stock, Qty 11

0

118

Briggs & Stratton 99525

Value-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-Part No. 391071

$12.99

$

In Stock, only 3 left!

0

119

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

121

Briggs & Stratton 391071

Carburetor Overhaul Kit
(Superseded to 394989)

$39.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221747

Plug-Welch
(Superseded to 690627)

$5.49

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 93453

Nut-Wing
(Superseded to 691331)

$5.99

$

In Stock, Qty 6

0

166

Briggs & Stratton 231007

Stud Air Cleaner
(Superseded to 691241)

$

$

Not available

171

Briggs & Stratton 92129

Nut
(Superseded to 690284)

$2.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 290816

Tank Assy.,Fuel

$118.99

$

Usually ships in 2-12 days

0

181

Briggs & Stratton 297866

Cap-Fuel Tank
(Superseded to 791545)

$11.99

$

In Stock, only 3 left!

0

182

Briggs & Stratton 222333

Bracket-Fuel Tank

$14.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 291367

Strap Assy, Fuel Tank

$60.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 91257

Screw-Machine Fil. Hd.
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 90970

Nut-Square
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

Fuel-Hose
(Superseded to 791745)

$10.99

$

In Stock, Qty 7

0

90

Briggs & Stratton 391992

Carburator Assembly

$205.99

$

In Stock, only 1 left!

0

91

Toro 391883

Body Assembly-Upper Carburetor

$

$

Currently unavailable

92

Briggs & Stratton 298759

Body-Upper Carb.
(Superseded to 391833)

$128.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 391071

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 221939

Valve-Throttle
(Superseded to 691727)

$6.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 391596

Shaft/Lever-Throttle

$41.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

199

Briggs & Stratton 297563

Outlet-Fuel Tank
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

201

Briggs & Stratton 261236

Link-Governor

$

$

Not available

209

Briggs & Stratton 260695

Spring
(Superseded to 796260)

$4.99

$

In Stock, Qty 7

0

219

Briggs & Stratton 391737

Gear Governor

$38.99

$

In Stock, only 4 left!

0

220

Briggs & Stratton 221551

Washer-Thrust
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

222

Briggs & Stratton 391633

Plate-Gov. Control

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 391732

Lever Assy.-Governor

$13.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

231

Briggs & Stratton 93064

Screw
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

240

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

244

Briggs & Stratton 230318

Connector-Fuel
(Superseded to 691764)

$14.99

$

In Stock, Qty 5

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, only 1 left!

0

300

Briggs & Stratton 392101

Muffler-Exhaust
(Superseded to 498984S)

$84.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 392738

Housing-Blower
(Superseded to 490446)

$49.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

306

Briggs & Stratton 222744

Shield-Cylinder
(Superseded to 690489)

$19.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 222306

Cover Cyl. Head
(Superseded to 224892)

$15.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 298968

Armature Assembly

$

$

Not available

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

339

Briggs & Stratton 391284

Breaker Assy.-Ignition

$44.99

$

Usually ships in 2-12 days

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, only 1 left!

0

343

Toro 391792

Condenser

$

$

Currently unavailable

345

Briggs & Stratton 222517

Cover-Breaker Point

$3.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

353

Briggs & Stratton 92791

Washer-Lock
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

354

Briggs & Stratton 90576

Nut
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356

Briggs & Stratton 391602

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

357

Briggs & Stratton 91540

Key-Pulley
(Superseded to 691483)

$6.99

$

In Stock, only 3 left!

0

358

Toro 393421

Gasket Set

$

$

Currently unavailable

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, only 1 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 90200

Screw-Terminal

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 66895

InsuIator

$4.99

$

In Stock, only 2 left!

0

523

Briggs & Stratton 392295

Dipstick/Filler Oil
(Superseded to 490665)

$13.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Fill Tube
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 392283

Tube-Oil Filler
(Superseded to 496517)

$45.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 231056

Crank-Governor
(Superseded to 491893)

$107.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

590

Briggs & Stratton 93226

Screw-Hex Head
(Superseded to 690295)

$6.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 11

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

608

Briggs & Stratton 390391

Rewind Starter
(Superseded to 693900)

$131.99

$

In Stock, only 1 left!

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 4 left!

0

616

Briggs & Stratton 231057

Ring-Retainer
(Superseded to 692015)

$16.99

$

In Stock, only 2 left!

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 16

0

645

Briggs & Stratton 23513

Bushing-Plunger

$2.49

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

682

Briggs & Stratton 211516

Shield

$4.49

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear-Flywheel Ring (Includes Mounting Parts)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 221940

Guard-Ring Gear
(Superseded to 690490)

$14.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 221907

CIip-Wire

$3.49

$

Usually ships in 2-12 days

0

751

Briggs & Stratton 22355

Washer
(Superseded to 690258)

$6.99

$

In Stock, only 1 left!

0

752

Briggs & Stratton 93554

Screw
(Superseded to 690304)

$3.99

$

In Stock, only 1 left!

0

758

Briggs & Stratton 391481

Counterweight & Bearing
(Superseded to 691369)

$33.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270933

Seal-"O" Ring

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

855

Briggs & Stratton 231145

Stack-Carburetor

$7.49

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 261463

Seat-Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 210940

Seat-Exhaust Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Toro 230665

Guide-Exhaust Valve

$

$

Currently unavailable

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0

878

Briggs & Stratton 393362

Harness-Alternator
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

879

Briggs & Stratton 222726

Strap

$7.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 270917

Gasket Exhaust
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0
