38160 (1132) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) ENGINE 252416 TYPE NO. 0190-01 (11 H.P. SNOWTHROWER MODEL 38160)BRIGGS & STRATTON Parts Diagram

Snow Thrower

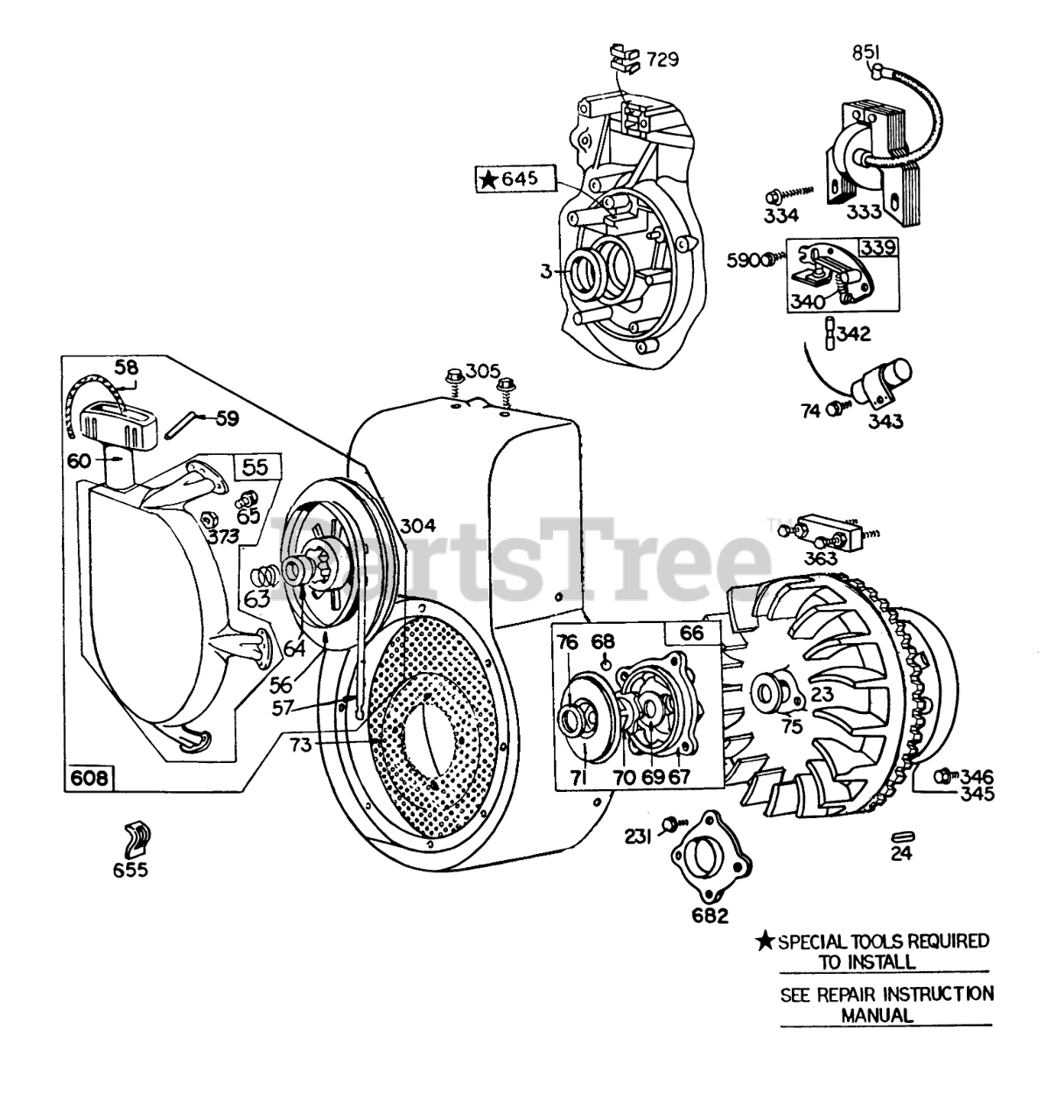

ENGINE 252416 TYPE NO. 0190-01 (11 H.P. SNOWTHROWER MODEL 38160)BRIGGS & STRATTON Parts Diagram

  • Title

3

Toro 91086

Seal-Oil

$

$

Currently unavailable

23

Toro 91988

Flywheel and Ring Gear Assy.-Magneto

$

$

Currently unavailable

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 393576

Housing-Rewind

$85.99

$

In Stock, only 2 left!

0

56

Briggs & Stratton 295871

Pulley-Rewind Starter (Includes 63" Rope)

$14.99

$

In Stock, only 4 left!

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$14.99

$

In Stock, Qty 13

0

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 4 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 393117

Clutch Assy.-Rewind Starter
(Superseded to 399671)

$34.99

$

In Stock, Qty 15

0

67

Briggs & Stratton 261453

Housing
(Superseded to 394897)

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 66718

Washer-Thrust
(Superseded to 690271)

$8.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, only 1 left!

0

73

Briggs & Stratton 221796

Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, only 1 left!

0

231

Briggs & Stratton 93064

Screw
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

304

Briggs & Stratton 392738

Housing-Blower
(Superseded to 490446)

$49.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 298968

Armature Assembly

$

$

Not available

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

339

Briggs & Stratton 391284

Breaker Assy.-Ignition

$44.99

$

Usually ships in 2-12 days

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, only 1 left!

0

343

Toro 391792

Condenser

$

$

Currently unavailable

345

Briggs & Stratton 222517

Cover-Breaker Point

$3.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

590

Briggs & Stratton 93226

Screw-Hex Head
(Superseded to 690295)

$6.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 390391

Rewind Starter
(Superseded to 693900)

$131.99

$

Usually ships in 2-12 days

0

645

Briggs & Stratton 23513

Bushing-Plunger

$2.49

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211516

Shield

$4.49

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 221907

CIip-Wire

$3.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
