38160 (1132) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY (MODEL 38160) Parts Diagram

Snow Thrower

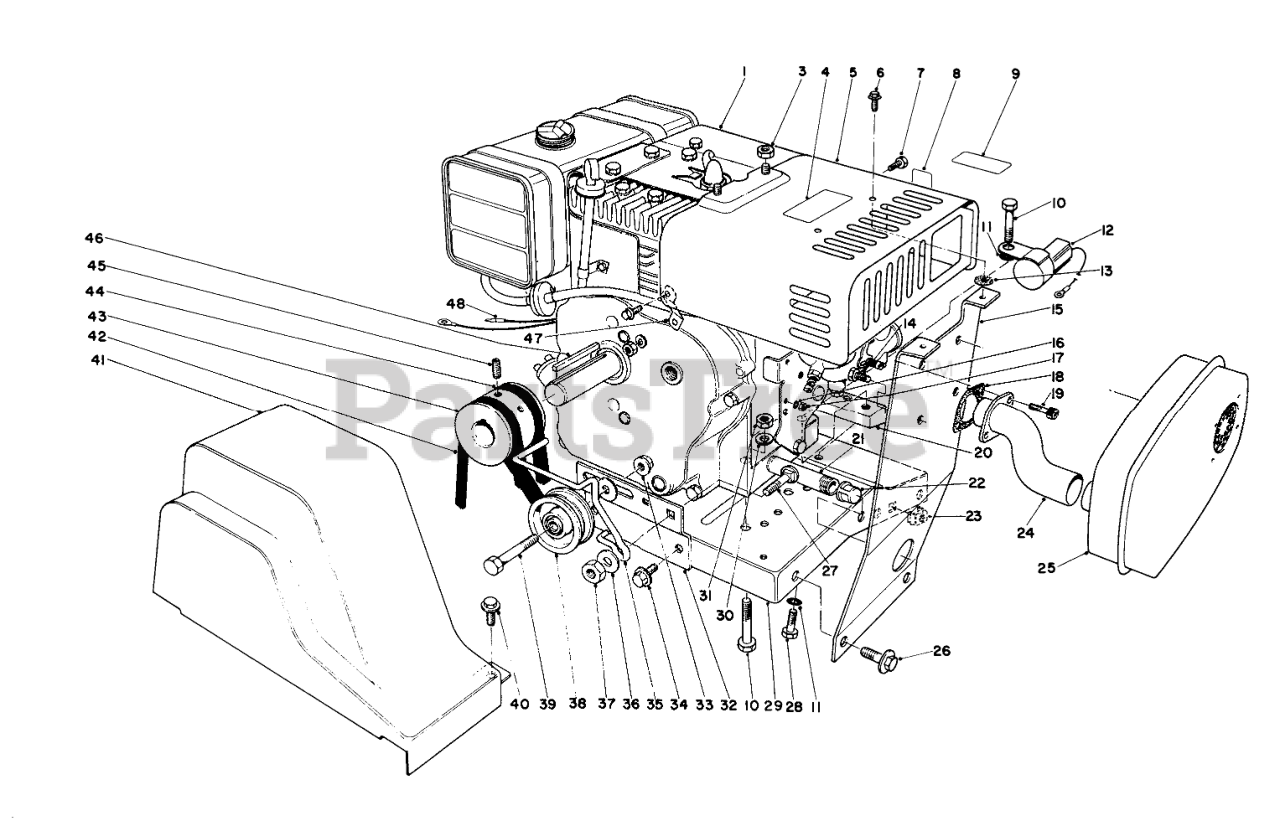

ENGINE ASSEMBLY (MODEL 38160) Parts Diagram

  • Title

1

Toro 221-640

Engine

$

$

Currently unavailable

2

Toro 41-8540

Decal-Hazard
(Superseded to 54-9750)

$

$

Not available

3

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

4

Toro 29-6390

Decal Hot Surface Warning
(Superseded to 53-7680)

$

$

Not available

5

Toro 39-1780

Heater Box

$

$

Not available

6

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

7

Toro 32144-12

Screw

$

$

Not available

8

Toro 29-6400

CHOKE DECAL

$

$

Not available

9

Toro 42-1740

DECAL SYNCHRO BALANCE

$

$

Not available

10

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

11

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

12

Toro 41-8610

INTERLOCK MODULE

$

$

Not available

13

Toro 25-1600

Washer

$

$

Not available

14

Toro 32140-70

1/4-20 X 1/2 SEMS MS

$

$

Not available

15

Toro 39-1740

Muffler Mounting Bracket

$

$

Not available

16

Toro 3254-10

WASHER-LOCK/INT

$

$

Not available

17

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

18

Toro 39-1810

Gasket

$

$

Not available

19

Toro 3274-12

SCREW-HSH

$1.49

$

In Stock, Qty 5

0

20

Toro 22-8960

Block Engine Mounting

$

$

Not available

21

Toro 289-20

NIPPLE-PIPE

$

$

Not available

22

Toro 2884

Pipe Cap

$

$

Currently unavailable

23

Toro 3290-398

Retained Nut
(Superseded to 3290-433)

$

$

Not available

24

Toro 39-1800

EXHAUST PIPE

$

$

Not available

25

Toro 27-6610

Muffler

$

$

Currently unavailable

26

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 22-9030

Base-Engine

$

$

Not available

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 41-8580

BELT IDLER BRKT

$

$

Not available

33

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

34

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

35

Toro 41-8590

BELT GUIDE

$

$

Not available

36

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

37

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

38

Toro 244-63

PULLEY B

$

$

Not available

39

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

41

Toro 17-6550

BELT GUARD

$

$

Not available

42

Toro 26-9670

V-BELT

$25.99

$

In Stock, only 1 left!

0

43

Toro 21-4100

ENGINE PULLEY

$

$

Not available

44

Toro 17-6540

V-BELT

$30.99

$

In Stock, Qty 5

0

45

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$12.99

$

Usually ships in 3-6 days

0

46

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

47

Toro 39-1790

Brace Heater Box

$

$

Not available

48

Toro 36-7490

Wire

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0
