38160 (1132) - Toro Snow Thrower (SN: 009000001 - 009999999) (1979) ENGINE ASSEMBLY Parts Diagram

Snow Thrower

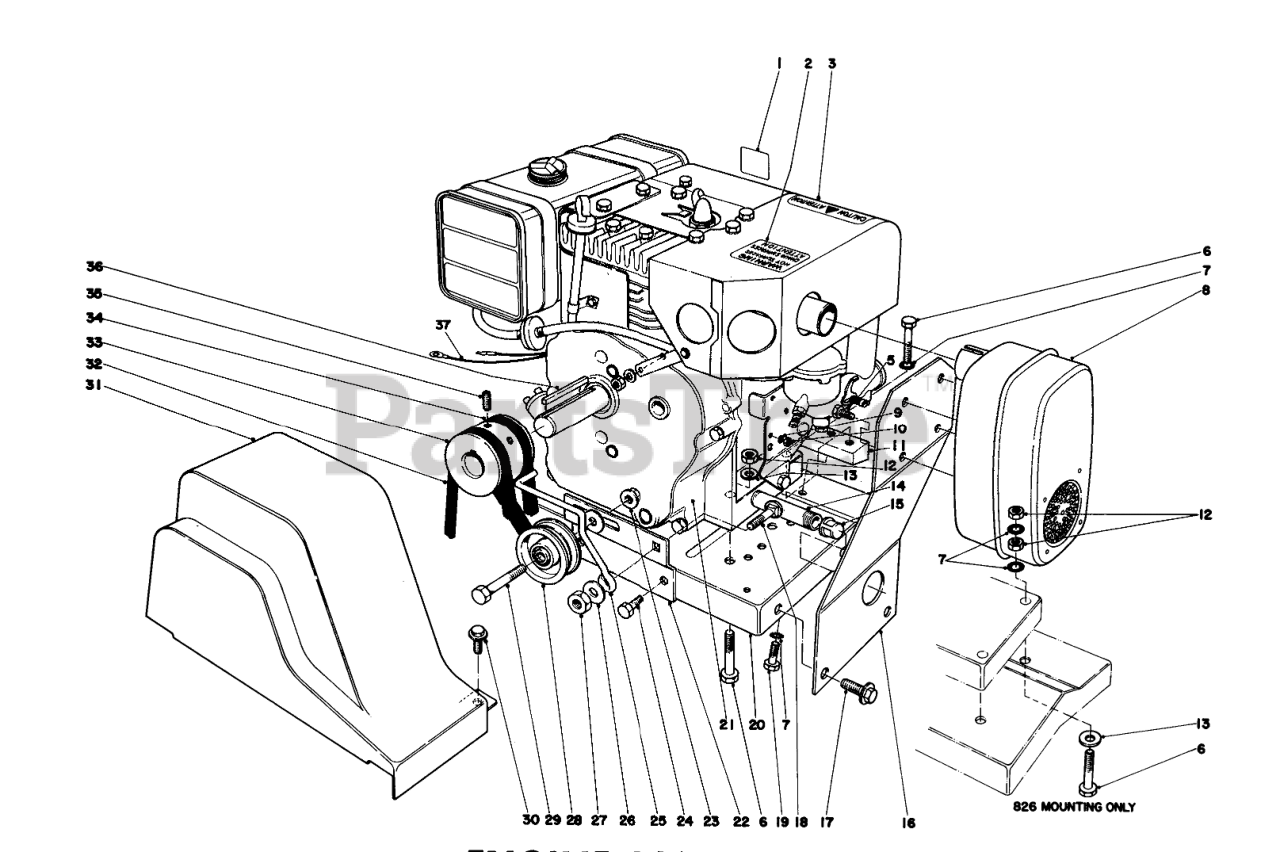

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 29-6400

CHOKE DECAL

$

$

Not available

2

Toro 29-6390

Decal Hot Surface Warning
(Superseded to 53-7680)

$

$

Not available

3

Toro 29-6380

CAUTION DECAL

$17.99

$

Usually ships in 3-6 days

0

5

Toro 32140-70

1/4-20 X 1/2 SEMS MS

$

$

Not available

6

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

7

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

8

Toro 274610

Muffler

$

$

Currently unavailable

9

Toro 3254-10

WASHER-LOCK/INT

$

$

Not available

10

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

11

Toro 22-8960

Block Engine Mounting

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

14

Toro 289-20

NIPPLE-PIPE

$

$

Not available

15

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

16

Toro 29-9940

Muffler Mounting Bracket

$

$

Not available

17

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 22-9030

Base-Engine

$

$

Not available

21

Toro 221-604

Engine

$

$

Currently unavailable

22

Toro 22-7960

Belt Idler Bracket
(Superseded to 41-8580)

$

$

Not available

23

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

25

Toro 8-8830

BELT GUIDE

$

$

Not available

26

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

27

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

28

Toro 244-63

PULLEY B

$

$

Not available

29

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

31

Toro 17-6550

BELT GUARD

$

$

Not available

32

Toro 26-9670

V-BELT

$25.99

$

In Stock, only 1 left!

0

33

Toro 21-4100

ENGINE PULLEY

$

$

Not available

34

Toro 17-6540

V-BELT

$30.99

$

In Stock, Qty 5

0

35

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$12.99

$

Usually ships in 3-6 days

0

36

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

37

Toro 36-7490

Wire

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0
