38435 (CCR 3000) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) Starter Motor Switch Housing Assembly Parts Diagram

Snow Thrower

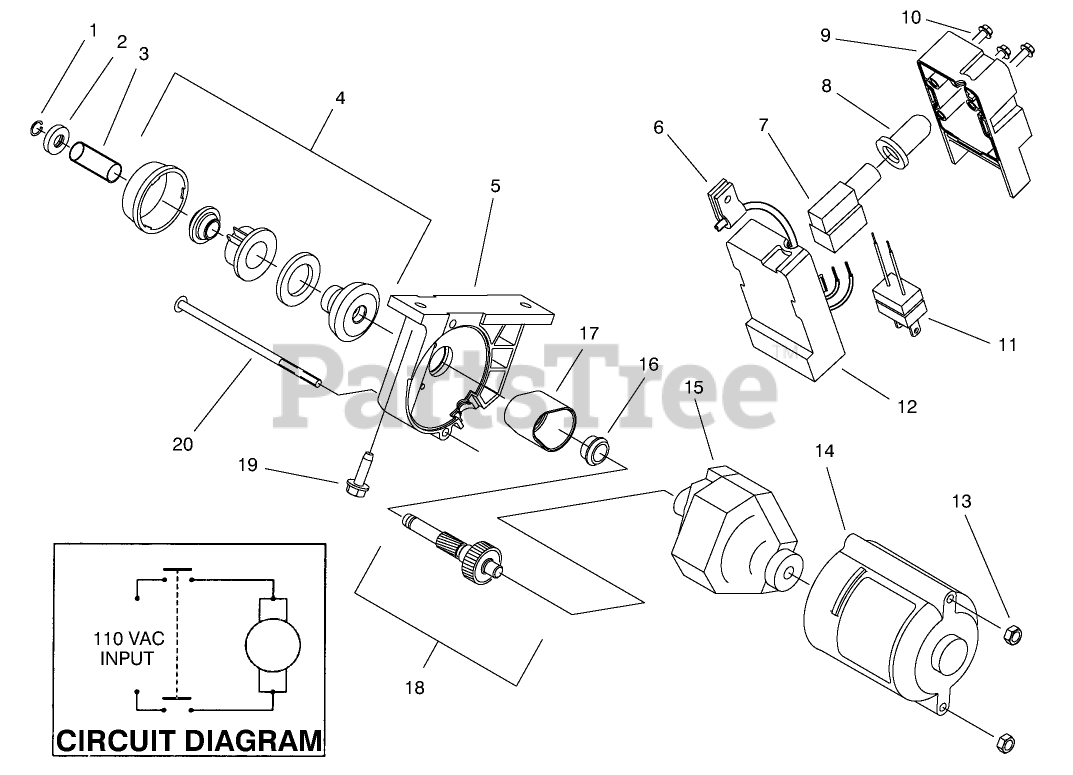

Starter Motor Switch Housing Assembly Parts Diagram

  • Title

1

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 18

0

2

Toro 61-4670

PINION STOP

$15.99

$

In Stock, only 3 left!

0

3

Toro 61-4690

SPRING

$

$

Not available

4

Toro 61-4700

ORDER BRIGGS 801293

$

$

Not available

5

Toro 80-0710

HOUSING

$

$

Not available

6

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

7

Toro 61-4820

SWITCH-STARTER

$19.99

$

In Stock, only 3 left!

0

8

Toro 61-4810

BOOT-SWITCH

$

$

Not available

9

Toro 80-3740

See Supercession: 100-3442
(Superseded to 100-3442)

$14.99

$

Usually ships in 3-6 days

0

10

Toro 32144-27

SCREW-PLASTITE

$

$

Not available

11

Toro 94-9933

PLUG-POWER

$

$

Not available

12

Toro 80-3730

See Supercession: 98-2253
(Superseded to 98-2253)

$

$

Not available

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

14

Toro 83-7350

DISCONTINUED

$

$

Not available

15

Toro 70-7801

DISCONTINUED

$

$

Not available

16

Toro 70-7900

BUSHING

$3.99

$

Usually ships in 3-6 days

0

17

Toro 70-7850

COVER-GEAR

$12.99

$

Usually ships in 3-6 days

0

18

Toro 92-6003

See Supercession: 105-8831
(Superseded to 105-8831)

$129.99

$

Usually ships in 3-6 days

0

19

Toro 56-6380

See Supercession: 110-3986
(Superseded to 110-3986)

$1.49

$

Usually ships in 3-6 days

0

20

Toro 32144-101

SCREW

$1.99

$

In Stock, only 4 left!

0

Toro 84-5292

DISCONTINUED
(Superseded to 105-2956)

Note: Not illustrated

$

$

Not available

Toro 28-9170

See Supercession: 106-4741
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
