38555 (1028) - Toro 28" Power Shift Snow Thrower (SN: 059000001 - 059999999) (1995) Light Assembly No. 66-7930 Parts Diagram

28" Power Shift Snow Thrower

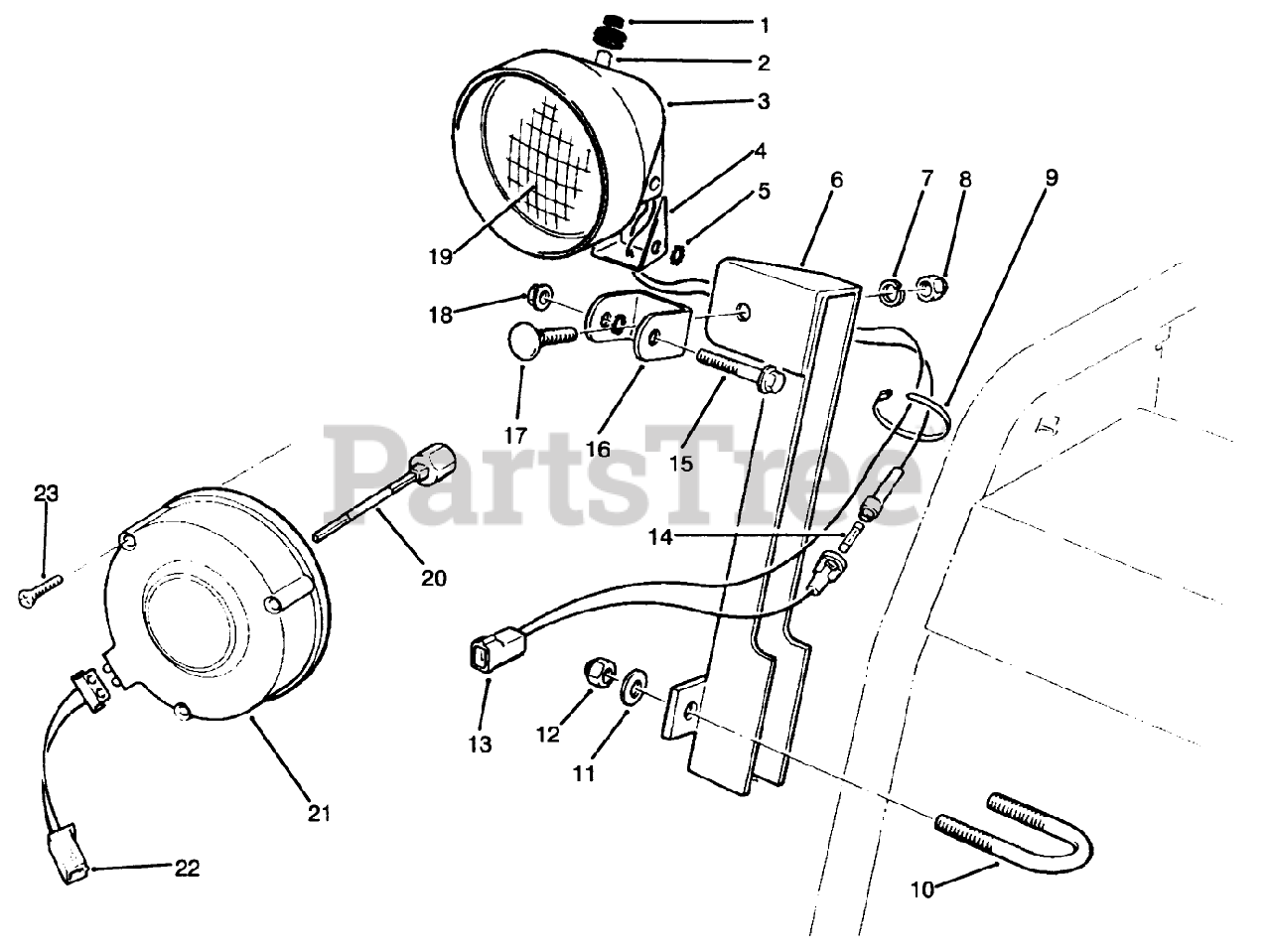

Light Assembly No. 66-7930 Parts Diagram

  • Title

1

Toro 218-473

BOOT-SWITCH

$20.99

$

Usually ships in 3-6 days

0

2

Toro 218-553

See Supercession: 110-6269
(Superseded to 110-6269)

$

$

Not available

3

Toro 218-552

DISCONTINUED

$

$

Not available

4

Toro 218-554

DISCONTINUED

$

$

Not available

5

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

6

Toro 68-7110

See Supercession: 68-7110-03
(Superseded to 68-7110-03)

$134.99

$

Usually ships in 3-6 days

0

7

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

8

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 19

0

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

10

Toro 68-7140

U-BOLT

$

$

Not available

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Wire Assembly

$

$

Not available

14

Fuse-7-1/2 Amp.

Note: Obtain locally.

$

$

Not available

15

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 11

0

16

Toro 218-556

DISCONTINUED

$

$

Not available

17

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 32128-35

NUT-HF

$3.49

$

Usually ships in 3-6 days

0

19

Toro 218-16

BEAM-SEALED

$

$

Not available

20

Toro 2210-268

DISCONTINUED-590613 TECUMSEH

$

$

Not available

Toro 2210-288

DISCONTINUED-1A52-203 TECUMSEH

Note: Not illustrated

$

$

Not available

21

Toro 2210-274

TECUMSEH 1A183-69

$

$

Not available

22

Toro 2210-272

DISCONTINUED-611078 TECUMSEH

$

$

Not available

23

Toro 2210-273

DISCONTINUED

$

$

Not available

Toro 2210-270

Tube-Centering

Note: Not illustrated

$

$

Currently unavailable

Toro 54-9871

HEADLAMP ASM

Note: Not illustrated

$

$

Not available
