41-20OE02 (520-H) - Toro Garden Tractor (SN: 010000001 - 019999999) (1991) ENGINES Parts Diagram

Garden Tractor

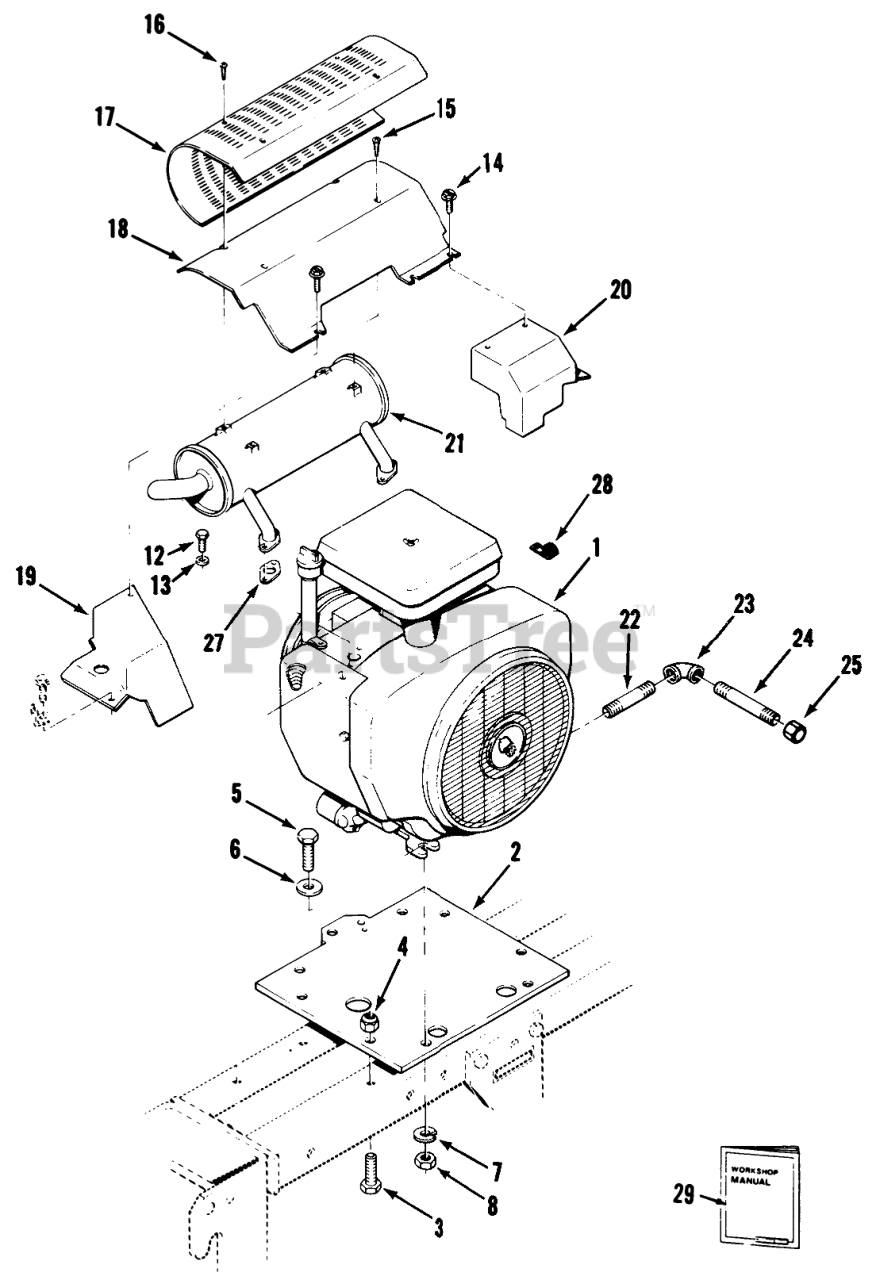

ENGINES Parts Diagram

  • Title

1

Toro 117261

Engine-TORO Power Plus-20HPP220G-I/10955C 520-H
(Superseded to 95-7691)

$

$

Not available

2

Toro 116609

PLATE-ENGINE B

$113.99

$

Usually ships in 3-6 days

0

3

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

8

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

15

Toro 910331

Screw
(Superseded to 9103312)

$2.49

$

In Stock, Qty 6

0

16

Toro 114888

SCW 10-24 STAINLESS

$

$

Not available

17

Toro 115783

SHIELD

$

$

Not available

18

Toro 114217

Air Deflector
(Superseded to 94-1803)

$

$

Not available

19

Toro 114215

LH Exhaust Cover
(Superseded to 114215-03)

$

$

Not available

20

Toro 114216

RH Exhaust Cover
(Superseded to 114216-03)

$

$

Not available

21

Toro 116471

MUFFLER-EXHAUST

$1452.99

$

Usually ships in 3-6 days

0

22

Toro 114636

Pipe
(Superseded to 289-45)

$19.99

$

Usually ships in 3-6 days

0

23

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

24

Toro 114763

PIPE-NIPPLE 3/8 X 4"

$15.99

$

In Stock, only 1 left!

0

25

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

27

Toro 114214

Exhaust Gasket
(Superseded to 57-9210)

$17.99

$

In Stock, Qty 8

0

28

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

29

Toro 810697R1

Manual-Toro Power Plus Service

$

$

Currently unavailable
