4140 G - Husqvarna 46" Lawn Tractor (1991-01) Mower Deck (B) Parts Diagram

46" Lawn Tractor

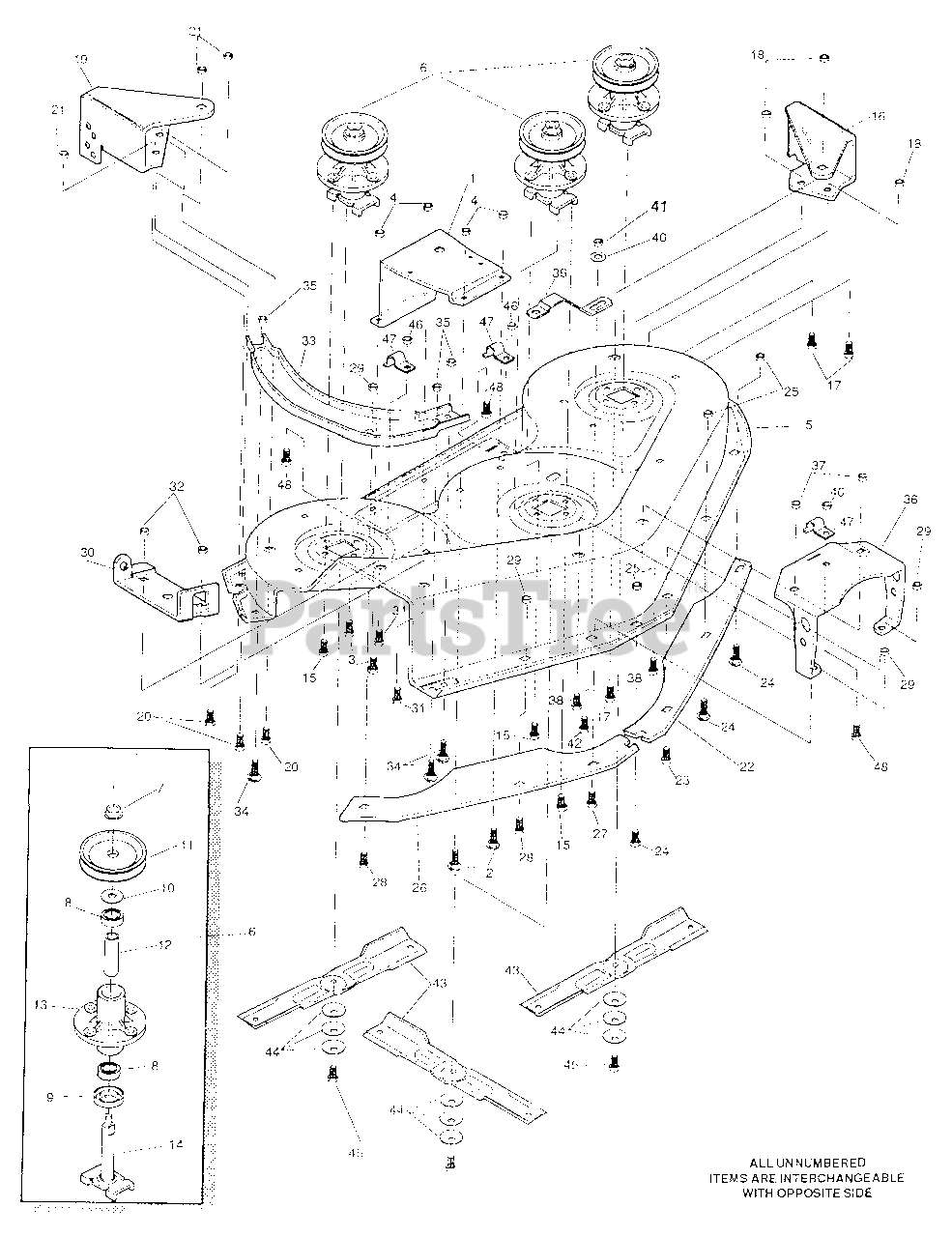

Mower Deck (B) Parts Diagram

  • Title

1

Husqvarna 312699

Support Bracket 46"

$

$

Currently unavailable

2

Husqvarna 126211

Bolt, 5/16-18 x 5/8 In. Carr.

$

$

Currently unavailable

3

Husqvarna 180075

Screw, 5/16-18 x .63 In.

$

$

Currently unavailable

4

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

5

Husqvarna 313229

Mower Deck 46" Sus.SD

$

$

Currently unavailable

6

Husqvarna 312270

Quill Assy.

$

$

Currently unavailable

7

Husqvarna 1282

Nut, 7/16-20 Wide Fl. Lock

$

$

Currently unavailable

8

Husqvarna 49562

Bearing, Ball

$

$

Currently unavailable

9

Husqvarna 50616

Dust Shield

$

$

Currently unavailable

10

Husqvarna 56280

Spacer

$

$

Currently unavailable

11

Husqvarna 312283

Quill Pulley

$

$

Currently unavailable

12

Husqvarna 58128

Spacer, LH & RH Quill

$

$

Currently unavailable

13

Husqvarna 58162

Casting LH

$

$

Not available

14

Husqvarna 302295

Saddle & Shaft Assy.

$

$

Currently unavailable

15

Husqvarna 50634

Screw, 5/16-18 x .87 Taptite

$

$

Currently unavailable

16

Husqvarna 312708

Bracket Gauge Wheel L.H.

$

$

Currently unavailable

17

Husqvarna 180075

Screw, 5/16-18 x .63 In.

$

$

Currently unavailable

18

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

19

Husqvarna 312700

Bracket Gauge Wheel R.H.

$

$

Currently unavailable

20

Husqvarna 180075

Screw, 5/16-18 x .631 n.

$

$

Currently unavailable

21

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

22

Husqvarna 312710

Baffle 46" Deck

$

$

Currently unavailable

23

Husqvarna 180075

Screw, 5/16-18 x.63 In.

$

$

Currently unavailable

24

Husqvarna 126211

Carriage Bolt, 5/16-18 x 5/8 In.

$

$

Currently unavailable

25

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

26

Husqvarna 312706

Baffle RH 46" Deck

$

$

Currently unavailable

27

Husqvarna 180075

Screw, 5/16-18 x 5/8 In.

$

$

Currently unavailable

28

Husqvarna 126211

Carriage Bolt, 5/16-18 x 5/8 In.

$

$

Currently unavailable

29

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

30

Husqvarna 312702

Bracket Chute Mount

$

$

Currently unavailable

31

Husqvarna 180075

Screw, 5/16-18 x 5/8 In.

$

$

Currently unavailable

32

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

33

Husqvarna 302868

Brace, Skid

$

$

Currently unavailable

34

Husqvarna 126211

Carriage Bolt, 5/16-18 x 5/8 In.

$

$

Currently unavailable

35

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

36

Husqvarna 312705

Lift Support Bracket

$

$

Currently unavailable

37

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

38

Husqvarna 180075

Screw, 5/16-18 x 5/8 In.

$

$

Currently unavailable

39

Husqvarna 314020

Support Bracket

$

$

Currently unavailable

40

Husqvarna 120393

Flatwasher

$

$

Currently unavailable

41

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

42

Husqvarna 180075

Screw, 5/16-18 x 5/8 In.

$

$

Currently unavailable

43

Husqvarna 317071

Blade, 16/13 High-Lift

$

$

Currently unavailable

44

Husqvarna 2483

Washer, Bellville

$

$

Currently unavailable

45

Husqvarna 39573

Screw, 3/8-24 x 1.00 Nylock

$

$

Currently unavailable

46

Husqvarna 1498

Nut, 5/16-18 Centerlock

$

$

Currently unavailable

47

Husqvarna 312701

Clip

$

$

Currently unavailable

48

Husqvarna 180075

Screw, 5/16-18 x 5/8 In.

$

$

Currently unavailable
