5002 - Lawn-Boy Walk-Behind Mower (SN: 800000001 - 899999999) (1968) Model C-19 Carburetor Parts List Used On Model 6252 Parts Diagram

Walk-Behind Mower

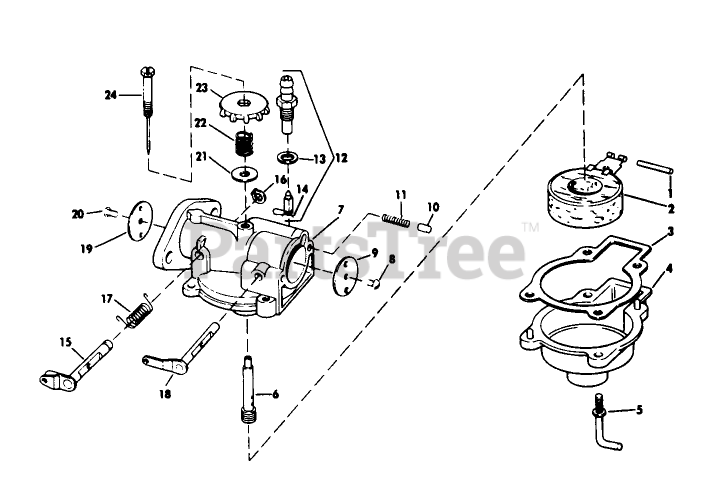

Model C-19 Carburetor Parts List Used On Model 6252 Parts Diagram

  • Title

Lawn-Boy 677233

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

Lawn-Boy 677233

DISCONTINUED

Note: " and "

$

$

Not available

Lawn-Boy 677233

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

1

Lawn-Boy 300096

See Supercession: 92-6389
(Superseded to 92-6389)

Note: " and "

$5.49

$

In Stock, only 3 left!

0

1

Lawn-Boy 300096

See Supercession: 92-6389
(Superseded to 92-6389)

Note: " are not interchangeable.

$5.49

$

In Stock, only 3 left!

0

1

Lawn-Boy 300096

See Supercession: 92-6389
(Superseded to 92-6389)

Note: NOTE: Parts coded "

$5.49

$

In Stock, only 3 left!

0

2

Lawn-Boy 678113

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

2

Lawn-Boy 678113

DISCONTINUED

Note: " and "

$

$

Not available

2

Lawn-Boy 678113

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

3

Lawn-Boy 602850

See Supercession: 98-1362
(Superseded to 98-1362)

Note: " are not interchangeable.

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 602850

See Supercession: 98-1362
(Superseded to 98-1362)

Note: " and "

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 602850

See Supercession: 98-1362
(Superseded to 98-1362)

Note: NOTE: Parts coded "

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 602712

DISCONTINUED

Note: " and "

$

$

Not available

4

Lawn-Boy 602712

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

4

Lawn-Boy 602712

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

5

Lawn-Boy 604336

SCREW

Note: " are not interchangeable.

$

$

Not available

5

Lawn-Boy 604336

SCREW

Note: " and "

$

$

Not available

5

Lawn-Boy 604336

SCREW

Note: NOTE: Parts coded "

$

$

Not available

6

Lawn-Boy 601096

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

6

Lawn-Boy 601096

DISCONTINUED

Note: " and "

$

$

Not available

6

Lawn-Boy 601096

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

7

Lawn-Boy 603488

DISCONTINUED

Note: " and "

$

$

Not available

7

Lawn-Boy 603488

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

7

Lawn-Boy 603488

DISCONTINUED

Note: If you are servicing a carburetor that uses two screws and two nuts to mount the reed plate to the carburetor body, use these parts for replacement.

$

$

Not available

7

Lawn-Boy 603488

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

7

Lawn-Boy 606161

DISCONTINUED

Note: If the Reed Plate is mounted to the Carburetor Body using only two screws, use these parts for replacement.

$

$

Not available

7

Lawn-Boy 606161

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

7

Lawn-Boy 606161

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

7

Lawn-Boy 606161

DISCONTINUED

Note: " and "

$

$

Not available

8

Lawn-Boy 53X220

Screw-Choke Disc

Note: " and "

$

$

Currently unavailable

8

Lawn-Boy 53X220

Screw-Choke Disc

Note: If you are servicing a carburetor that uses two screws and two nuts to mount the reed plate to the carburetor body, use these parts for replacement.

$

$

Currently unavailable

8

Lawn-Boy 53X220

Screw-Choke Disc

Note: " are not interchangeable.

$

$

Currently unavailable

8

Lawn-Boy 53X220

Screw-Choke Disc

Note: NOTE: Parts coded "

$

$

Currently unavailable

9

Lawn-Boy 603115

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

9

Lawn-Boy 603115

DISCONTINUED

Note: " and "

$

$

Not available

9

Lawn-Boy 603115

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

10

Lawn-Boy 601098

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

10

Lawn-Boy 601098

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

10

Lawn-Boy 601098

DISCONTINUED

Note: " and "

$

$

Not available

11

Lawn-Boy 601097

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

11

Lawn-Boy 601097

DISCONTINUED

Note: " and "

$

$

Not available

11

Lawn-Boy 601097

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

12

Lawn-Boy 678736

DISCONTINUED

Note: " and "

$

$

Not available

12

Lawn-Boy 678736

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

12

Lawn-Boy 678736

DISCONTINUED

Note: If you are servicing a carburetor that uses two screws and two nuts to mount the reed plate to the carburetor body, use these parts for replacement.

$

$

Not available

12

Lawn-Boy 678736

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

13

Lawn-Boy 301996

WASHER

Note: " and "

$3.49

$

In Stock, only 1 left!

0

13

Lawn-Boy 301996

WASHER

Note: " are not interchangeable.

$3.49

$

In Stock, only 1 left!

0

13

Lawn-Boy 301996

WASHER

Note: NOTE: Parts coded "

$3.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 603145

See Supercession: 92-9697
(Superseded to 92-9697)

Note: " and "

$21.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 603145

See Supercession: 92-9697
(Superseded to 92-9697)

Note: " are not interchangeable.

$21.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 603145

See Supercession: 92-9697
(Superseded to 92-9697)

Note: NOTE: Parts coded "

$21.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 678882

See Supercession: 92-9697
(Superseded to 92-9697)

Note: " are not interchangeable.

$21.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 678882

See Supercession: 92-9697
(Superseded to 92-9697)

Note: " and "

$21.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 678882

See Supercession: 92-9697
(Superseded to 92-9697)

Note: If the Reed Plate is mounted to the Carburetor Body using only two screws, use these parts for replacement.

$21.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 678882

See Supercession: 92-9697
(Superseded to 92-9697)

Note: NOTE: Parts coded "

$21.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 677637

DISCONTINUED

Note: If you are servicing a carburetor that uses two screws and two nuts to mount the reed plate to the carburetor body, use these parts for replacement.

$

$

Not available

15

Lawn-Boy 677637

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

15

Lawn-Boy 677637

DISCONTINUED

Note: " and "

$

$

Not available

15

Lawn-Boy 677637

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

16

Lawn-Boy 603292

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

16

Lawn-Boy 603292

DISCONTINUED

Note: " and "

$

$

Not available

16

Lawn-Boy 603292

DISCONTINUED

Note: If you are servicing a carburetor that uses two screws and two nuts to mount the reed plate to the carburetor body, use these parts for replacement.

$

$

Not available

16

Lawn-Boy 603292

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

15

Lawn-Boy 678119

THROTTLE LEVER S

Note: NOTE: Parts coded "

$

$

Not available

15

Lawn-Boy 678119

THROTTLE LEVER S

Note: If the Reed Plate is mounted to the Carburetor Body using only two screws, use these parts for replacement.

$

$

Not available

15

Lawn-Boy 678119

THROTTLE LEVER S

Note: " and "

$

$

Not available

15

Lawn-Boy 678119

THROTTLE LEVER S

Note: " are not interchangeable.

$

$

Not available

16

Lawn-Boy 604286

RING GRIP S

Note: " are not interchangeable.

$3.49

$

In Stock, only 1 left!

0

16

Lawn-Boy 604286

RING GRIP S

Note: " and "

$3.49

$

In Stock, only 1 left!

0

16

Lawn-Boy 604286

RING GRIP S

Note: If the Reed Plate is mounted to the Carburetor Body using only two screws, use these parts for replacement.

$3.49

$

In Stock, only 1 left!

0

16

Lawn-Boy 604286

RING GRIP S

Note: NOTE: Parts coded "

$3.49

$

In Stock, only 1 left!

0

17

Lawn-Boy 602685

SPRING

Note: If you are servicing a carburetor that uses two screws and two nuts to mount the reed plate to the carburetor body, use these parts for replacement.

$

$

Not available

17

Lawn-Boy 602685

SPRING

Note: NOTE: Parts coded "

$

$

Not available

17

Lawn-Boy 602685

SPRING

Note: " are not interchangeable.

$

$

Not available

17

Lawn-Boy 602685

SPRING

Note: " and "

$

$

Not available

17

Lawn-Boy 604296

DISCONTINUED

Note: " and "

$

$

Not available

17

Lawn-Boy 604296

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

17

Lawn-Boy 604296

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

17

Lawn-Boy 604296

DISCONTINUED

Note: If the Reed Plate is mounted to the Carburetor Body using only two screws, use these parts for replacement.

$

$

Not available

18

Lawn-Boy 677241

CHOKE SHAFT&LVR AY

Note: NOTE: Parts coded "

$102.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 677241

CHOKE SHAFT&LVR AY

Note: " are not interchangeable.

$102.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 677241

CHOKE SHAFT&LVR AY

Note: " and "

$102.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 602290

DISCONTINUED

Note: " and "

$

$

Not available

19

Lawn-Boy 602290

DISCONTINUED

Note: " are not interchangeable.

$

$

Not available

19

Lawn-Boy 602290

DISCONTINUED

Note: If you are servicing a carburetor that uses two screws and two nuts to mount the reed plate to the carburetor body, use these parts for replacement.

$

$

Not available

19

Lawn-Boy 602290

DISCONTINUED

Note: NOTE: Parts coded "

$

$

Not available

19

Lawn-Boy 604295

THROTTLE DISC S

Note: If the Reed Plate is mounted to the Carburetor Body using only two screws, use these parts for replacement.

$7.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 604295

THROTTLE DISC S

Note: " and "

$7.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 604295

THROTTLE DISC S

Note: " are not interchangeable.

$7.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 604295

THROTTLE DISC S

Note: NOTE: Parts coded "

$7.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 605522

SCREW F

Note: " are not interchangeable.

$0.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 605522

SCREW F

Note: " and "

$0.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 605522

SCREW F

Note: If the Reed Plate is mounted to the Carburetor Body using only two screws, use these parts for replacement.

$0.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 605522

SCREW F

Note: NOTE: Parts coded "

$0.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 306561

Washer

Note: " and "

$

$

Currently unavailable

21

Lawn-Boy 306561

Washer

Note: " are not interchangeable.

$

$

Currently unavailable

21

Lawn-Boy 306561

Washer

Note: NOTE: Parts coded "

$

$

Currently unavailable

22

Lawn-Boy 602293

Spring-Ndl. Adj.

Note: " are not interchangeable.

$

$

Currently unavailable

22

Lawn-Boy 602293

Spring-Ndl. Adj.

Note: " and "

$

$

Currently unavailable

22

Lawn-Boy 602293

Spring-Ndl. Adj.

Note: NOTE: Parts coded "

$

$

Currently unavailable

23

Lawn-Boy 602495

KNOB S

Note: " and "

$7.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 602495

KNOB S

Note: " are not interchangeable.

$7.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 602495

KNOB S

Note: NOTE: Parts coded "

$7.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 677039

NEEDLE AY. S

Note: " and "

$

$

Not available

24

Lawn-Boy 677039

NEEDLE AY. S

Note: " are not interchangeable.

$

$

Not available

24

Lawn-Boy 677039

NEEDLE AY. S

Note: NOTE: Parts coded "

$

$

Not available
