56006 - Toro 25" Premium Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1976) Body And Seat Assembly Parts Diagram

25" Premium Rear-Engine Riding Mower

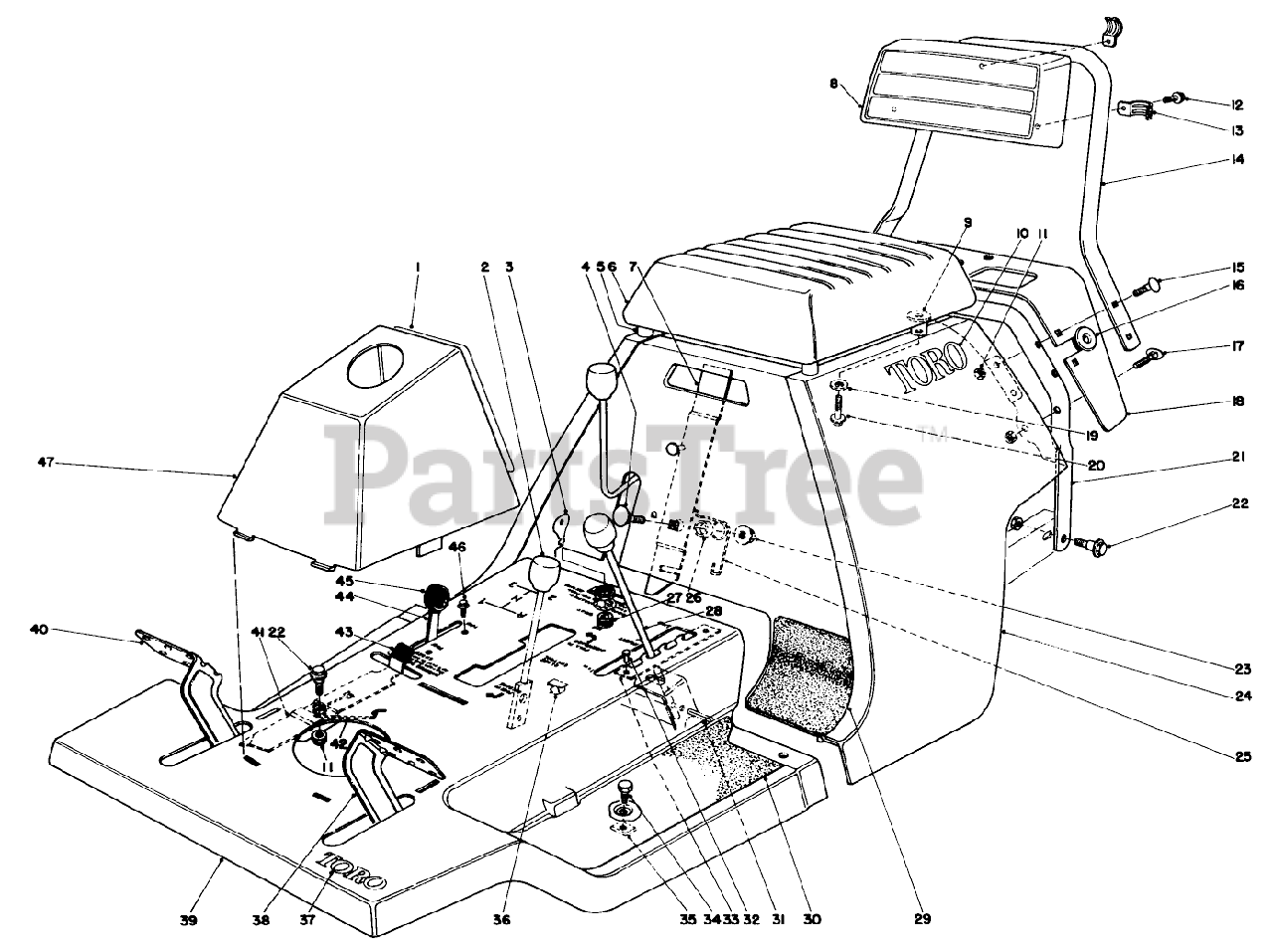

Body And Seat Assembly Parts Diagram

  • Title

1

Toro 26-7200

DISCONTINUED

$

$

Not available

2

Toro 233-37

KNOB

$36.99

$

Usually ships in 3-6 days

0

3

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

4

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

5

Toro 3-9026

Spacer

$

$

Currently unavailable

6

Toro 12-5760

DISCONTINUED

$

$

Not available

7

Toro 19-2400

DISCONTINUED

$

$

Not available

8

Toro 17-1360

DISCONTINUED

$

$

Not available

9

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 2 left!

0

10

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

12

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

13

Toro 2412-40

CLAMP-CONDUIT

$

$

Not available

14

Toro 18-8200

DISCONTINUED

$

$

Not available

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 9

0

16

Toro 25-1520

DISCONTINUED

$

$

Not available

17

Toro 6-6330

DISCONTINUED

$

$

Not available

18

Toro 25-1630

DISCONTINUED

$

$

Not available

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

20

Toro 3234-10

HEX FLANGE SCREW

$

$

Not available

21

Toro 17-9990

DISCONTINUED

$

$

Not available

22

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

23

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

24

Toro 19-2070

DISCONTINUED

$

$

Not available

25

Toro 19-2390

DISCONTINUED

$

$

Not available

26

Toro 19-2410

DISCONTINUED

$

$

Not available

27

Toro 19-2450

DISCONTINUED

$

$

Not available

28

Toro 17-9630

DISCONTINUED

$

$

Not available

29

Toro 26-2530

DISCONTINUED

$

$

Not available

Toro 26-2540

DISCONTINUED

Note: Not illustrated

$

$

Not available

30

Toro 26-2510

DISCONTINUED

$

$

Not available

Toro 26-2520

DISCONTINUED

Note: Not illustrated

$

$

Not available

31

Toro 32121-92

See Supercession: 32121-45
(Superseded to 32121-45)

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3290-372

DISCONTINUED

$

$

Not available

33

Toro 17-9610

DISCONTINUED

$

$

Not available

34

Toro 32104-110

SCREW-HH

$

$

Not available

35

Toro 3290-347

NUT-TINNERMAN

$

$

Not available

36

Toro 218-474

Wire Cable Tie

$

$

Currently unavailable

37

Toro 12-9140

DECAL

$

$

Currently unavailable

38

Toro 19-1860

DISCONTINUED

$

$

Not available

39

Toro 21-4680

DISCONTINUED

$

$

Not available

40

Toro 26-5310

DISCONTINUED

$

$

Not available

41

Toro 19-1610

See Supercession: 19-1610-03
(Superseded to 19-1610-03)

$

$

Not available

42

Toro 19-1970

SPRING-PARKING BRAKE

$

$

Not available

43

Toro 19-2200

TIP-PARKING BRAKE

$

$

Not available

44

Toro 26-4400

DISCONTINUED

$

$

Not available

45

Toro 233-35

KNOB

$9.99

$

Usually ships in 3-6 days

0

46

Toro 32104-94

DISCONTINUED

$

$

Not available

47

Toro 12-6290

See Supercession: 55-7103
(Superseded to 55-7103)

$

$

Not available

Toro 59046

Bagging Attachment-Rear (Opt.)

Note: Optional equipment

$

$

Currently unavailable

Toro 59070

Dump Cart (Optional)

Note: Optional equipment

$

$

Currently unavailable

Toro 59033

30" Snow Blade (Optional)

Note: Optional equipment

$

$

Currently unavailable

Toro 25-6940

30" Snow Blade Adapter Kit (Optional)

Note: Optional equipment

$

$

Currently unavailable
