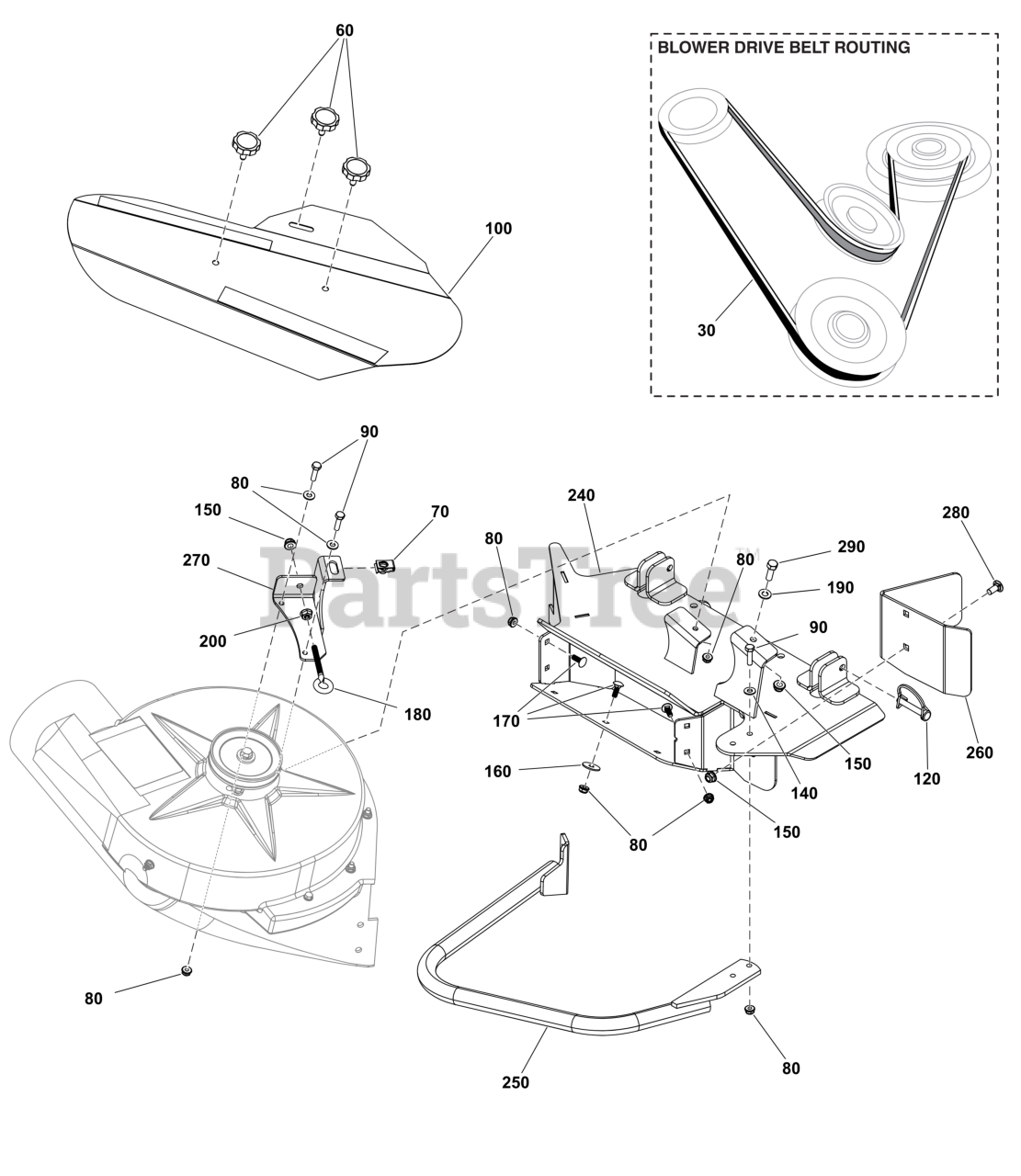

5601414 - Ferris 60" Turbo-Pro 3-Bag Hard Top Grass Collection System for ISX800 Blower Group - Deck Adapter Parts Diagram

60" Turbo-Pro 3-Bag Hard Top Grass Collection System for ISX800

Blower Group - Deck Adapter Parts Diagram

  • Title

30

Ferris 5103805YP

BELT

$49.99

$

In Stock, only 1 left!

0

60

Ferris 5101731YP

KNOB, 5/616-18 X 1

$10.99

$

In Stock, Qty 18

0

70

Ferris 1935255SM

NUT, SPEED, 5/16-18 L

$3.49

$

In Stock, only 1 left!

0

80

Ferris 5025391FS

NUT

$4.49

$

In Stock, Qty 20+

0

90

Ferris 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, Qty 20+

0

100

Ferris 5600614YP

HOOD ASSEMBLY

$179.99

$

Usually ships in 2-12 days

0

120

Ferris 5100847SM

SNAPPERPIN

$16.99

$

In Stock, only 1 left!

0

140

Ferris 84007033

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 16

0

150

Ferris 5025392FS

NUT
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

160

Ferris 5025288YP

WASHER, 1/4 FENDER

$3.99

$

In Stock, Qty 11

0

170

Ferris 703575

BOLT, 1/4-20X.750, SQ

$3.99

$

In Stock, only 2 left!

0

180

Ferris 5025141X26YP

EYE BOLT, 5/16-18 X 3

$8.49

$

In Stock, Qty 20+

0

190

Ferris 703350

WASHER

$4.49

$

In Stock, Qty 20+

0

200

Ferris 5025127SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, Qty 20+

0

240

Ferris 84008066

ADAPTER

$358.99

$

Usually ships in 2-12 days

0

250

Ferris 5409384AYP

BAR

$150.99

$

Usually ships in 2-12 days

0

260

Ferris 84008067

PLATE, Baffle

$28.99

$

Usually ships in 2-12 days

0

270

Ferris 84007755

WELD, SPRING ANCHOR, 61 TP - BLK

$

$

Currently unavailable

280

Ferris 5025145X6SM

BOLT, 5/16-18 X 3/4",

$3.99

$

In Stock, Qty 8

0

290

Ferris 5025011X8FS

BOLT

$3.99

$

In Stock, Qty 20+

0
