56022 - Toro 25" Premium Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) Tecumseh Engine Model No. Lav50 Type 62003 (model No. 56022) Parts Diagram

25" Premium Rear-Engine Riding Mower

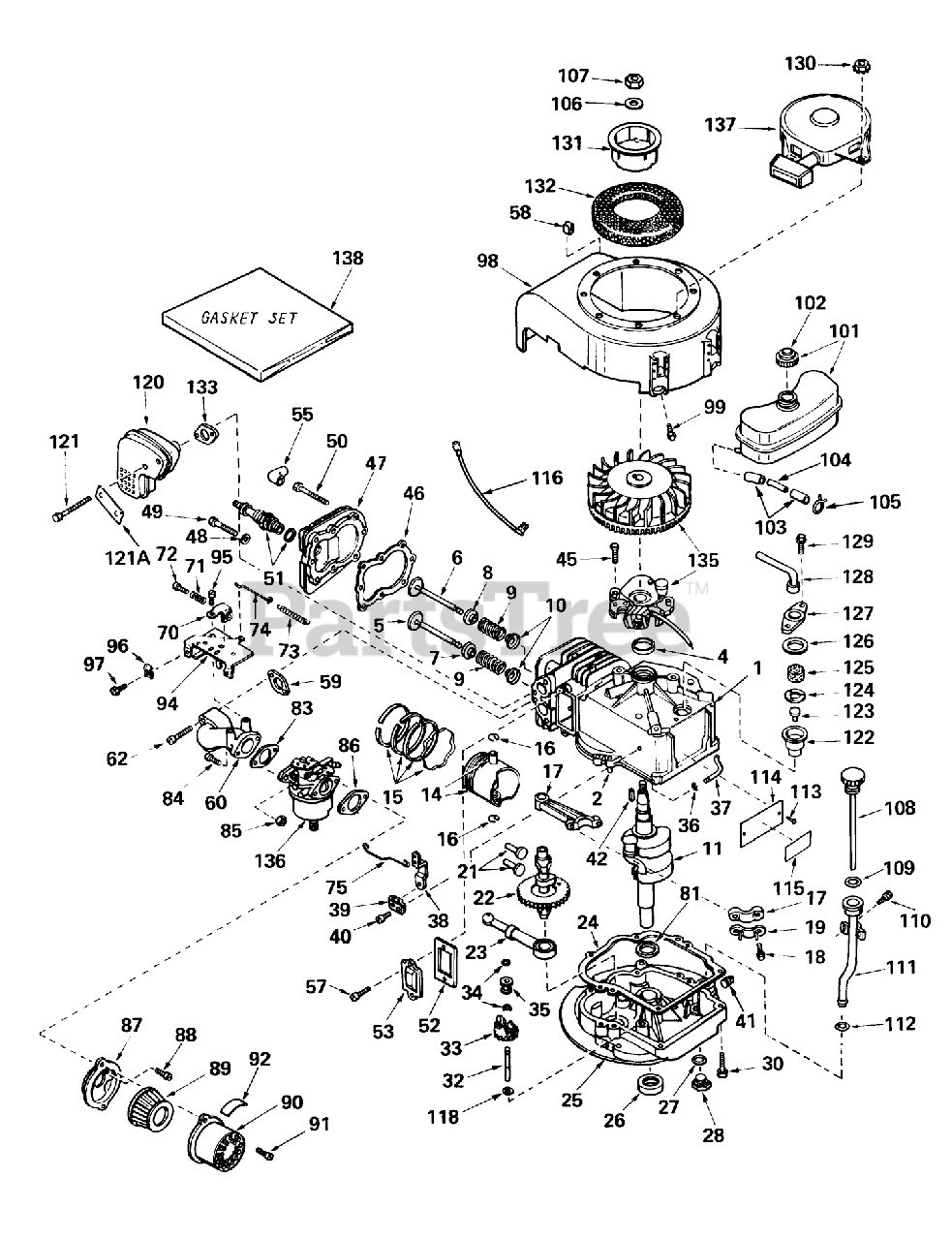

Tecumseh Engine Model No. Lav50 Type 62003 (model No. 56022) Parts Diagram

  • Title

1

Toro 33729

Cylinder Assy. (Incl. Nos. 2 4)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 32644

Valve, Intake (Standard) (Incl. Nos. 7, 9 10)

$

$

Currently unavailable

5

Toro 32645

Valve, Intake (1/32" Oversize) (Incl. Nos. 7, 9 10)

$

$

Currently unavailable

6

Toro 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

8

Toro 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

9

Toro 31672

Spring-Valve

$

$

Currently unavailable

10

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 33730

Crankshaft

$

$

Currently unavailable

14

Toro 33680

Piston Pin Assy. (Standard) (Incl. 2 of No. 16)

$

$

Currently unavailable

14

Toro 33681

Piston Pin Assy. (.010 Oversize) (Incl. 2 of No. 16)

$

$

Currently unavailable

14

Toro 33682

Piston Pin Assy. (.020 Oversize) (Incl. 2 of No. 16)

$

$

Currently unavailable

15

Toro 33567

Ring Set-Piston Std.

$

$

Currently unavailable

15

Toro 33568

Ring Set-Piston .010 oversize

$

$

Currently unavailable

15

Toro 33569

Ring Set-Piston .020 oversize

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 33661

Rod Assy., Connecting (Incl. Nos. 18 19)

$

$

Currently unavailable

18

Toro 32610

Connecting Rod Bolt

$

$

Currently unavailable

19

Toro 32609

Plate Lock

$

$

Currently unavailable

21

Toro 27241

Lifter-Valve

$

$

Currently unavailable

22

Toro 33154

Camshaft (Compr. Release)

$

$

Currently unavailable

23

Toro 29914

Oil Pump ASM

$

$

Currently unavailable

24

Toro 26750A

Gasket, Mounting

Note: Indicates items included in Gasket Set Part No. 33740.

$

$

Currently unavailable

25

Toro 32696

Flange Assy., Mounting (Incl. Nos. 26, 27, 28 32)

$

$

Currently unavailable

26

Toro 27897

Seal-Oil

$

$

Currently unavailable

27

Toro 28833

Gasket-Oil Drain

Note: Indicates items included in Gasket Set Part No. 33740.

$

$

Currently unavailable

28

Toro 30572

Plug, Drain

$

$

Currently unavailable

30

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

32

Toro 30574

Shaft-Governor

$

$

Currently unavailable

33

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

34

Toro 29193

Ring-Retaining

$

$

Currently unavailable

35

Toro 30588A

Spool-Governor

$

$

Currently unavailable

36

Toro 28277

Washer-Flat

$

$

Currently unavailable

37

Toro 30589

Rod, Governor (Incl. No. 36)

$

$

Currently unavailable

38

Toro 32651

Governor Lever

$

$

Currently unavailable

39

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

40

Toro 650548

Screw

$

$

Currently unavailable

41

Toro 9556

Plug-Pipe

$

$

Not available

42

Toro 27247

Key Flywheel

$

$

Currently unavailable

45

Toro 650489

Screw

$

$

Currently unavailable

46

Toro 33554

Oil Fill Tube

Note: Indicates items included in Gasket Set Part No. 33740.

$

$

Currently unavailable

47

Toro 33016

Head Cylinder

$

$

Currently unavailable

48

Toro 26073

Washer

$

$

Currently unavailable

49

Toro 6021

Screw

$

$

Currently unavailable

50

Toro 650694

Screw Hex Hd. Cap

$

$

Currently unavailable

51

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

52

Toro 27234

Gasket-Breather

Note: Indicates items included in Gasket Set Part No. 33740.

$

$

Currently unavailable

53

Toro 32755

Cover-Valve
(Superseded to 740513)

$

$

Not available

55

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

57

Toro 650128

Screw

$

$

Currently unavailable

58

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

59

Toro 33751

Gasket, Intake

Note: Indicates items included in Gasket Set Part No. 33740.

$

$

Currently unavailable

60

Toro 33739

Pipe, Intake

$

$

Currently unavailable

62

Toro 650142

Screw, Fil. Slotted Hd.Sems

$

$

Currently unavailable

70

Toro 33150

Brachet, Control

$

$

Currently unavailable

71

Toro 32924

Spring

$

$

Currently unavailable

72

Toro 650688

Screw, Hex Hd.

$

$

Currently unavailable

73

Toro 31386

Spring, Governor

$

$

Currently unavailable

74

Toro 33151

Link Governor Spring

$

$

Currently unavailable

75

Toro 33133

Link Governor

$

$

Not available

81

Toro 32323

Washer-Thrust

$

$

Currently unavailable

83

Toro 26756

Gasket

Note: Indicates items included in Gasket Set Part No. 33740.

$

$

Currently unavailable

84

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

85

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

86

Toro 27272

Gasket

Note: Indicates items included in Gasket Set Part No. 33740.

$

$

Currently unavailable

87

Toro 31691

Bracket

$

$

Currently unavailable

88

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

89

Toro 30727

Element

$

$

Currently unavailable

90

Toro 31692

Body

$

$

Currently unavailable

91

Toro 650152

Screw

$

$

Currently unavailable

92

Toro 31752

Decal

$

$

Not available

94

Toro 33155

Control Assy., Speed

$

$

Currently unavailable

95

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

96

Toro 27793

Conduit

$

$

Currently unavailable

97

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

98

Toro 33738

Housing, Blower

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement both will have to be ordered. Also order four 14) nuts illustrated on attach replacement starter to replacement blower hou

$

$

Currently unavailable

99

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

101

Toro 32671

Tank Assy., Fuel (Incl. No. 102)

$

$

Currently unavailable

102

Toro 410144B

Cap, Fuel

$

$

Currently unavailable

103

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

104

Toro 33754

Line, Fuel

$

$

Currently unavailable

105

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

106

Toro 650763

Washer-Spring

$

$

Currently unavailable

107

Toro 650607

Hex Nut

$

$

Currently unavailable

108

Toro 33760

Dipstick, Assy., Oil (Incl. No.109)

$

$

Currently unavailable

109

Toro 29985

O-Ring

$

$

Currently unavailable

110

Toro 650562

Screw (10-32 x 1/2)

$

$

Currently unavailable

111

Toro 33784

Tube Assy., Oil Fill

$

$

Currently unavailable

112

Toro 30139

O-Ring

$

$

Currently unavailable

113

Toro 28670

Stud

$

$

Not available

114

Toro 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

115

Toro 31865

480B GIL SNWTHWR O/

$3.23

$

Usually ships in 3-6 days

0

116

Toro 610683

SPOOL RETAINER (10-PK)

$

$

Not available

118

Toro 30590A

Washer-Flat

$

$

Currently unavailable

120

Toro 33697

Muffler

$

$

Currently unavailable

121A

Toro 33753

Plate-Lock

$

$

Currently unavailable

122

Toro 33731

Body Breather Tube

$

$

Currently unavailable

123

Toro 33732

Valve Check

$

$

Currently unavailable

124

Toro 33733

2000A37 WIZARD ROTA

$3.23

$

Usually ships in 3-6 days

0

125

Toro 33734

Element-Breather

$

$

Currently unavailable

126

Toro 33735

Gasket-Breather

Note: Indicates items included in Gasket Set Part No. 33740.

$

$

Currently unavailable

127

Toro 33737

Cover Breather

$

$

Currently unavailable

128

Toro 33736

Tube, Breather

$

$

Currently unavailable

129

Toro 650768

Screw, Hex Hd. w/Conical

$

$

Currently unavailable

130

Toro 29752

Nut and Lock Washer (1/4-28)

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement both will have to be ordered. Also order four 14) nuts illustrated on attach replacement starter to replacement blower hou

$

$

Currently unavailable

131

Toro 33667

Cup, Starter
(Superseded to 740552)

$

$

Not available

132

Toro 33668

Screen-Starter

$

$

Currently unavailable

133

Toro 33670

Gasket-Exhaust

Note: Indicates items included in Gasket Set Part No. 33740.

$

$

Currently unavailable

135

Toro 610862

Magneto

$

$

Currently unavailable

136

Toro 631716

Carburetor

$

$

Currently unavailable

137

Toro 590420

Starter, Rewind

Note: In original production the starter is riveted to the blower housing. If either the starter or blower housing requires replacement both will have to be ordered. Also order four 14) nuts illustrated on attach replacement starter to replacement blower hou

$

$

Currently unavailable

138

Toro 33740

Gasket Set

$

$

Currently unavailable
