56123 (8-25) - Toro Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) Frame Assembly Parts Diagram

Rear-Engine Riding Mower

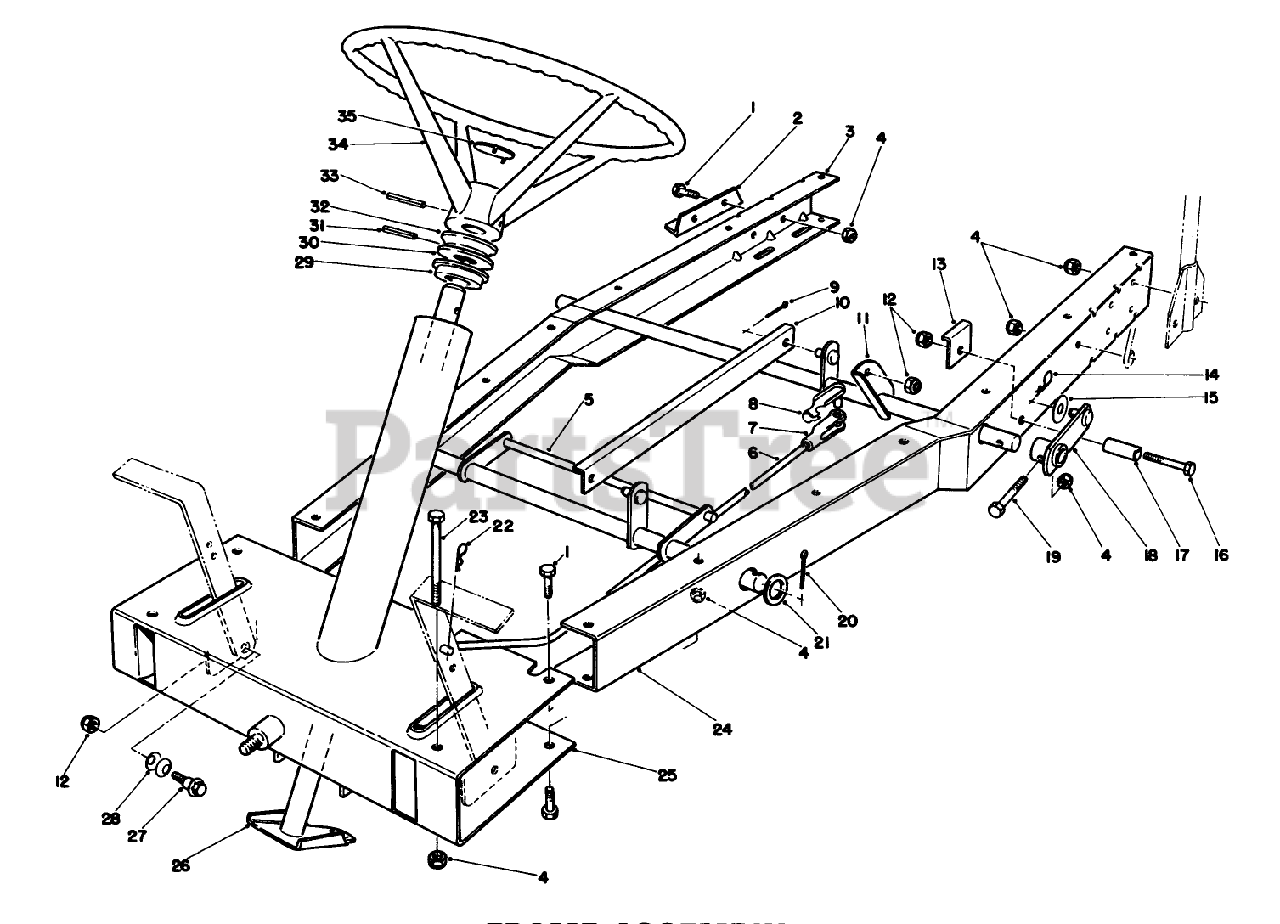

Frame Assembly Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 44-7140

See Supercession: 44-7140-01
(Superseded to 44-7140-01)

$

$

Not available

3

Toro 67-0520

DISCONTINUED
(Superseded to 67-0520-01)

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 67-0010

See Supercession: 67-0010-03
(Superseded to 67-0010-03)

$

$

Not available

6

Toro 67-0430

ROD-CLUTCH

$

$

Not available

7

Toro 282-27

CLEVIS-ADJ

$34.99

$

Usually ships in 3-6 days

0

8

Toro 67-1530

CLEVIS PIN ASM

$

$

Not available

9

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

10

Toro 67-0090

See Supercession: 67-0090-03
(Superseded to 67-0090-03)

$

$

Not available

11

Toro 67-0050

See Supercession: 67-0050-01
(Superseded to 67-0050-01)

$

$

Not available

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 67-1510

See Supercession: 67-1510-03
(Superseded to 67-1510-03)

$9.99

$

Usually ships in 3-6 days

0

14

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

15

Toro 67-1460

WASHER

$

$

Not available

16

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 9

0

17

Toro 68-8380

SPACER-STOP,DECK

$

$

Not available

18

Toro 67-0300

DISCONTINUED
(Superseded to 67-0300-01)

$

$

Not available

19

Toro 46-2510

See Supercession: 46-2511
(Superseded to 46-2511)

$

$

Not available

20

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3256-29

WASHER-FLAT

$3.49

$

In Stock, Qty 8

0

22

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

23

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 3 left!

0

24

Toro 67-0530

See Supercession: 67-0530-01
(Superseded to 67-0530-01)

$

$

Not available

25

Toro 67-0450

DISCONTINUED
(Superseded to 67-0450-01)

$

$

Not available

26

Toro 67-0830

See Supercession: 67-0830-01
(Superseded to 67-0830-01)

$

$

Not available

27

Toro 67-0870

BOLT-SHOULDER

$

$

Not available

28

Toro 3290-413

WASHER-BELLEVILLE

$4.99

$

Usually ships in 3-6 days

0

29

Toro 67-0850

DISCONTINUED

$

$

Not available

30

Toro 67-0860

WASHER-STEERING

$20.99

$

Usually ships in 3-6 days

0

31

Toro 32121-32

PIN-ROLL

$1.99

$

In Stock, Qty 8

0

32

Toro 67-0440

SPACER-STEERING

$

$

Not available

33

Toro 32121-78

PIN-ROLL

$3.99

$

In Stock, Qty 5

0

34

Toro 49-3240

STEERING WHEEL ASM

$232.99

$

Usually ships in 3-6 days

0

35

Toro 66-6910

INSERT-STEERING WHEEL, TORO

$

$

Not available

Toro 13-6049

DISCONTINUED

$

$

Not available
