56138 (8-32) - Toro Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) Brake Clutch Assembly Parts Diagram

Rear-Engine Riding Mower

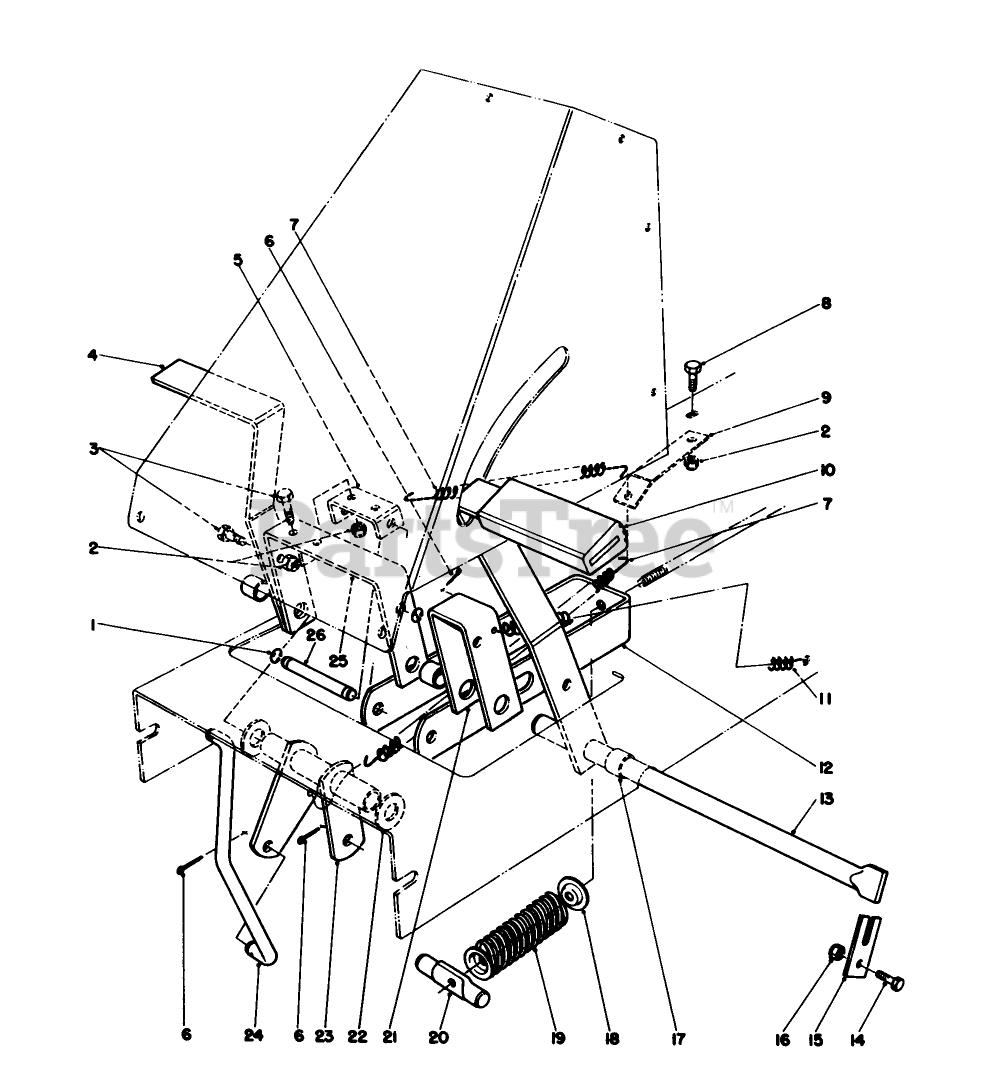

Brake Clutch Assembly Parts Diagram

  • Title

1

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 17

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 19

0

4

Toro 47-0540

See Supercession: 47-0540-03
(Superseded to 47-0540-03)

$

$

Not available

5

Toro 47-1380

DISCONTINUED

$

$

Not available

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 27-8960

TRACTION SPRING

$

$

Not available

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 47-1310

DISCONTINUE

$

$

Not available

10

Toro 47-1570

See Supercession: 65-2920
(Superseded to 65-2920)

$43.99

$

Usually ships in 3-6 days

0

11

Toro 12-8810

SPRING-EXTENSION

$30.99

$

Usually ships in 3-6 days

0

12

Toro 47-1180

See Supercession: 47-1180-01
(Superseded to 47-1180-01)

$

$

Not available

13

Toro 47-0770

SHAFT-PEDAL PIVOT

$

$

Not available

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 47-0780

RETAINER-SHAFT

$

$

Not available

16

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

17

Toro 47-0570

SPACER-PEDAL

$

$

Not available

18

Toro 47-1140

RETAINER-SPR. TOP

$

$

Not available

19

Toro 47-0960

SPRING-COMPRESSION

$

$

Not available

20

Toro 47-1200

SHAFT-DECK ADJ.

$

$

Not available

21

Toro 47-0560

See Supercession: 47-0560-03
(Superseded to 47-0560-03)

$

$

Not available

22

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 8

0

23

Toro 47-1040

DISCONTINUED

$

$

Not available

24

Toro 47-1050

DISCONTINUED

$

$

Not available

25

Toro 47-0550

See Supercession: 47-0550-03
(Superseded to 47-0550-03)

$

$

Not available

26

Toro 47-1230

DISCONTINUE

$

$

Not available
