57357 (11-44) - Toro Lawn Tractor (SN: 004000001 - 004999999) (1984) Shift Clutch Assembly Parts Diagram

Lawn Tractor

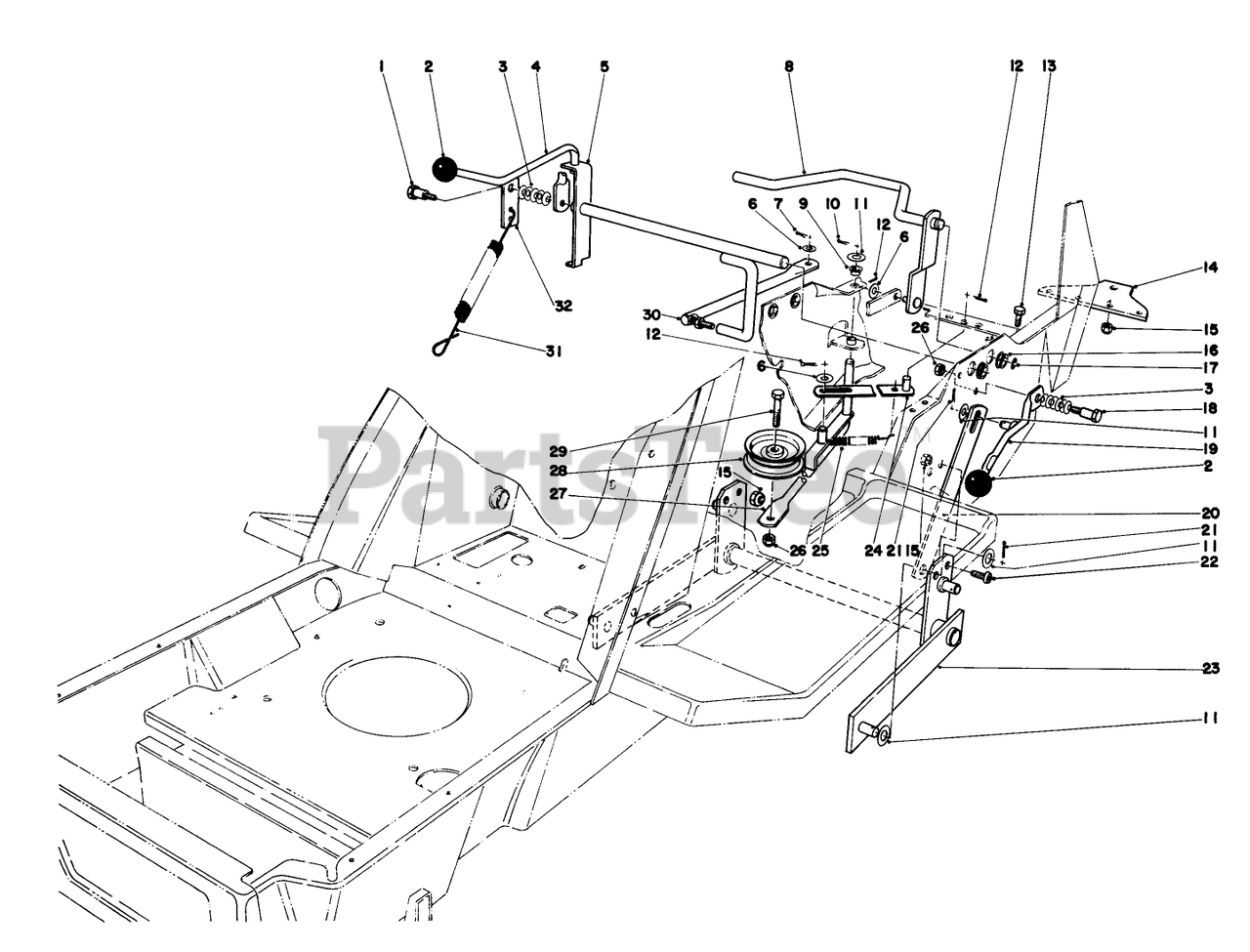

Shift Clutch Assembly Parts Diagram

  • Title
1

Toro 28-0540

BOLT-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

2

Toro 23348

Knob

$

$

Currently unavailable

3

Toro 3290413

Belleville Washer

$

$

Currently unavailable

4

Toro 28-2190

DISCONTINUED

$

$

Not available

5

Toro 28-2590

DISCONTINUED

$

$

Not available

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

7

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

8

Toro 27-9090

DISCONTINUED

$

$

Not available

9

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

10

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 7

0

11

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

12

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

13

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

14

Toro 28-2250

DISCONTINUED

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 256-258

See Supercession: 86-9320
(Superseded to 86-9320)

$9.99

$

Usually ships in 3-6 days

0

17

Toro 32120-19

E-RING

$2.99

$

In Stock, only 3 left!

0

18

Toro 54015

Shoulder Bolt

$

$

Currently unavailable

19

Toro 36-1780

DISCONTINUED

$

$

Not available

20

Toro 36-1300

DISCONTINUED

$

$

Not available

21

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

22

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

0

23

Toro 36-1860

DISCONTINUED

$

$

Not available

24

Toro 28-2270

DISCONTINUED

$

$

Not available

25

Toro 28-2340

DISCONTINUED

$

$

Not available

26

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 2 left!

0

27

Toro 28-0500

IDLER ARM WA *BO

$

$

Not available

28

Toro 36-1020

DISCONTINUED

$

$

Not available

29

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 9

0

30

Toro 28-2210

SHIFT ARM *BO

$222.99

$

Usually ships in 3-6 days

0

31

Toro 364850

Spring Extension

$

$

Currently unavailable

32

Toro 364860

Bracket Counterbalance Spring

$

$

Currently unavailable
