57360 (11-32) - Toro Lawn Tractor (SN: 002000001 - 002999999) (1982) Electrical Diagram Parts Diagram

Lawn Tractor

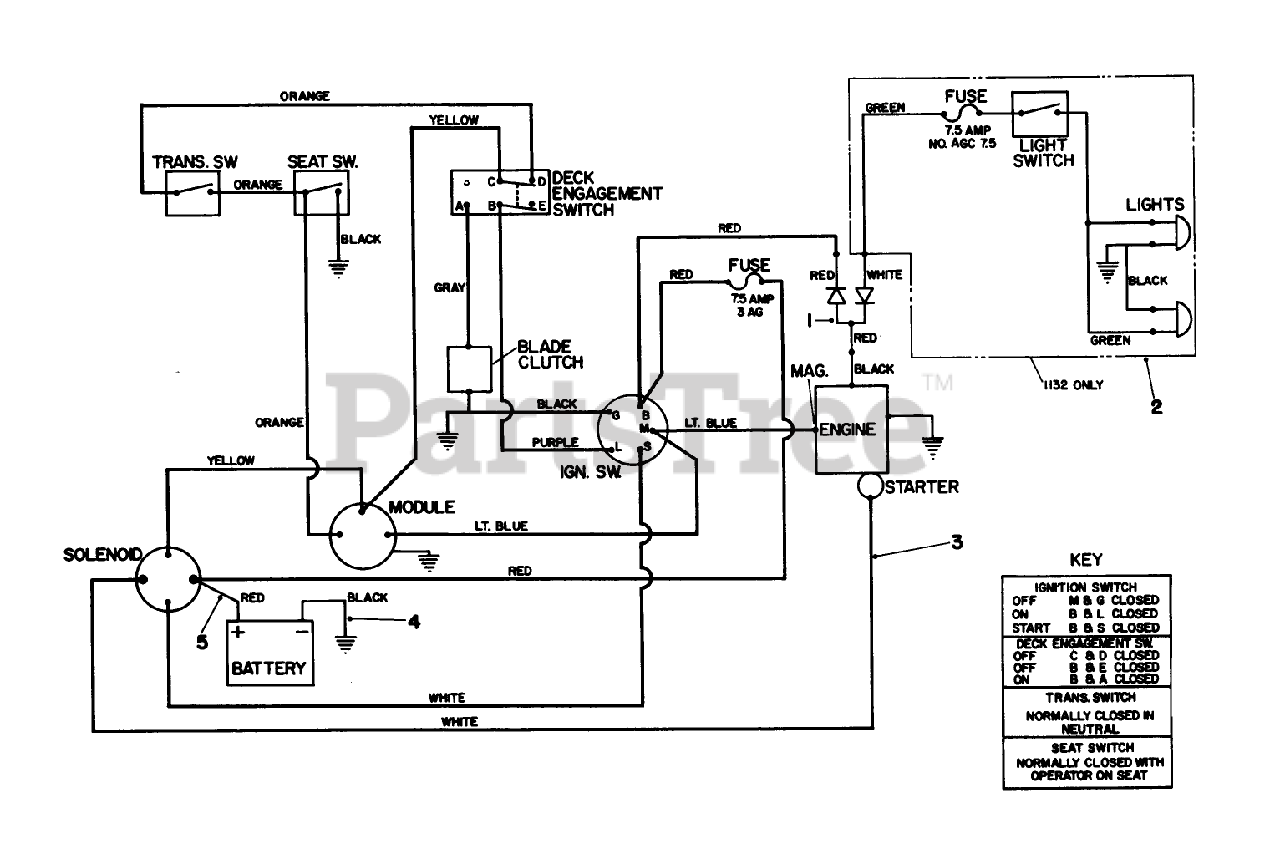

Electrical Diagram Parts Diagram

  • Title

1

Toro 44-0750

DISCONTINUED

$

$

Not available

2

Toro 38-1030

DISCONTINUED

$

$

Not available

3

Toro 44-0740

See Supercession: 52-1960
(Superseded to 52-1960)

$

$

Not available

4

Toro 44-8110

WIRE ASM

$

$

Not available

5

Toro 28-3890

WIRE ASM

$

$

Not available
