580.323300 (1800-0) - Craftsman 3,000 Watt Portable Generator Control Panel Parts Diagram

3,000 Watt Portable Generator

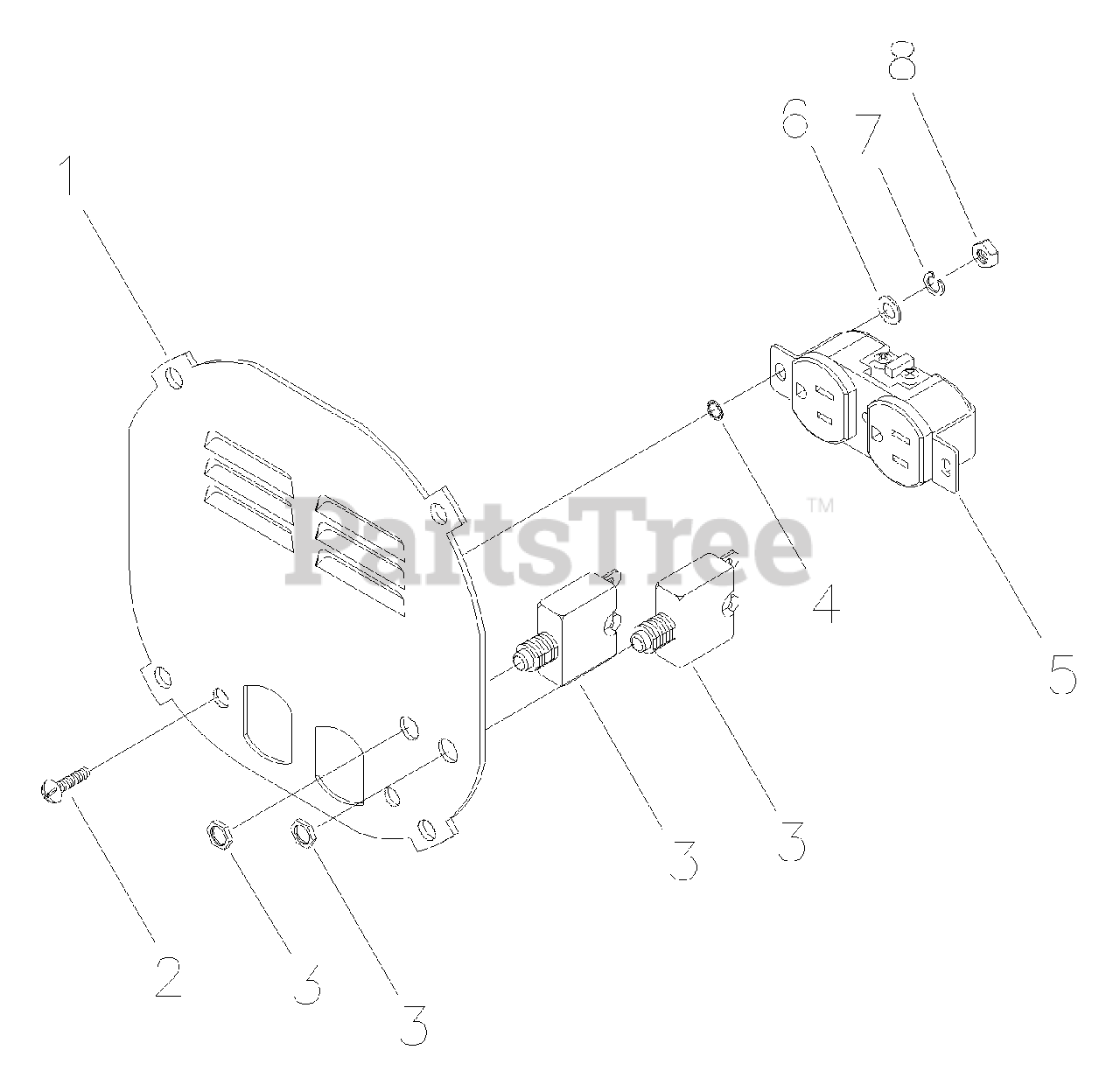

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 96386GS

COVER, Control Panel

$

$

Currently unavailable

2

PPHMS, M4 0.7 x 10

Note: Items without part numbers are common fasteners and are available at local hardware stores.

$

$

Not available

3

Briggs & Stratton 94396AGS

CIRCUIT BREAKER

$35.99

$

Usually ships in 2-12 days

0

4

WASHER, #8 Shakeproof

Note: Items without part numbers are common fasteners and are available at local hardware stores.

$

$

Not available

5

Briggs & Stratton 63025GS

OUTLET, 120V, 15A Duplex

$12.99

$

Usually ships in 2-12 days

0

6

WASHER, Flat, #8

Note: Items without part numbers are common fasteners and are available at local hardware stores.

$

$

Not available

7

WASHER, Lock, #8

Note: Items without part numbers are common fasteners and are available at local hardware stores.

$

$

Not available

8

NUT, Hex, M4 - 0.7

Note: Items without part numbers are common fasteners and are available at local hardware stores.

$

$

Not available
