61-20RG01 (D-250) - Toro Lawn Tractor (1976) BATTERY AND COMPENSATING TANK Parts Diagram

Lawn Tractor

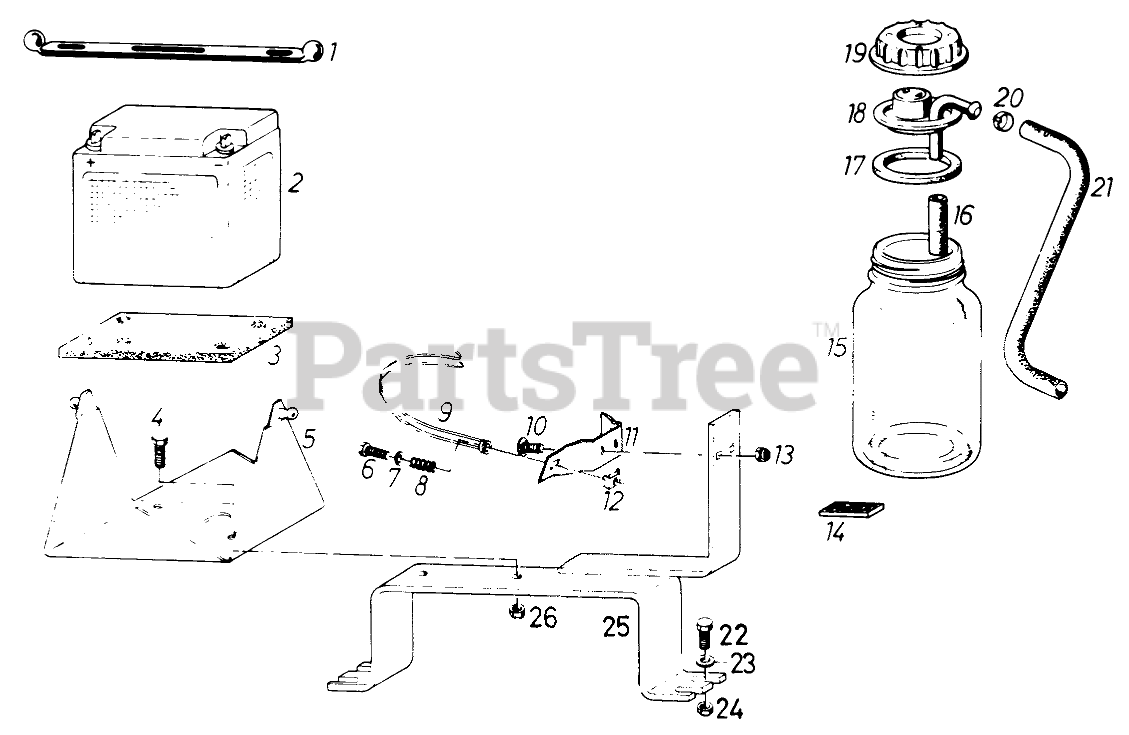

BATTERY AND COMPENSATING TANK Parts Diagram

  • Title

1

Toro 250059

Tension Strap

$

$

Not available

2

Toro 250135

Bolt

$

$

Not available

Toro 251058

Decal, Battery

$

$

Not available

Toro 251057

Decal, Battery Cover

$

$

Currently unavailable

3

Toro 250104

Plate

$

$

Not available

4

Toro 250158

Bolt

$

$

Not available

5

Toro 250321

Battery Support

$

$

Not available

6

Toro 250738

Screw

$

$

Not available

7

Toro 250739

Washer

$

$

Not available

8

Toro 250740

Spring

$

$

Not available

9

Toro 250737

Clamp

$

$

Not available

10

Toro 251404

Screw

$

$

Not available

11

Toro 250216

Clamp

$

$

Not available

12

Toro 250741

Cage Nut

$

$

Not available

13

Toro 250384

Nut

$

$

Not available

14

Toro 250217

Felt

$

$

Not available

15

Toro 250532

Compensating Tank

$

$

Not available

16

Toro 250736

Tube

$

$

Not available

17

Toro 251360

Gasket

$

$

Not available

18

Toro 250734

Valve

$

$

Not available

19

Toro 251359

Cover

$

$

Not available

20

Toro 250835

Clamp

$

$

Not available

21

Toro 250063

Tube

$

$

Not available

22

Toro 250159

Bolt

$

$

Not available

23

Toro 250433

Washer

$

$

Not available

24

Toro 250385

Nut

$

$

Not available

25

Toro 250341

Support Assy.

$

$

Not available

26

Toro 250385

Nut

$

$

Not available
