61-20RG01 (D-250) - Toro Lawn Tractor (1976) CRANKSHAFT AND CONNECTION ROD Parts Diagram

Lawn Tractor

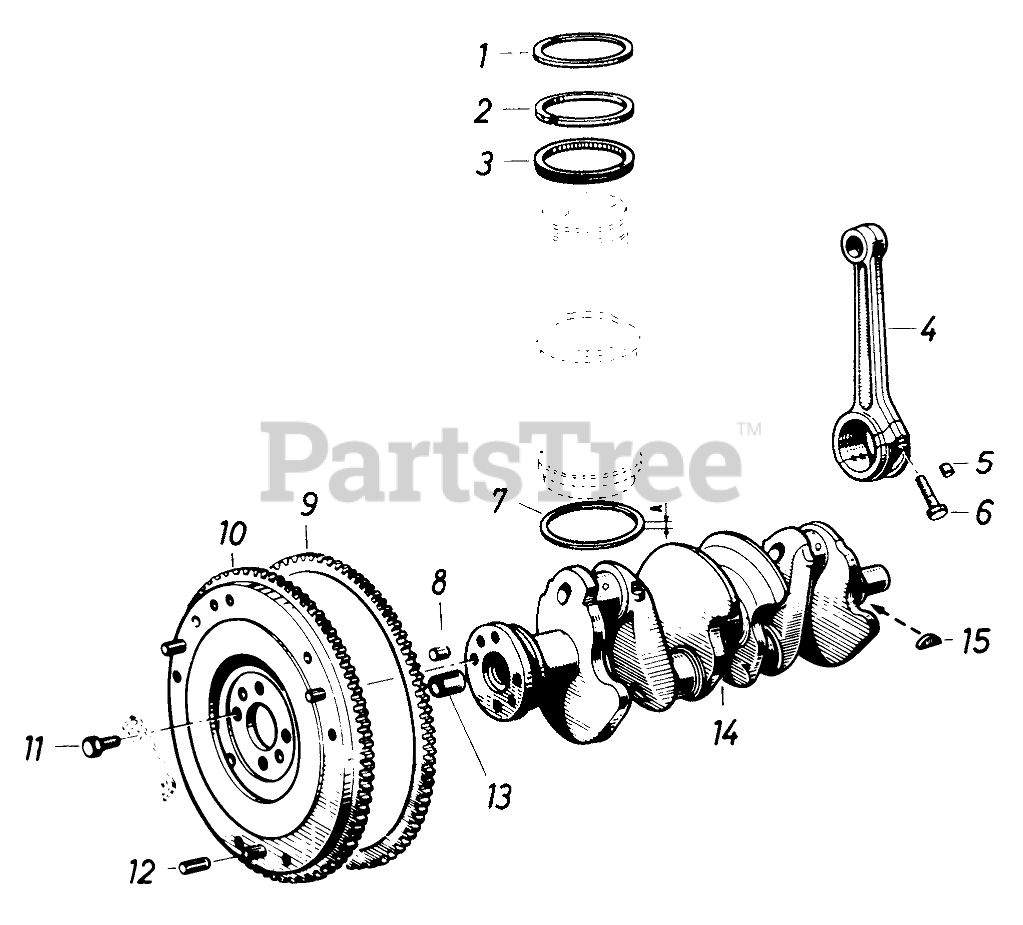

CRANKSHAFT AND CONNECTION ROD Parts Diagram

  • Title

1

Toro 250845

Compression Ring

$

$

Not available

2

Toro 250580

Oil Scraper Ring
(Superseded to 250845)

$

$

Not available

3

Toro 250581

Oil Piston Ring
(Superseded to 250845)

$

$

Not available

4

Toro 250846

Connection Rod G/351-359

$

$

Not available

Toro 250847

Connection Rod G/360-368

$

$

Not available

Toro 250848

Connection Rod G/369-377

$

$

Not available

5

Toro 250849

Dowel Pin

$

$

Not available

6

Toro 250850

Connecting Rod Bolt

$

$

Not available

7

Toro 250851

Gasket Ring

$

$

Not available

7

Toro 250852

Gasket Ring

$

$

Not available

7

Toro 250853

Gasket Ring

$

$

Not available

8

Toro 250586

Dowel Bolt

$

$

Not available

9

Toro 250588

Ring Gear

$

$

Not available

10

Toro 250584

Flywheel

$

$

Not available

11

Toro 250582

Screw

$

$

Not available

12

Toro 250583

Dowel Pin

$

$

Not available

13

Toro 250585

Bushing

$

$

Not available

14

Toro 250997

Crankshaft

$

$

Not available

15

Toro 250587

Key

$

$

Not available
