62900 - Toro Lawn Vacuum, 5hp (SN: 003000001 - 003999999) (1973) BLOWER HOUSING AND FAN ASSEMBLY Parts Diagram

Lawn Vacuum, 5hp

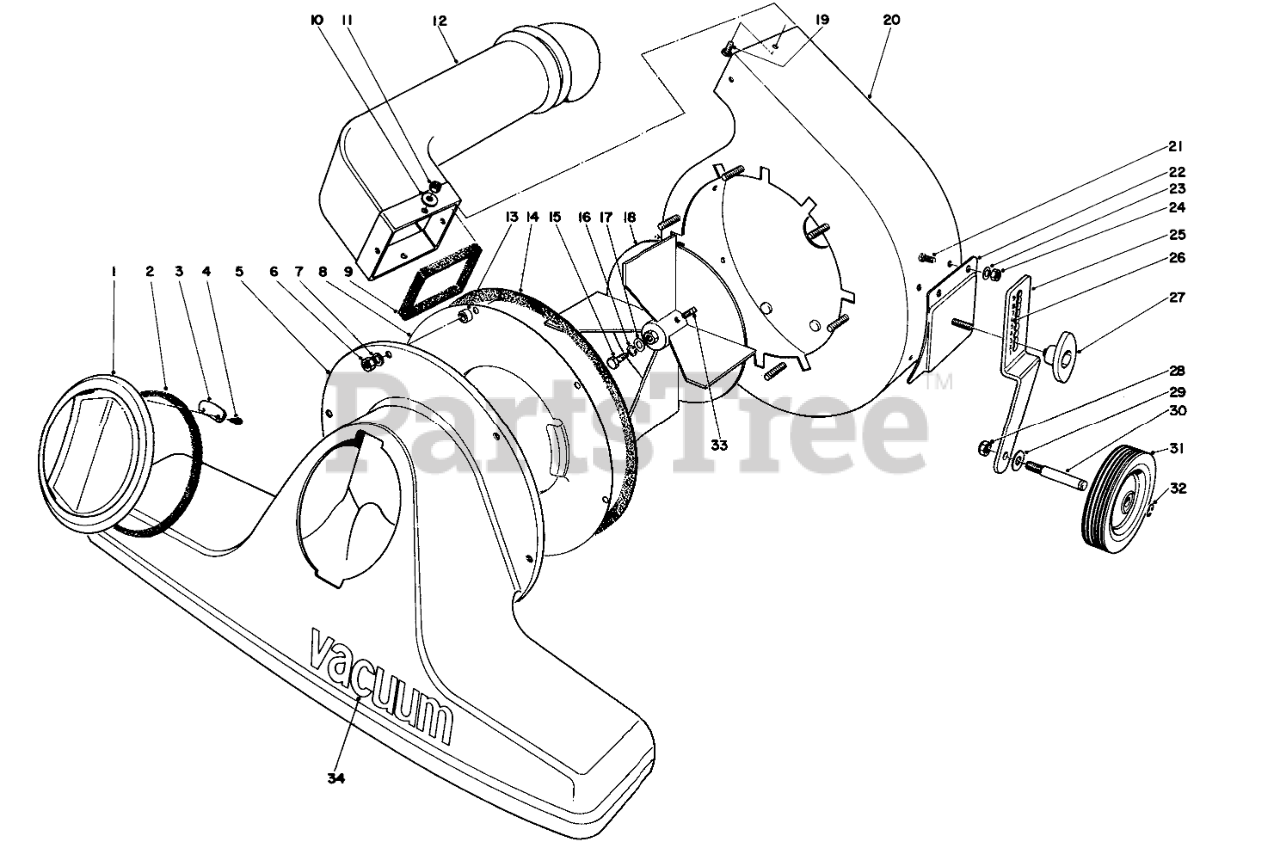

BLOWER HOUSING AND FAN ASSEMBLY Parts Diagram

  • Title

1

Toro 19-0280

Adaptor Cover

$

$

Currently unavailable

2

Toro 19-0300

Cover Gasket

$

$

Currently unavailable

3

Toro 19-0290

Cover Retainer

$

$

Currently unavailable

4

Toro 19-0970

Screw

$

$

Currently unavailable

5

Toro 19-0250

Air Intake Housing

$

$

Currently unavailable

6

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 19-0240

Hose Adaptor Plate

$

$

Currently unavailable

9

Toro 19-0320

Gasket

$

$

Currently unavailable

10

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 4 left!

0

12

Toro 19-0210

Adaptor

$

$

Currently unavailable

13

Toro 19-0340

Spacer

$

$

Currently unavailable

14

Toro 19-0230

Intake Gasket

$

$

Currently unavailable

15

Toro 19-0980

Bolt

$

$

Not available

16

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 19-0310

Fan

$

$

Currently unavailable

19

Toro 3251-3

10-24 X 5/8 PAN HD MS

$0.99

$

In Stock, only 2 left!

0

20

Toro 19-0010

Blower Housing

$

$

Currently unavailable

21

Toro 3258-2

SCREW

$

$

Not available

22

Toro 19-1150

Wheel Mount L.H.

$

$

Currently unavailable

Toro 19-1140

Wheel Mount R.H.

Note: Not illustrated

$

$

Currently unavailable

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

25

Toro 19-0020

FrontWheel Bracket L.H.

$

$

Currently unavailable

Toro 19-0220

Front Wheel Bracket R.H.

Note: Not illustrated

$

$

Currently unavailable

26

Toro 19-1050

Height Adj . Decal

$

$

Currently unavailable

27

Toro 19-0050

Wheel Adjustment Knob

$

$

Currently unavailable

28

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

29

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

30

Toro 19-0030

Axle, Front

$

$

Currently unavailable

31

Toro 19-0040

Wheel & Tire (Front)

$

$

Currently unavailable

32

Toro 19-0920

Retaining Ring

$

$

Currently unavailable

33

Toro 3241-2

SCREW-SQH
(Superseded to 3241-7)

$3.99

$

In Stock, Qty 5

0

34

Toro 19-1040

Vacuum Decal

$

$

Currently unavailable
