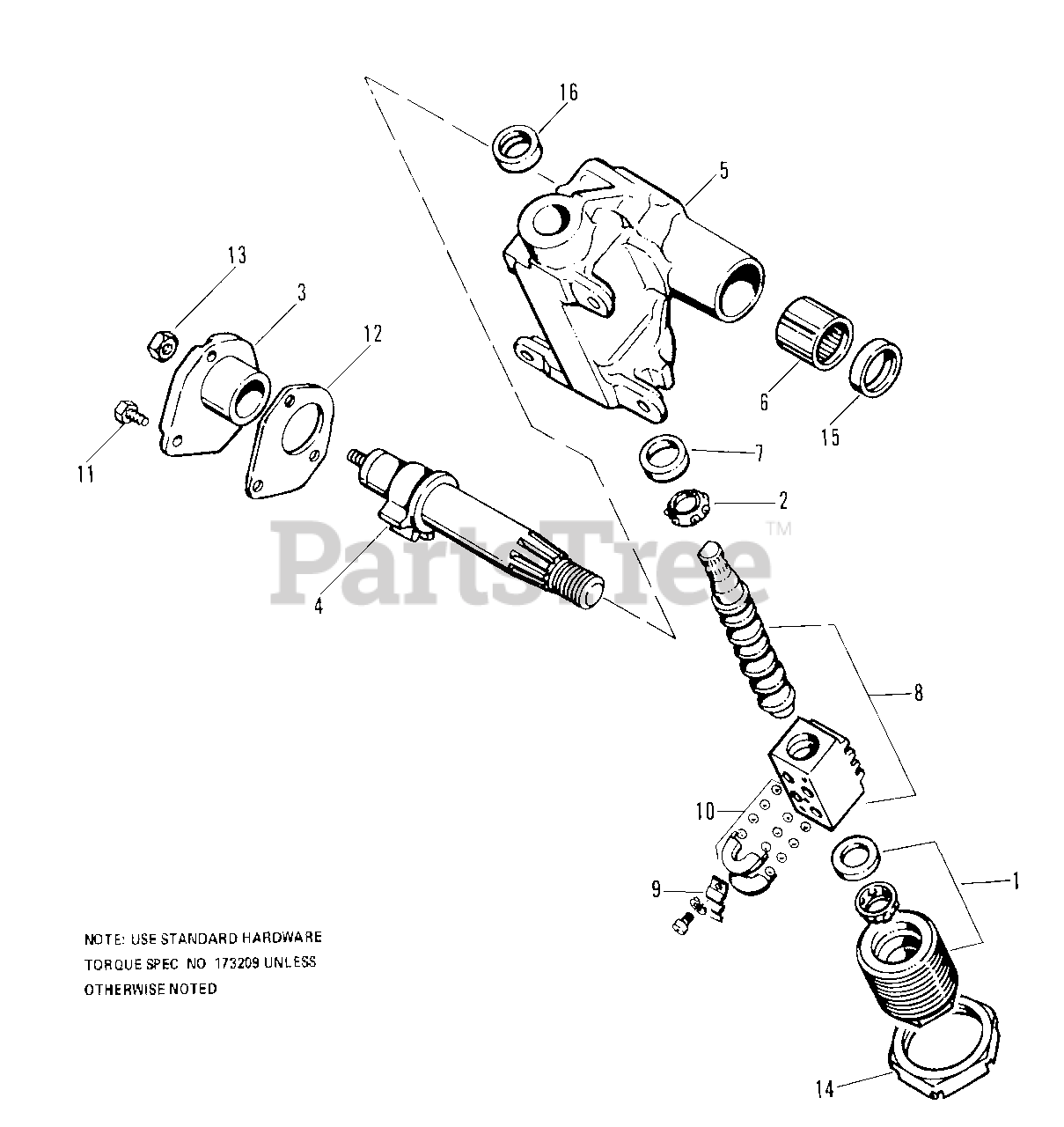

720 (1690288) - AGCO Garden Tractor, 19.5hp Steering Box Break Down Parts Diagram

Garden Tractor, 19.5hp

Steering Box Break Down Parts Diagram

  • Title

1

Simplicity 174151

BEARING ASSY, Adj. Worm

$

$

Not available

2

Simplicity 174152

BEARING ASSY, Worm

$

$

Not available

3

Simplicity 174153

COVER ASSY

$

$

Not available

4

Simplicity 174154

GEAR ASSY, Pitman

$

$

Not available

5

Simplicity 174155

HOUSING ASSY

$

$

Not available

6

Simplicity 174156

BEARING, Needle

$

$

Not available

7

Simplicity 174157

CUP, Bearing Thrust

$

$

Not available

8

Simplicity 174158

WORM ASSY

$

$

Not available

9

Simplicity 174159

CLAMP, Ball Return

$

$

Not available

10

Simplicity 174160

GUIDE, Ball Return

$

$

Not available

11

Simplicity 2174161

BOLT, Hex

$

$

Not available

12

Simplicity 174162

GASKET

$

$

Not available

13

Simplicity 174163

NUT, Hex

$

$

Not available

14

Simplicity 174164

LOCKNUT

$

$

Not available

15

Simplicity 174165

SEAL, Grease

$

$

Not available

16

Simplicity 174166

SEAL

$

$

Not available
