72084 (266-H) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) Blower Housing Baffles Kohler Engine Cv16s-Ps61514 Parts Diagram

Yard Tractor

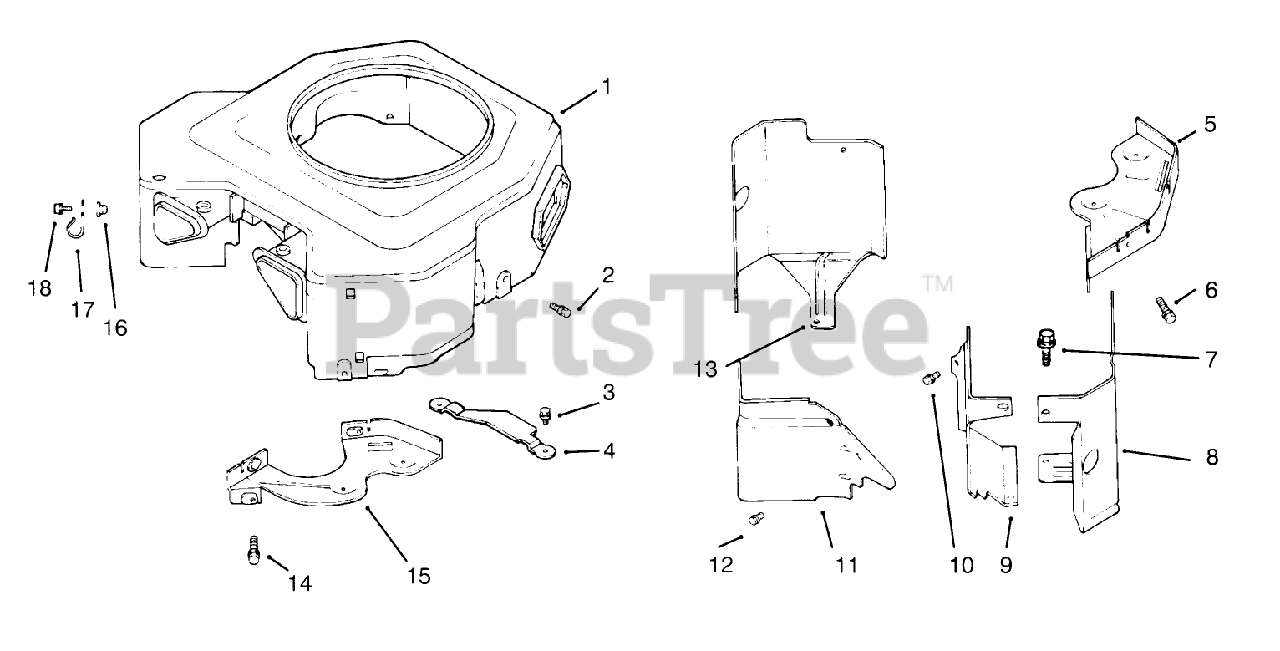

Blower Housing Baffles Kohler Engine Cv16s-Ps61514 Parts Diagram

  • Title

1

Toro 24 027 20

Housing-Blower ASM (Only C)n: 72103, 72083)

$

$

Currently unavailable

2

Toro M-0549016

Screw

$

$

Currently unavailable

3

Toro SM-0645016

Screw

$

$

Currently unavailable

4

Toro 2431405

Guard-Flywheel (Only On: 72103, 72083)

$

$

Currently unavailable

5

Toro 24_146_02

Plate-Backing #2 side

$

$

Currently unavailable

6

Toro M-0545020

Screw

$

$

Currently unavailable

7

Toro M-0551016

Screw

$

$

Currently unavailable

8

Toro 24_063_20

Baffle Cylinder #2 Side

$

$

Currently unavailable

9

Toro 24_063_15

Baffle-Valley #1 Side (Only On: 72103)

$

$

Currently unavailable

10

Toro M-0549010

Screw

$

$

Currently unavailable

11

Toro 24 063 14

Baffle-Valley #2 Side (Only On: 72103, 72083)

$

$

Currently unavailable

12

Toro M-0549016

Screw

$

$

Currently unavailable

13

Toro 24 063 06

Baffle-Cylinder #1 Side (Only On: 72103)

$

$

Currently unavailable

14

Toro M-0649016

Screw

$

$

Currently unavailable

15

Toro 24 146 14

Plate-Backing #1 Side (Only On: 72103, 72083)

$

$

Currently unavailable

16

Toro 24_100_01

Nut

$

$

Currently unavailable

17

Toro 47 154 01

Clip-Cable (Only On: 72103)

$

$

Currently unavailable

18

Toro 24_086_12

Screw

$

$

Currently unavailable

Toro 24_100_02

Nut INCL W/Blower Hsng (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_113_10

Decal-Horsepower (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable

Toro 25 139 16

Plug INCL/Blower Hsng (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable
