73362 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Control Panel Parts Diagram

Garden Tractor

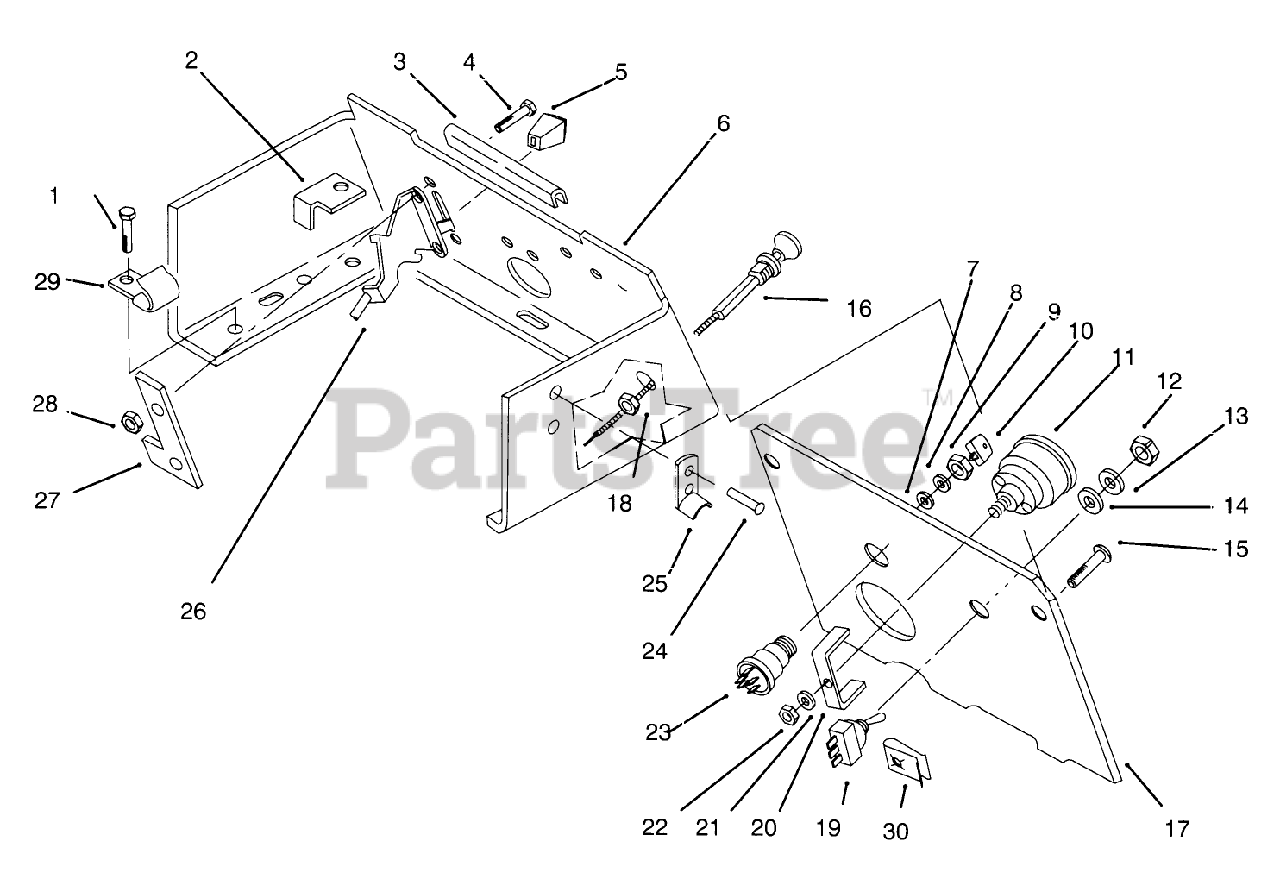

Control Panel Parts Diagram

  • Title

1

Toro 926694

SCREW

$

$

Not available

2

Toro 112415

STOP-PTO

$21.99

$

In Stock, only 1 left!

0

3

Toro 111757

EDGING-CONSOLE

$12.99

$

In Stock, Qty 9

0

4

Toro 910792

See Supercession: 910790
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

5

Toro 66-0120

KNOB

$6.49

$

In Stock, Qty 6

0

6

Toro 79-3640

DISCONTINUED

$

$

Not available

7

Toro 920262

See Supercession: 9202624
(Superseded to 9202624)

$9.49

$

Usually ships in 3-6 days

0

8

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

9

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

10

Toro 62-7770

KEY-IGNITION

$5.49

$

In Stock, Qty 14

0

11

Toro 78-0020

See Supercession: 66-2950
(Superseded to 66-2950)

$

$

Not available

12

Toro 113179

*DISC**

$

$

Not available

13

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

14

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

15

Toro 910837

See Supercession: 9108372
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

16

Toro 112214

CONTROL CHOKE

$69.99

$

In Stock, only 3 left!

0

17

Toro 110520

DISCONTINUED

$

$

Not available

18

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 3 left!

0

19

Toro 102138

SWITCH-LIGHTS

$42.99

$

In Stock, only 1 left!

0

20

Toro 78-3320

CLAMP-HOUR METER

$12.99

$

Usually ships in 3-6 days

0

21

Toro 3255-25

See Supercession: 3255-20
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

23

Toro 116338

KEY SWITCH ASM

$84.99

$

In Stock, only 2 left!

0

24

Toro 117431

DISCONTINUED

$

$

Not available

25

Toro 117343

KEEPER-LATCH

$5.49

$

In Stock, only 2 left!

0

26

Toro 115854

CONTROL-THROTTLE

$93.99

$

In Stock, only 2 left!

0

27

Toro 120590

Washer
(Superseded to 120590-03)

$

$

Not available

28

Toro 915740

See Supercession: 3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 13

0

29

Toro 111392

J-CLIP

$2.99

$

Usually ships in 3-6 days

0

30

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0
