73420 (416-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) CARBURETOR Parts Diagram

Garden Tractor

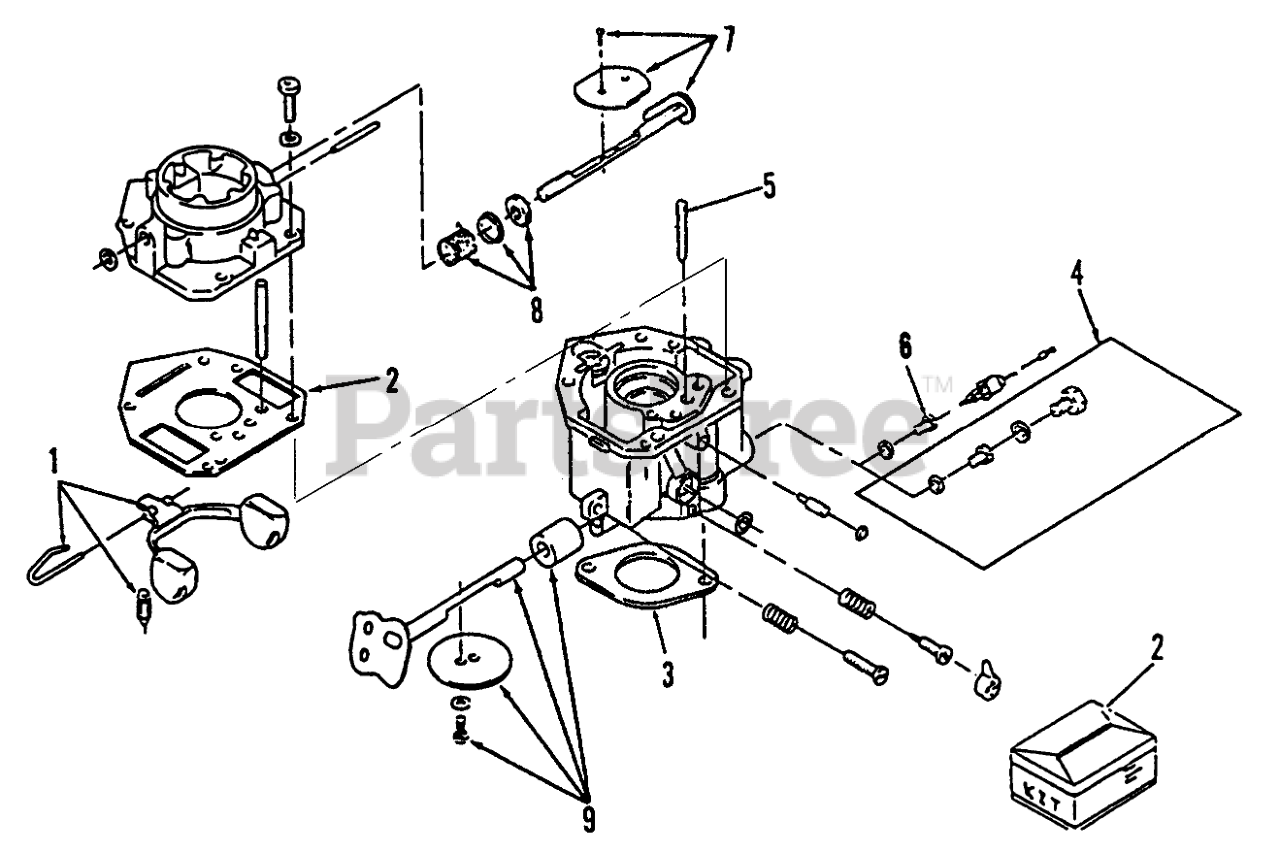

CARBURETOR Parts Diagram

  • Title

1

Toro NN10209

Kit-Float (Incl. Float, Pin, & Valve)
(Superseded to 62-2800)

$145.99

$

Usually ships in 3-6 days

0

2

Toro 82-0780

Kit-Repair (Incl. Screw & Plug Package, Gasket Package, Float Valve, Idle Adjustment Needle & Spring, Mounting Gaskets, & Idle Limit Cap)

$412.99

$

Usually ships in 3-6 days

0

3

Toro 82-0850

GASKET-CARBURETOR

$11.99

$

In Stock, only 1 left!

0

4

Toro NN10810

FIXED-JET PKG

$

$

Not available

5

Toro NN10201

Idle Jet
(Superseded to 62-2820)

$

$

Not available

6

Toro NN10199

POWER JET

$

$

Not available

7

Toro NN10207

Kit-Choke Shaft (Incl. Choke Valve, Valve Screw-Set, & Air Filter)
(Superseded to 72-3860)

$

$

Not available

8

Toro NN10809

Kit-Choke Lever (Incl. Choke Lever Ring, Choke Spring, & Choke Collar)

$114.99

$

Usually ships in 3-6 days

0

9

Toro NN10811

Kit-Throttle Shaft (Incl. Valve Screw-Set, Air Filter, & Throttle Valve)

$

$

Not available
