73420 (416-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) Fender And Supports Parts Diagram

Garden Tractor

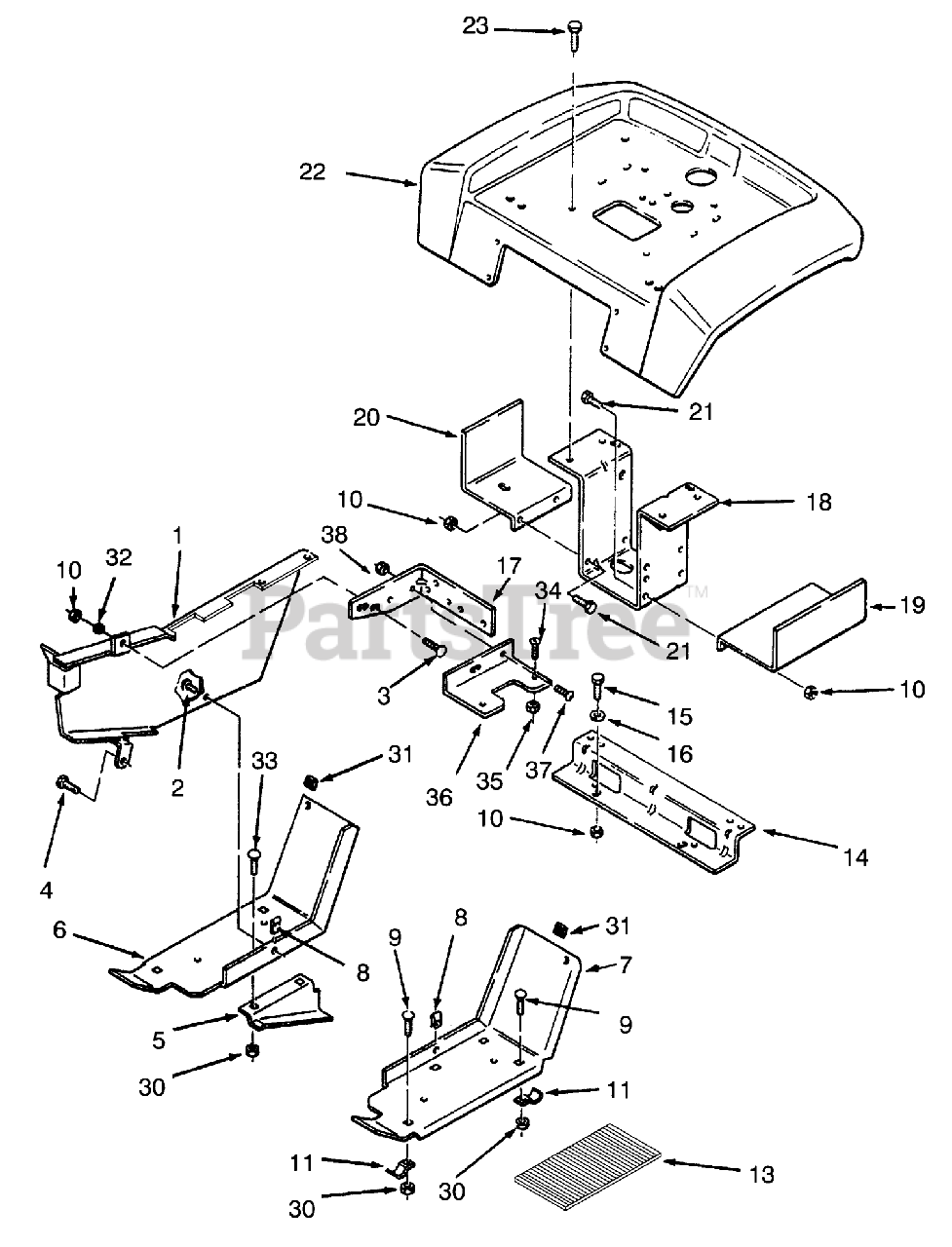

Fender And Supports Parts Diagram

  • Title

1

Toro 114877

See Supercession: 92-1527
(Superseded to 92-1527)

$

$

Not available

2

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

3

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available

5

Toro 106352

See Supercession: 106352-01
(Superseded to 106352-01)

$23.99

$

Usually ships in 3-6 days

0

6

Toro 106222

See Supercession: 106222-01
(Superseded to 106222-01)

$

$

Not available

7

Toro 106223

FOOTREST LH *R

$

$

Not available

8

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

9

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 7456

BRACKET

$

$

Not available

13

Toro 110636

PAD FOOTREST

$

$

Not available

14

Toro 107951

See Supercession: 95-7665-03
(Superseded to 95-7665-03)

$69.99

$

In Stock, only 1 left!

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

17

Toro 109554

BRACKET-BELT*B

$

$

Not available

18

Toro 79-4990

See Supercession: 79-4990-03
(Superseded to 79-4990-03)

$134.99

$

Usually ships in 3-6 days

0

19

Toro 108464

See Supercession: 108464-03
(Superseded to 108464-03)

$

$

Not available

20

Toro 106236

See Supercession: 94-6692-03
(Superseded to 94-6692-03)

$

$

Not available

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 110960

See Supercession: 94-3722-01
(Superseded to 94-3722-01)

$

$

Not available

23

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

Usually ships in 3-6 days

0

32

Toro 108457

DISCONTINUED

$

$

Not available

33

Toro 118620

See Supercession: 3230-23
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

34

Toro 9107944

SCREW-PAN

$2.99

$

Usually ships in 3-6 days

0

35

Toro 9157404

See Supercession: 3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 13

0

36

Toro 118280

BRKT-FUS HLDER*B

$

$

Not available

37

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
